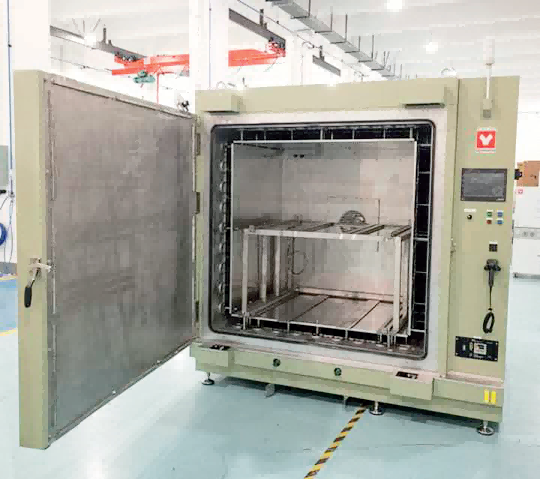

Heat Treatment Ovens(YJ-626HT)

4-sided heating inside the chamber, ensuring uniform heating of samples

Each side of the heating has a temperature sensor and overheating protection device, ensuring safety

Two heating modes

It can be operated in forced convection circulation heating at atmospheric pressure or in vacuum state for radiation heat transfer

Equipped with 5 sets of water cooling coils (upper, lower, left, right walls + rear air duct) inside the chamber for rapid cooling

Multi-layer rack can be set inside the chamber, allowing multi-layer and multi-group sample placement, highly enhancing processing capacity

Centrifugal blower shaft transmission adopts magnetic fluid seal device, providing excellent sealing performance

Adopt a rotating lock cylinder + multi-axis floating hinge structure, ensuring the door's sealing performance while reducing the labor intensity of the operator

The vacuum exhaust pipeline is equipped with a cold trap and filter, effectively protecting the vacuum pump and extending its service life

The cold trap is equipped with a liquid level gauge, allowing observation of the waste liquid amount, facilitating maintenance

Multiple cooling pipelines are equipped with flow adjustment and detection, ensuring stable operating conditions of key components such as the vacuum pump and magnetic fluid sealing device

The water leak sensor ensures safety in use, preventing greater loss

The back panel is equipped with an oversized viewing window, facilitating the observation of various valve actions and various pressure and flow values

Pre-installed with 10 temperature sensors inside the chamber, allowing real-time monitoring of sample temperatures

Reserved temperature sensor sockets facilitate connection to temperature recording equipment

The barcode scanner enables quick identification of samples, process programs, etc

, preventing misoperation
