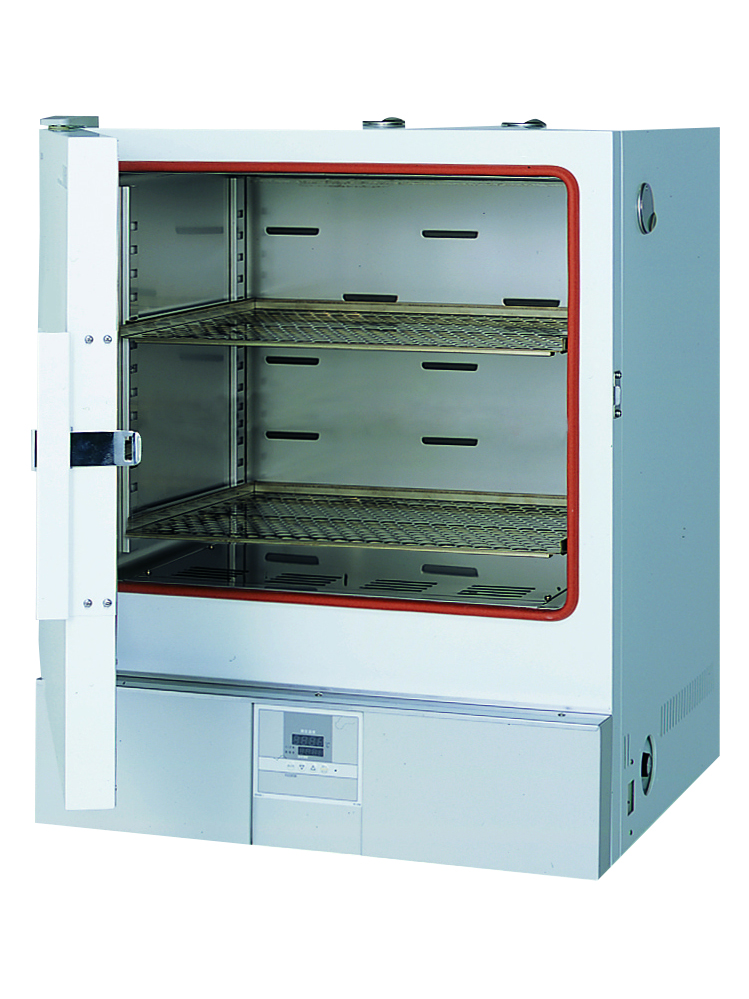

Economical Forced Convection Oven

Economical Forced Convection Oven(DKM600)

Item Code：212878

Model：DKM600

Power Source：AC220V7ASingle phase

Origin：Japan

Product Summary

Basic fixed setting forced air convection ovens

Features

Specifications

Item Code

212878

Model

DKM600

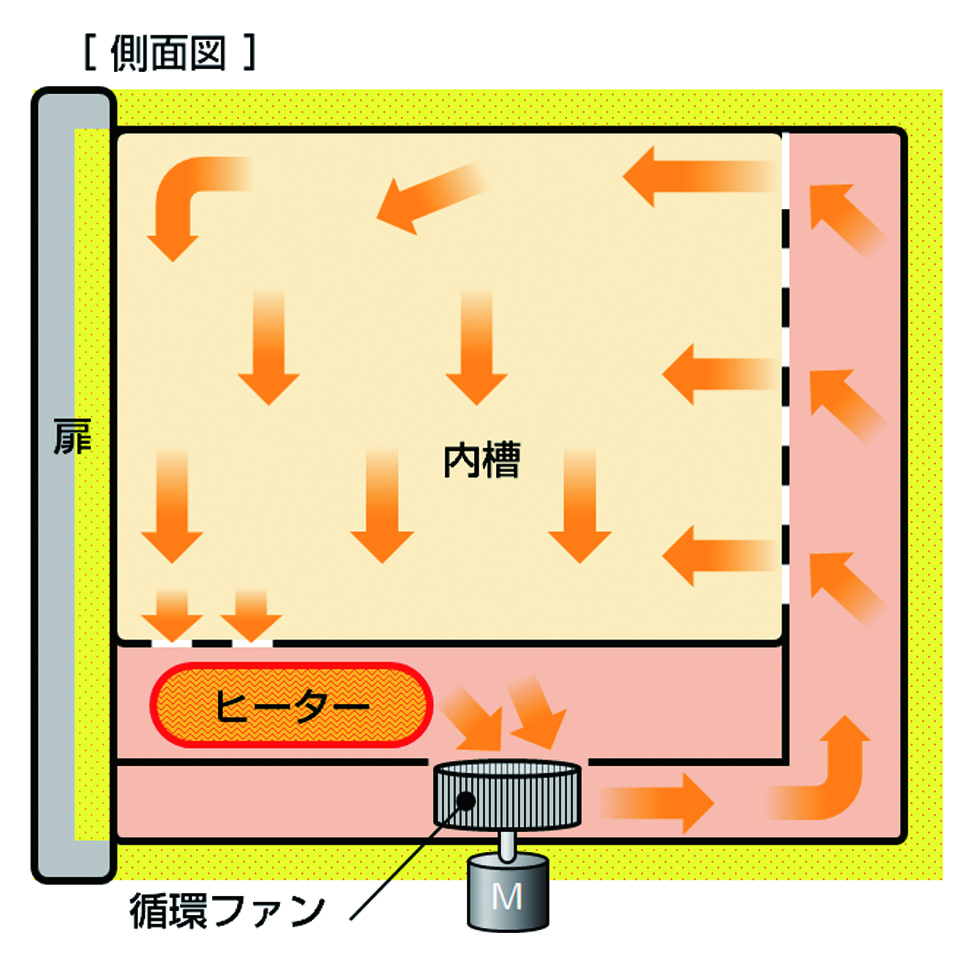

Circulation method

Forced air circulation

Operating temperature range

Room temp. +10~260°C

Temp. adjustment accuracy

±1°C (at 210°C)

Temp. distribution accuracy

±2.5℃（at 210℃）

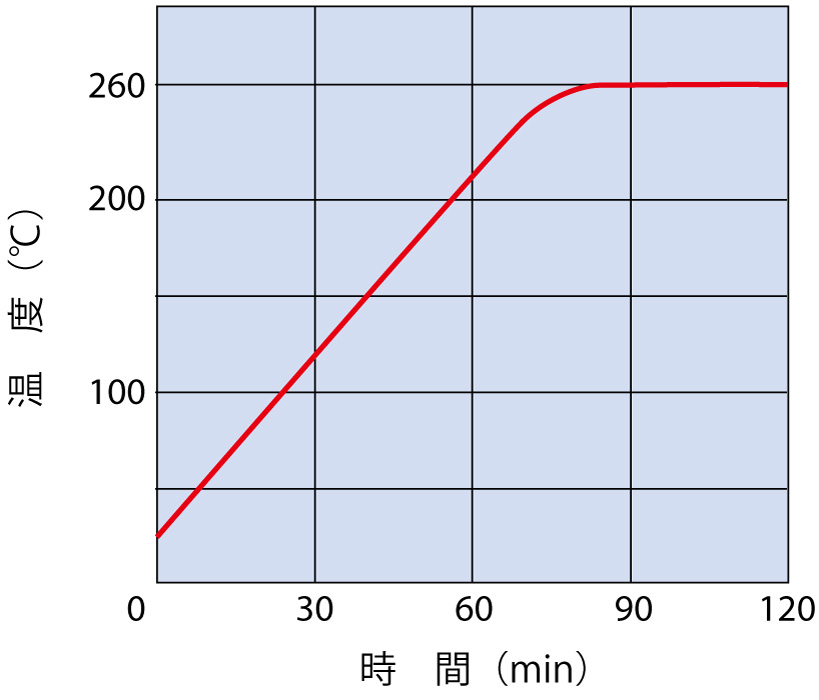

Max. temp. reaching time

Approx. 90 min. (at room temp. +10°C~260°C)

Interior material

Stainless Steel

Exterior material

Cold rolled steel plate with melamine resin baking finish

Heat insulating material

Glass wool

Heater

SUS pipe heater

Heater

1.34kW

Fan type / Motor

Scirocco fan / Condenser type motor

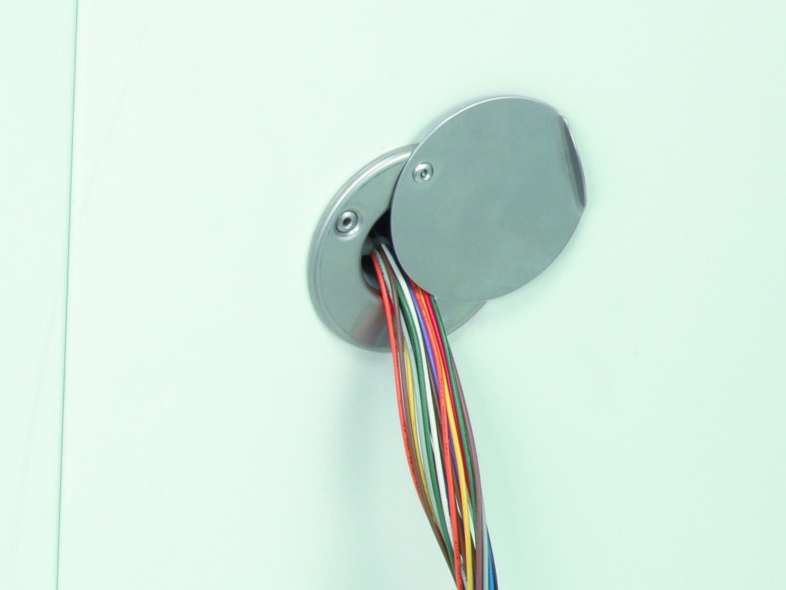

Cable port

30 mm l.D.×1 pc. (right side)

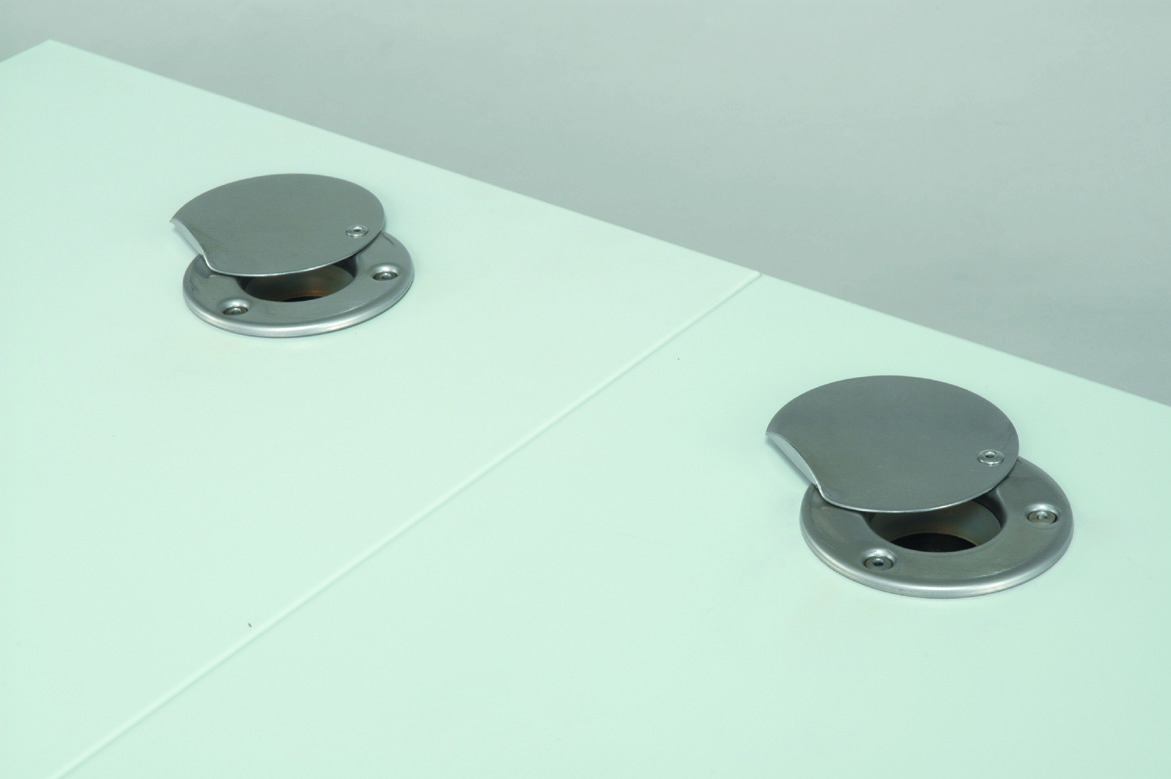

Exhaust port

30 mm l.D.×2 pcs.(the top)

Temp. controller

PlD control by microprocessor

Temp. setting method

Operation menu key and digital setting by UP/DOWN key

Temp display method

Measurement temp. : Digital display by green LED　Setting temp. : Digital display by red LED

Timer

1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min. (with time wait function)

Operation functions

Fixed temperature operation, Quick Auto-stop, Auto start, Auto stop

Additional functions

Calibration off-set function, Key lock, Uninterruptible power for memory

Heater circuit control

SSR control

Sensor

K-thermocouple

Safety device

Self diagnostic functions (Sensor trouble detection, Memory error, Measured temperature lower limit error, Measured temperature error), Auto overheat prevention, Independent overheat prevention.

Shelf plate with standard load

15kg/pc.

Shelf support step number

13 steps

Shelf support pitch

30mm

Shelf plate

Stainless steel

Shelf plate

2 pcs.

Shelf support

4 pcs.

Internal dimensions（W×D×H mm）

600×500×500mm

Remarks(dimensions)

150L

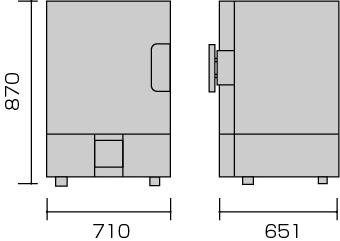

External dimensions（W×D×H mm）

710×651×870mm

Power Source

AC220V7ASingle phase

Weight

65kg

Catalog

Forced convection oven, Economy

Digest Catalog of Drying Oven

Optional Items

Stand(ON61)

Stainless punching metal shelf()

Stacking support(OD60)

Seismic isolation rubber()

Cable port(ODK34)

Cable port(ODK32)
