Economical Forced Convection Oven

Economical Forced Convection Oven(DKM400)

Item Code：212877

Model：DKM400

Power Source：AC220V6ASingle phase

Origin：Japan

Product Summary

Basic fixed setting forced air convection ovens

Features

Forced convection, constant temperature oven with simple operation functions.

Fixed temperature, Quick Auto stop, Auto stop, and Auto start operating modes are possible, along with easy control capabilities

Settings can be made digitally using the dedicated operation menu keys or the up and down keys

Auto recovery after power failure, calibration offset and key-lock are possible through the auxiliary functions

Self-diagnostic functions, Auto overheat prevention, Independent overheat prevention

Specifications

Item Code

212877

Model

DKM400

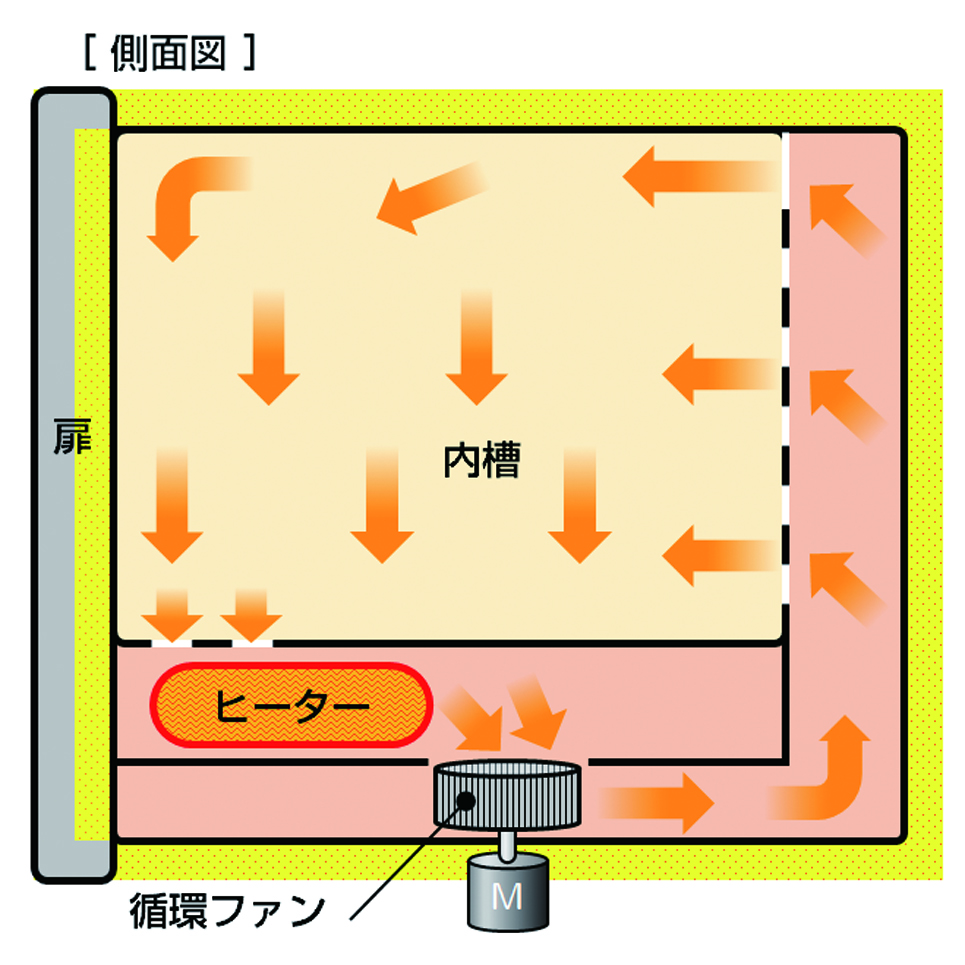

Circulation method

Forced air circulation

Operating temperature range

Room temp. +10~260°C

Temp. adjustment accuracy

±1°C (at 210°C)

Temp. distribution accuracy

±2.5℃（at 210℃）

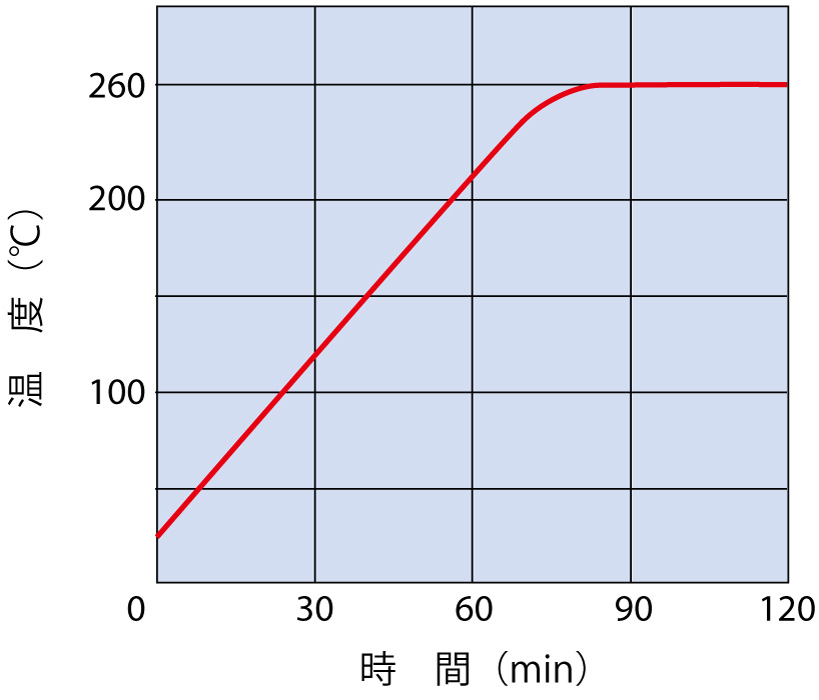

Max. temp. reaching time

Approx. 90 min. (at room temp. +10°C~260°C)

Interior material

Stainless Steel

Exterior material

Cold rolled steel plate with melamine resin baking finish

Heat insulating material

Glass wool

Heater

SUS pipe heater

Heater

1.2kW

Fan type / Motor

Scirocco fan / Condenser type motor

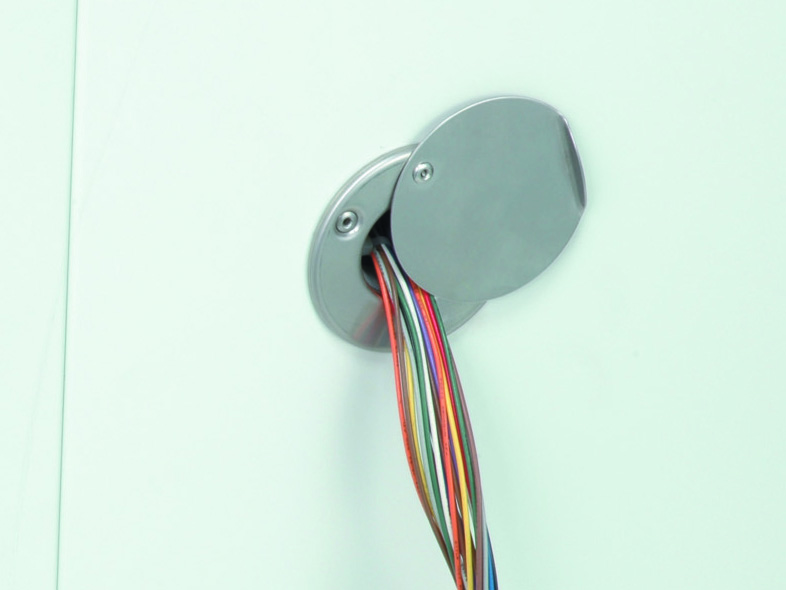

Cable port

30 mm l.D.×1 pc. (right side)

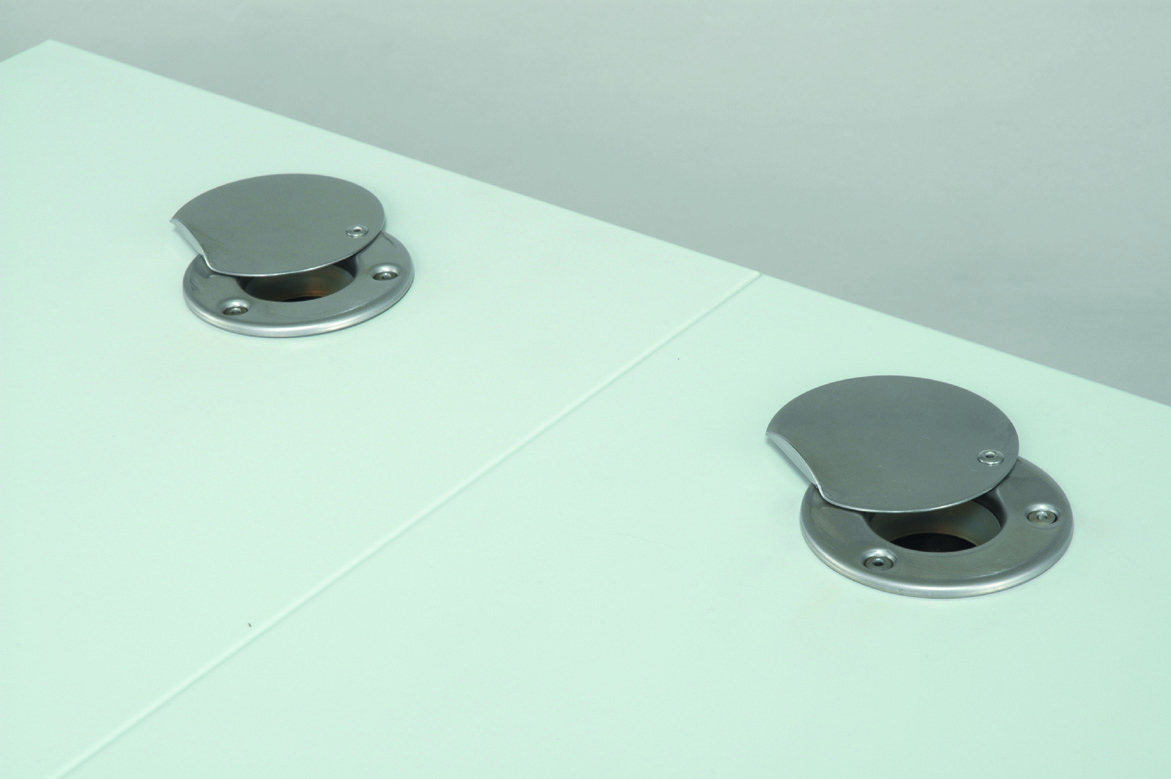

Exhaust port

30 mm l.D.×2 pcs.(the top)

Temp. controller

PlD control by microprocessor

Temp. setting method

Operation menu key and digital setting by UP/DOWN key

Temp display method

Measurement temp. : Digital display by green LED　Setting temp. : Digital display by red LED

Timer

1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min. (with time wait function)

Operation functions

Fixed temperature operation, Quick Auto-stop, Auto start, Auto stop

Additional functions

Calibration off-set function, Key lock, Uninterruptible power for memory

Heater circuit control

SSR control

Sensor

K-thermocouple

Safety device

Self diagnostic functions (Sensor trouble detection, Memory error, Measured temperature lower limit error, Measured temperature error), Auto overheat prevention, Independent overheat prevention.

Shelf plate with standard load

15kg/pc.

Shelf support step number

11 steps

Shelf support pitch

30mm

Shelf plate

Stainless steel

Shelf plate

2 pcs.

Shelf support

4 pcs.

Internal dimensions（W×D×H mm）

450×450×450mm

Remarks(dimensions)

90L

External dimensions（W×D×H mm）

560×601×820mm

Power Source

AC220V6ASingle phase

Weight

50kg

Catalog

Forced convection oven, Economy

Digest Catalog of Drying Oven

Optional Items

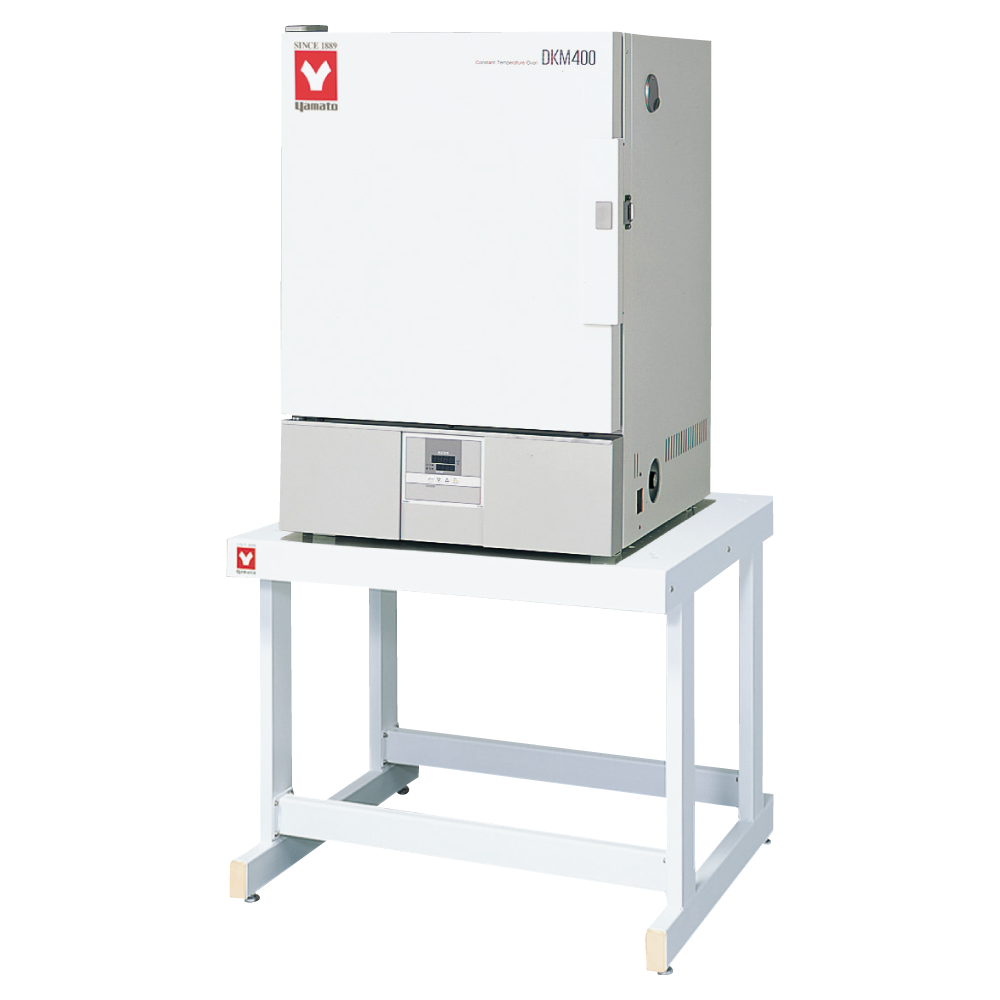

Stand(ON61)

Seismic isolation rubber()

Stacking support(OD40)

Stainless punching metal shelf()

Cable port(ODK34)

Cable port(ODK32)
