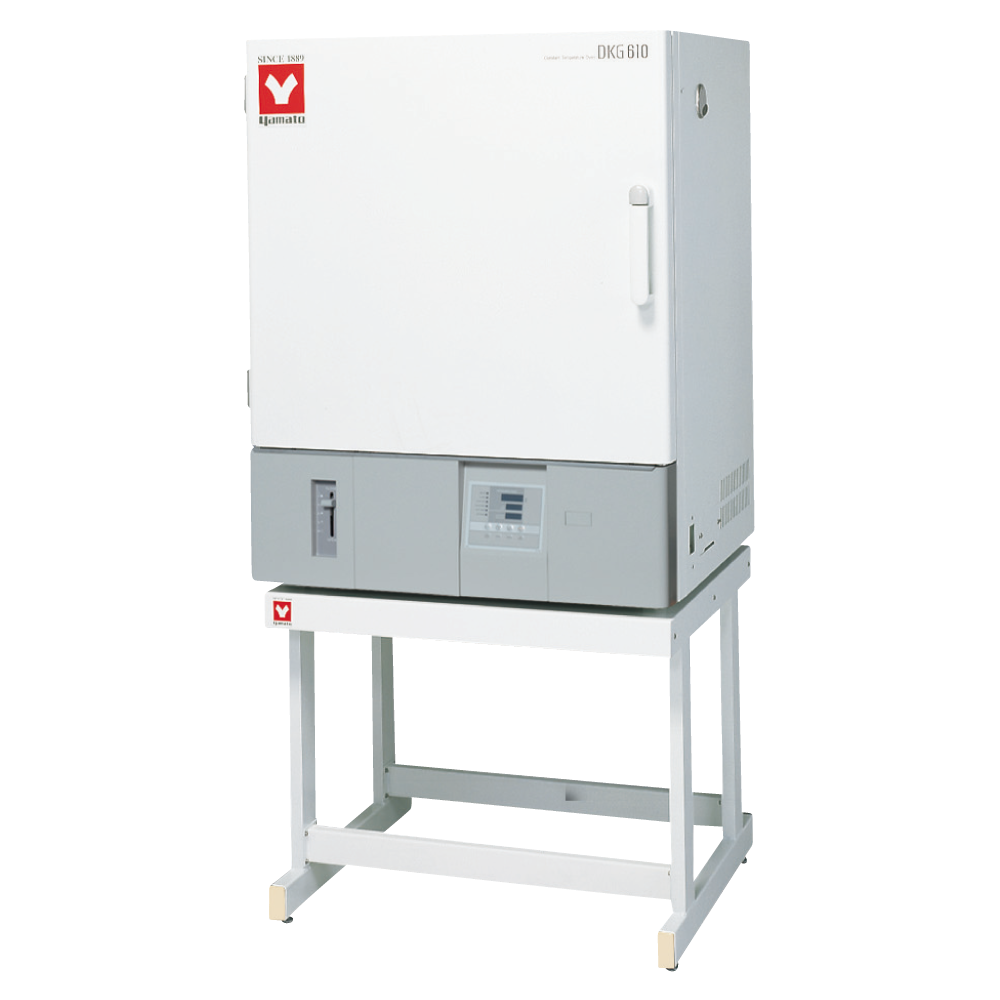

Industrial Forced Convection Oven (Silicorn/Fluoro-rubber Gasket)

Industrial Forced Convection Oven (Silicorn/Fluoro-rubber Gasket)(DKG610V)

Item Code：212885

Model：DKG610V

Power Source：AC200 to 220V13.5-15ASingle-phase

Origin：Japan

Product Summary

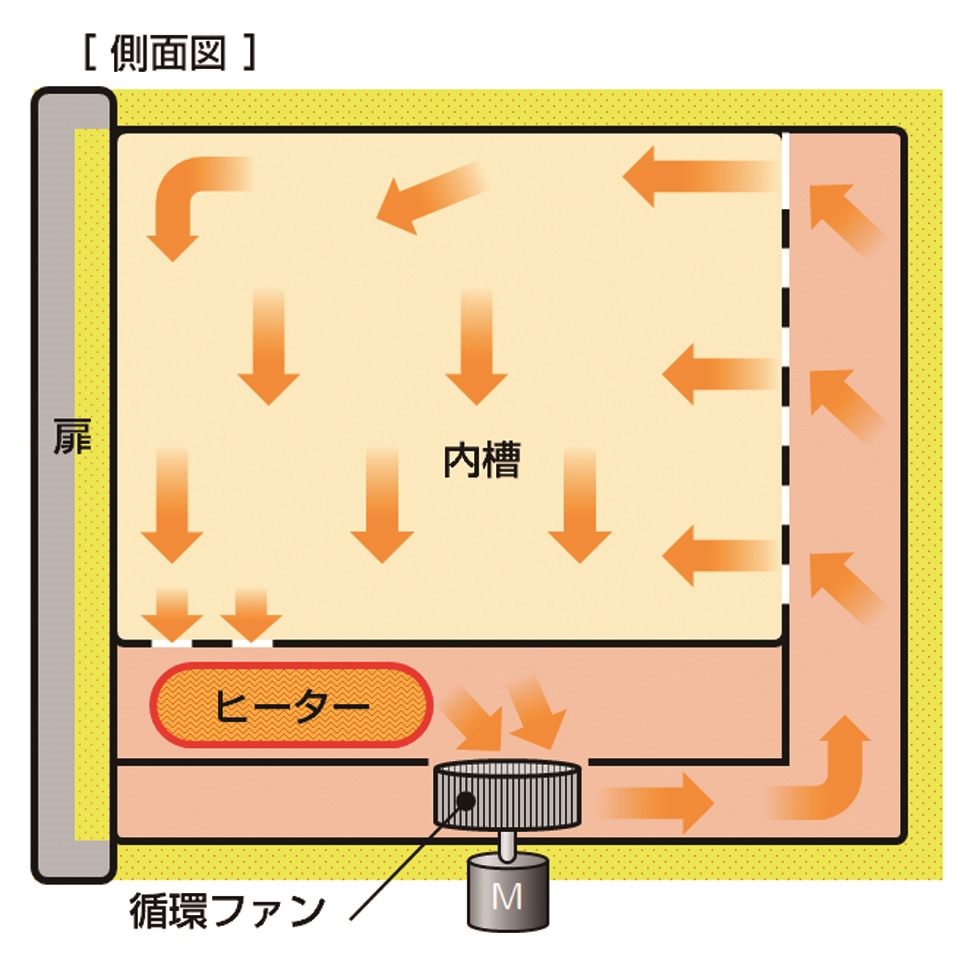

Reduced heating time to 1/2.5, cooling time to 1/4 (compared with conventional company products), horizontal air flow appropriate for loaded operation, the standard oven for production lines supporting multi power supplies. The product lineup includes a silicon free type.

Features

Specifications

Item Code

212885

Model

DKG610V

Method

Forced convection

Operating temperature range

Room temp. +30°C to 260°C

Temp. adjustment accuracy

±0.5℃

Temp. distribution accuracy

±2℃（at 200℃）、±2.5℃（at 260℃）

Time to attain max. temp.

Within 45min. from 25°C ->260°C

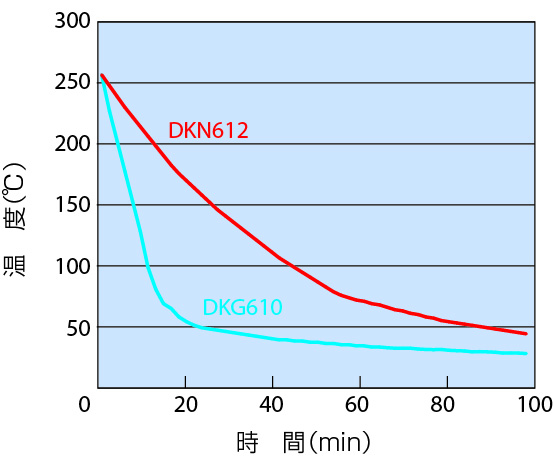

Temp. decrease time

About 30min. from 260°C ->50°C

Air supply/exhaust damper

Front operation/manual damper Air supply pipe/exhaust pipe at the rear NSSC180 With exhaust duct

Interior/exterior

Stainless steel plate/chrome free electro galvanized steel plate Chemical proof baking finish

Heater and heat insulator

SUS pipe heater & glass wool

Heater capacity

200 to 220V 2.6 to 3.15kW

Blower fan

Sirocco fan×1

Fan motor

Condenser type motor × 1pc

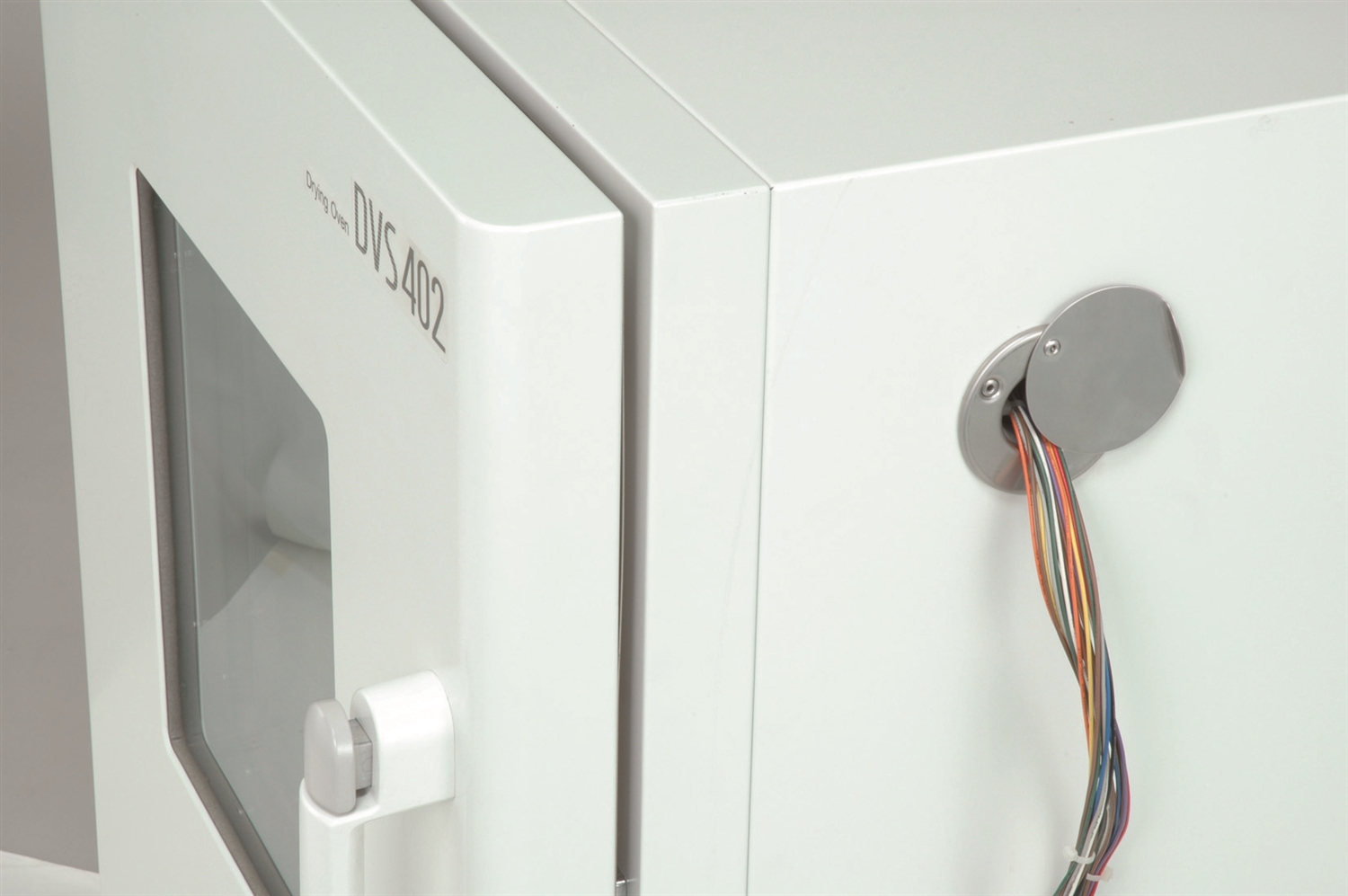

Cable port

I.D.: 30mm One at the right side of the main body

Door packing

Fluororubber

Air supply port

Bottom of heater room (Open/Close with a manual damper)

Damper control

Linked air supply / Exhaust with manual knob on the front of the main body

Exhaust port

Upper part of rear of the main body: φ80 (Open / Close with a manual damper)

Heater control

SSR control

Sensor

K-thermocouple (for temp. adjustment, Indivisual overheating prevesion)

Safety unit

Self diagnostic function (Temperature sensor error, Heater disconnection, SSR short-circuit, Automatic overheat prevention function), Key lock,

Safety unit

Program lock, Overheat preventive device, Over current electric leakage breaker, Door switch, Temperature fuse, External alarm terminal

Internal dimensions（W×D×H mm）

600×500×500mm

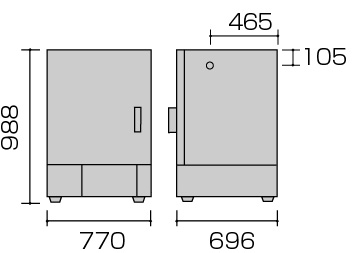

External dimensions（W×D×H mm）

770×696×985mm

Withstand load of shelf

15 kg / pc.

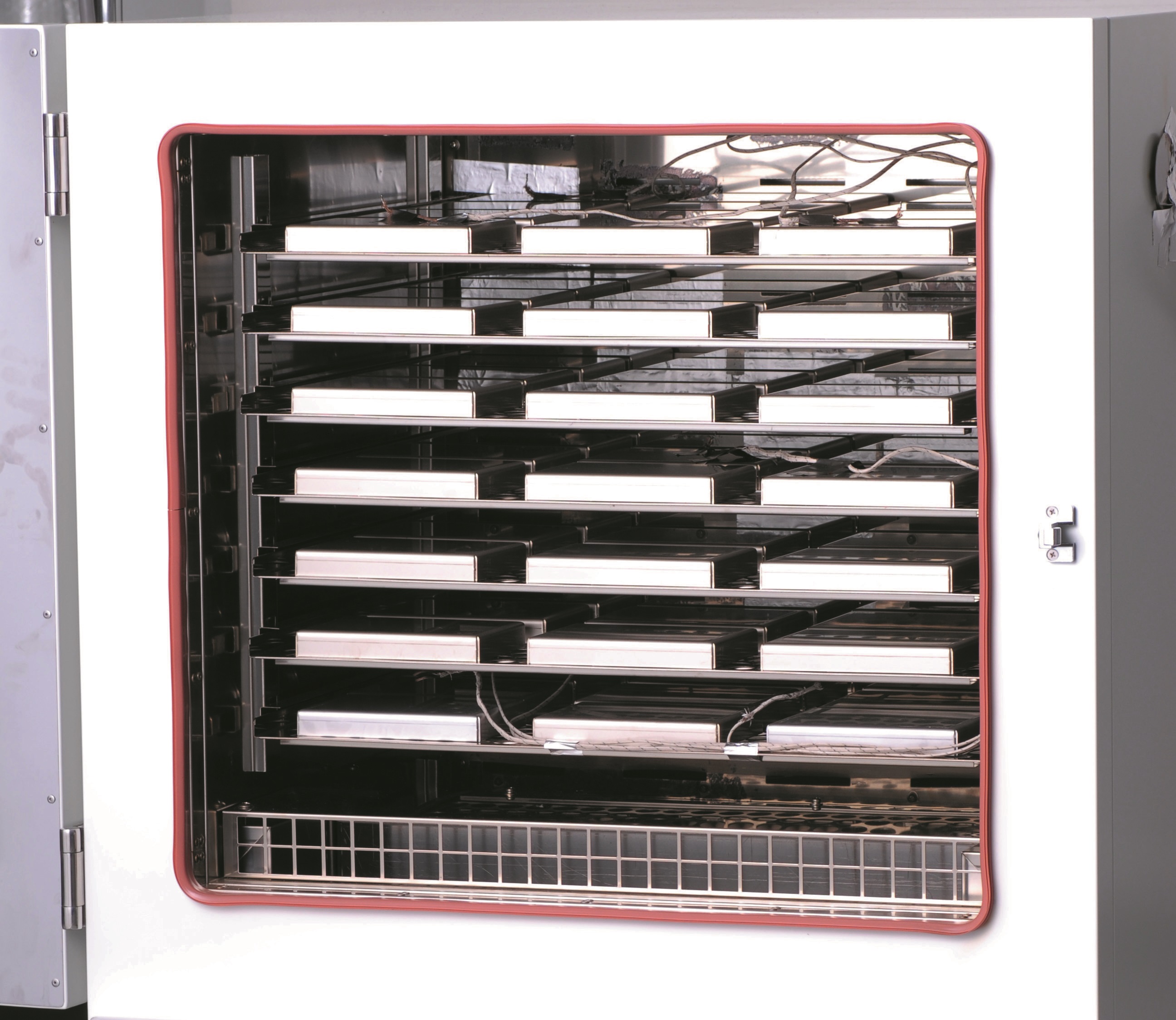

Shelf support step number

7 steps

Shelf support pitch

60mm

Accessories Shelf

2 pcs.

Accessories Shelf support

4 pcs.

Power Source

AC200 to 220V13.5-15ASingle-phase

Weight

110kg

Remarks(dimensions)

150L

Catalog

Oven, Industrial

Optional Items

Stainless punching metal shelf()

Cable port(ODK22-1)

Cable port(ODK23-1)

Stand(ON62)

Temperature output terminal (4-20 mA)(ODK24-1)

External communication function (RS485)(ODK25-1)

External communication adapter(O281563)

Independent overheat prevention device(ODK27-1)

Automatic damper(for DKG)
