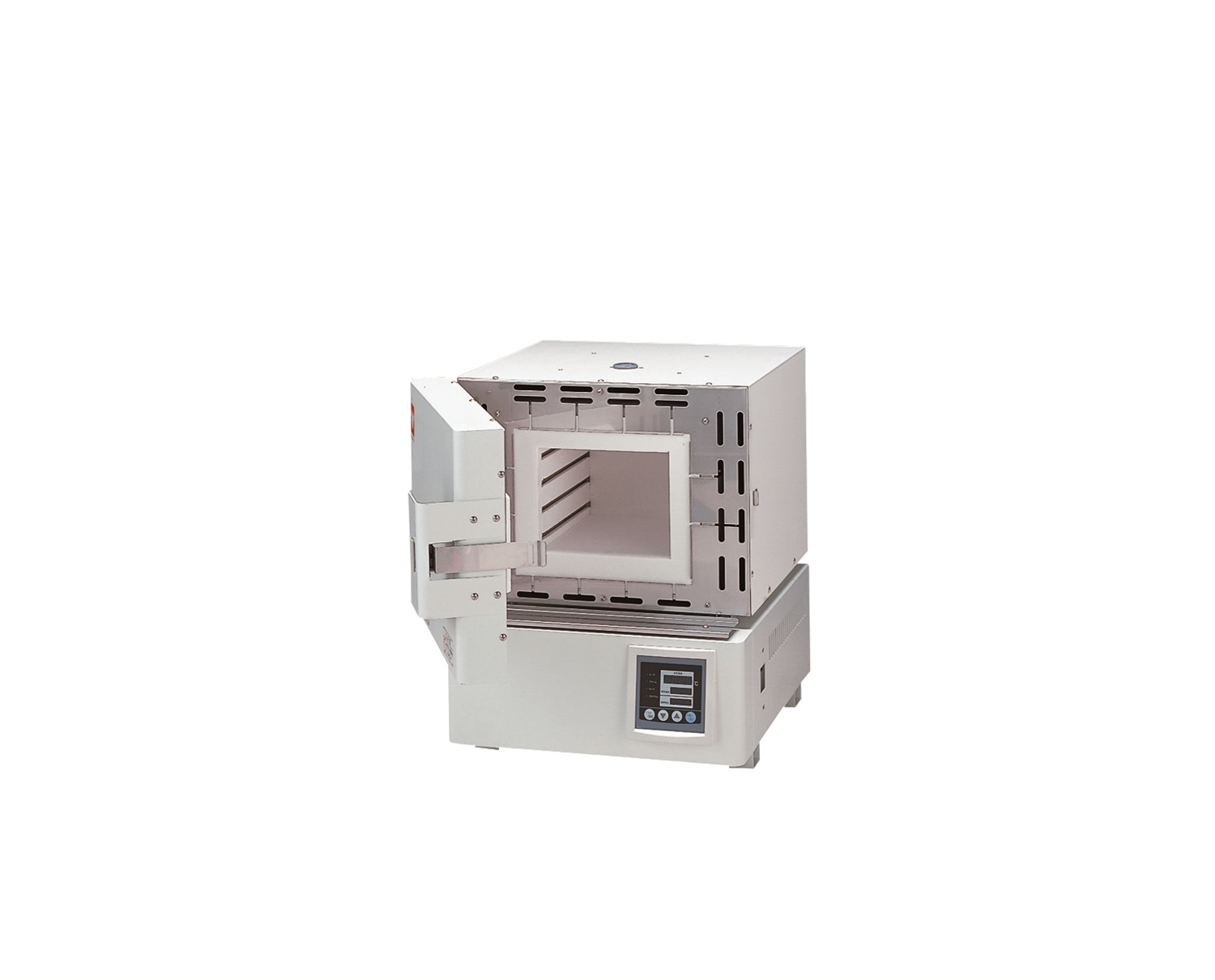

Standard Electric Furnace

Standard Electric Furnace(FO610)

Item Code：214121

Model：FO610

Power Source：AC220V15ASingle-phase

Origin：Japan

Product Summary

8 types of internal capacity are available, with program operation function

Features

Able to do program operation

Easier up/down key setting, equipped with the controller ofgood operation performance to realize the high precision of temp. control.

Digital representation of setting temp., time and indicator value.

Use the controller of digital set and overheat proection, in the event of abnormality it has safety controls such as self diagnosis and overcurrent ELB.

The temp. sensor applies R-thermocouple with long service life.

Equipped with exhaust port.

It also has optional functions like air exhaust device, sample tray, N2 introduction device (attached with flowmeter), temp. output terminal, etc..

Specifications

Item Code

214121

Model

FO610

Operating temp. range

100 to 1,150℃

Temp. control accuracy

±2.0℃（at 1,150℃）

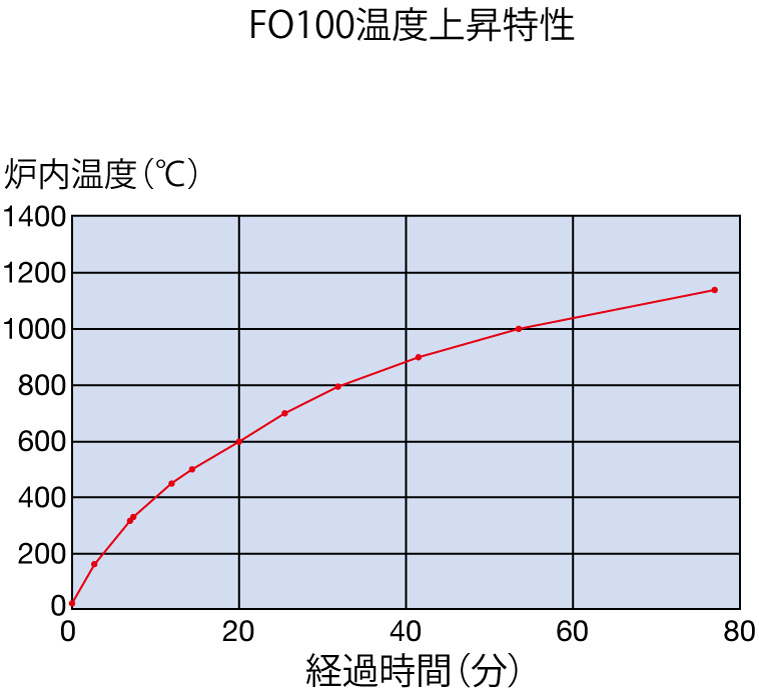

Max. temp. reaching time

Approx. 80min.

Exterior material

Cold rolled steel plate with baked-on melamine resin finish

Internal material

Ceramic fiber

Sensor

R-thermocouple

Heater

Iron-chrome wire

Heater

3kW

Exhaust port

20 mm I.D. (upper part)

Cooling Fan Type

Axial fan motor

Temp. controller

PID control by microprocessor

Temp. setting/display method

Digital setting by▲/▼ keys / Digital display

Overheat protection

Integrated controller

Overheat protection set

Digital setting

Operation function

Fixed temp., program (6 modes 30 seg.×1, 15 seg.×2, 10 seg.×3)

Additional function

Calibration off-set, Power outage compensation

Timer

1min to 99hr59min and 999hr 50min digital setting, Auto start, Quick auto stop

Safe Device

Self diagnosis circuit (Abnormal temp. sensor, Auto overheat protection), Averheat protector, Avercurrent ELB

Accessories

Exhaust port cap 1 pc.

Internal dimensions（W×D×H mm）

250×350×205mm

External dimensions（W×D×H mm）

507×604×677mm

Remarks(dimensions)

17.5L

Power Source

AC220V15ASingle-phase

Weight

52kg

Catalog

Furnace, Standard

Optional Items

Exhaust unit, AC200V(OFP38)

Sample Tray(OFP22)

Time-up output terminal(OFO30)

Temp. output terminal（4-20mA）(OFO40)

N2 gas inlet system with flow meter(OFP12)
