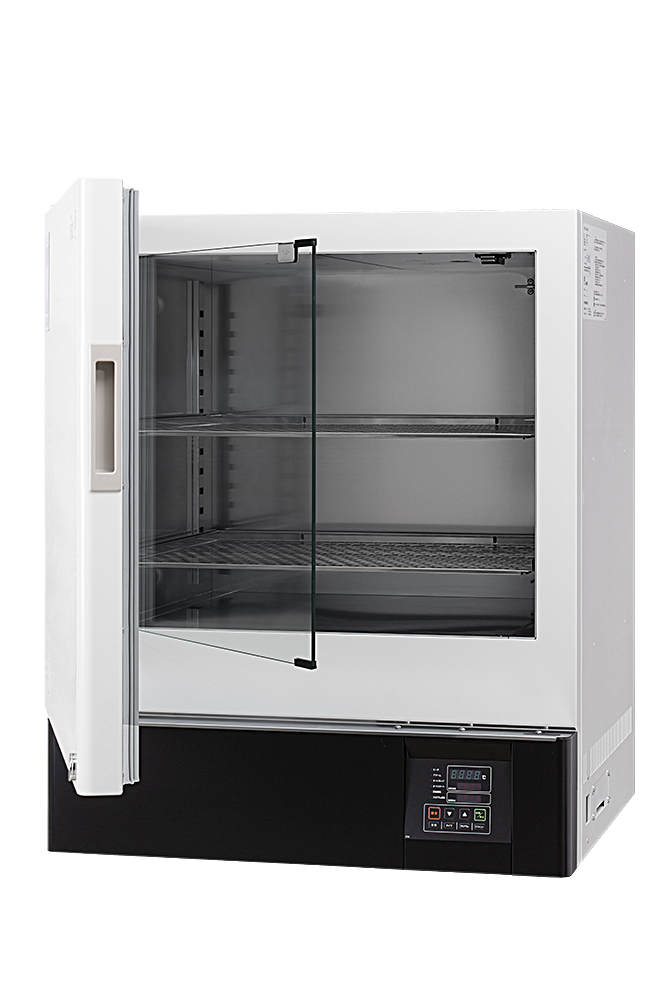

Incubator (Natural Convection, Air Jacket)

Incubator (Natural Convection, Air Jacket)(IS402)

Item Code：212555

Model：IS402

Power Source：AC115V/AC220V50/60Hz, Single phase

Origin：Japan

Product Summary

Incubators of natural convection by air-jacket, equipped with various functions

Features

Air Jacket and Natural Convection, Fix temperature opration, Quick auto stop, Auto stop, Auto start operation are available

6 patterns (10~30 steps) programming are available

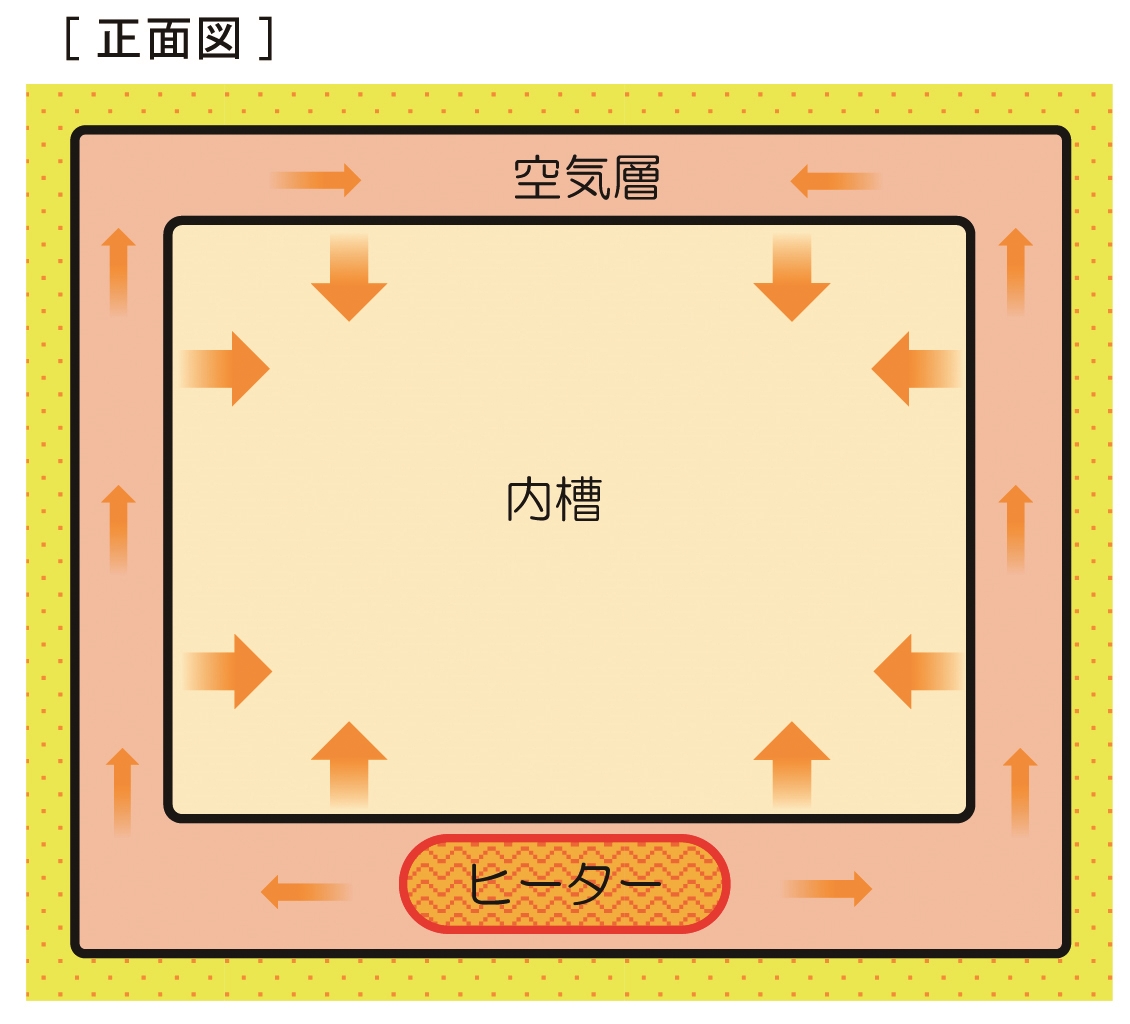

The air-jacket method makes it possible to obtain uniform temperature distribution

Sample can be observed through the inner door

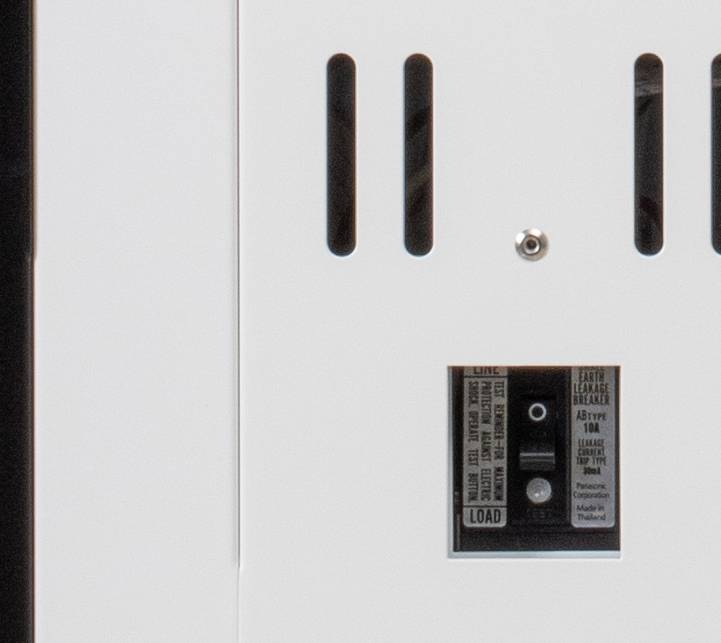

Equipped with self-diagnosis function, a key-lock function and an over-current breaker

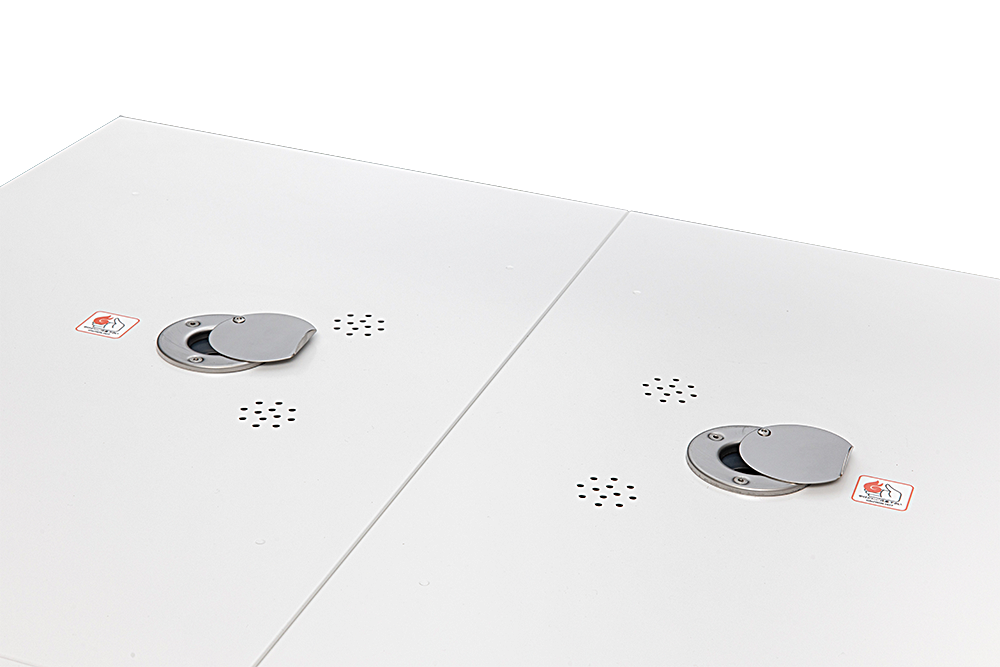

Possible to place the models IS402/602 in piles, one over the other

Various expanded function due to external communication function, temperature output terminal

The operation before power failure can be resumed

Specifications

Item Code

212555

Model

IS402

Type

Air Jacket Type, Natural Convection

Temperature range

Room Temp. +5～80℃

Temp. Adjustment Accuracy

JTM K05 ±0.2℃ at 37℃

Temp. Distribution Accuracy

JTM K05 ±1.0℃ at 37℃

Time required to reach 60℃

Approx. 70 min.

Interior

Stainless Steel

Exterior

Chrome-free electrogalvanized steel sheet baking finish

Heater

Iron-chrome Wire Heater, 0.3kW

Exhaust Port

30mm ID x 2 (on the top)

Inner Glass Window

Reinforced Glass 5mm t

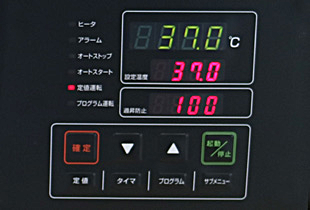

Temp. Controller

PID control by microprocessor

Temp. Setting Method

Digital Setting by ▼▲ Key

Temp. Display

Digital Display by LED

Timer

0 to 99hrs 59min. and 100 to 999.5 hrs

Timer Resolution

1min. or 10min.

Operation Function

Fixed Temp., Program Operation, Quick Auto-stop Operation, Auto-stop Operation, Program auto-start

Program Mode

Program Operation 6 patterns, 10~30 steps, Repeat Function

Additional Function

Calibration Offset Function, Key-lock Function, Blackout Recovery Function

Temp. Sensor

Pt100 / K-Thermcouple

Safety Device

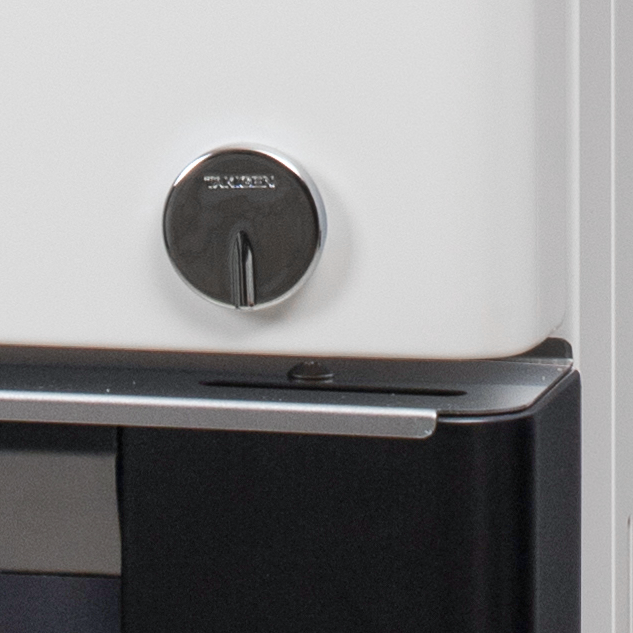

Self Diagnostic Function（Automatic Overheat Prevention, Abnormal Temp. Sensor, Heater Disconnection, SSR Short Circuit, Main Relay Error）, Overheat Preventor, Overcurrent ELB, Key-lock Function, Door Key

Shelf Loading Capacity

Approx. 15kg/shelf

Shelf support step number/Pitch

Max. 11 steps / 30mm

Shelf/ Support

2 shelves/ 4 supports

Internal dimensions（W×D×H mm）

450×480×450mm

External dimensions（W×D×H mm）

560×606×820mm

Remarks(dimensions)

97L

Power Source

AC115V/AC220V50/60Hz, Single phase

Weight

55kg

Accessories

Door key (2 pcs)

Catalog

Incubator

Optional Items

Stand(ON61)

Seismic isolation rubber()

Stacking support(OD40)

Stainless punching metal shelf()

External communication adaptor (RS485-USB)(OA017)

External communication terminal (RS485)(OA001)

External alarm output terminal(OA002)

Time-up output terminal(OA003)

Temperature output terminal (4 - 20mA)(OA004)

Cable port(ODK34)

Cable port(ODK32)
