Glassware Drying Oven

Glassware Drying Oven(DG801)

Item Code：212142

Model：DG801

Power Source：AC115V/AC220V50/60Hz, Single phase

Origin：Japan

Product Summary

Easy-operational and highly acclaimed Glassware drying oven.

Features

Use a big observation window for easy observation.

Many labwares can be dried at one time which can be safe kept or used after drying.

The chamber heater is stainless steel heating pipe with a water pan at the bottom

The interior is made of stainless steel, easy to keep clean.

Self-diagnosis function, overcurrent ELB, independent overheat protector

Specifications

Item Code

212142

Model

DG801

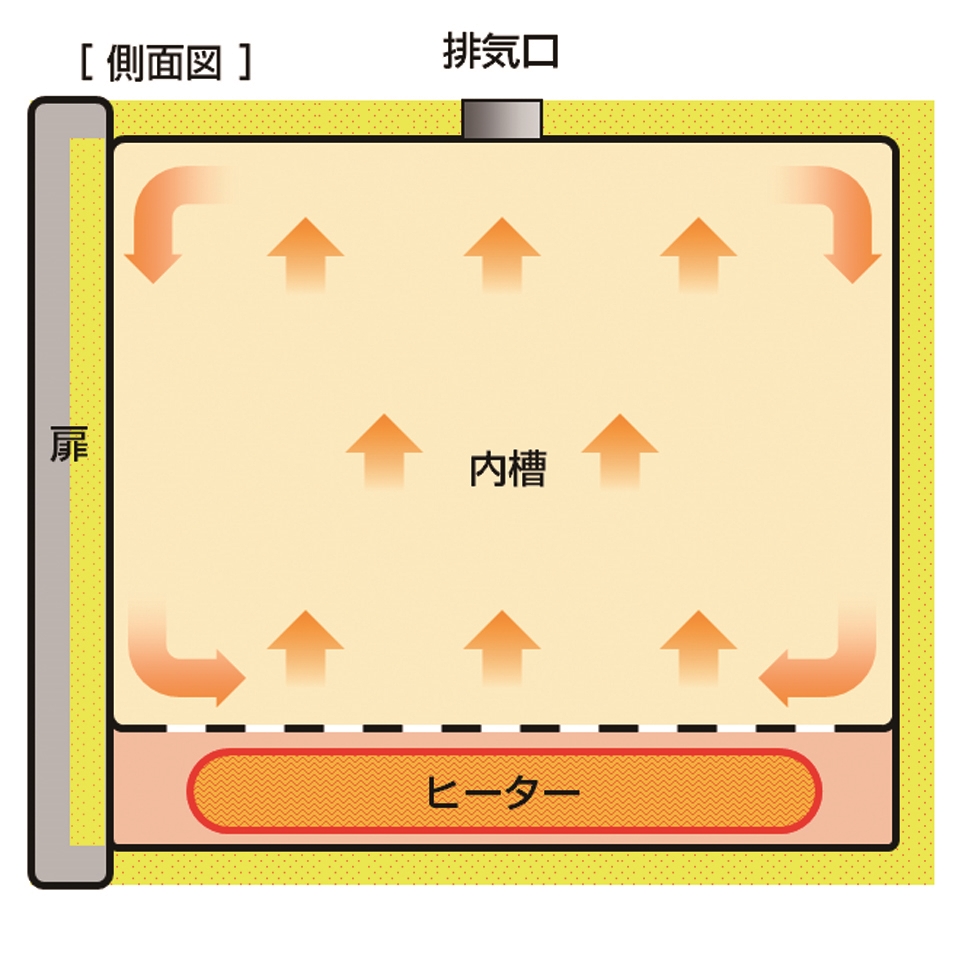

Method

Natural convection

Operating temperature range

RT＋5 to 70℃

Interior material

Stainless steel, SUS304

Exterior

Cold rolled steel plate with chemical proofing coating

Heater

Stainless steel pipe heater

Heater

1200 W

Observation window (W×Hmm)

300×800

Exhaust port

2 pcs

Germicidal lamp

—

Temp. control

PID control

Operation function

Fixed temp., Quick auto stop, Auto start, Auto stop operation

Additional function

Calibration offset, Key lock, Power outage compensation

Sensor

K thermocouple

Safety device

Self-diagnosis function, Independent overheat protector, Overcurrent ELB

Shelf plate with standard load

15kg / piece

Shelf support step number/pitch

29 steps / 30mm

Shelf plate

Stainless punching metal, 4 pcs

Shelf bracket

8 pcs

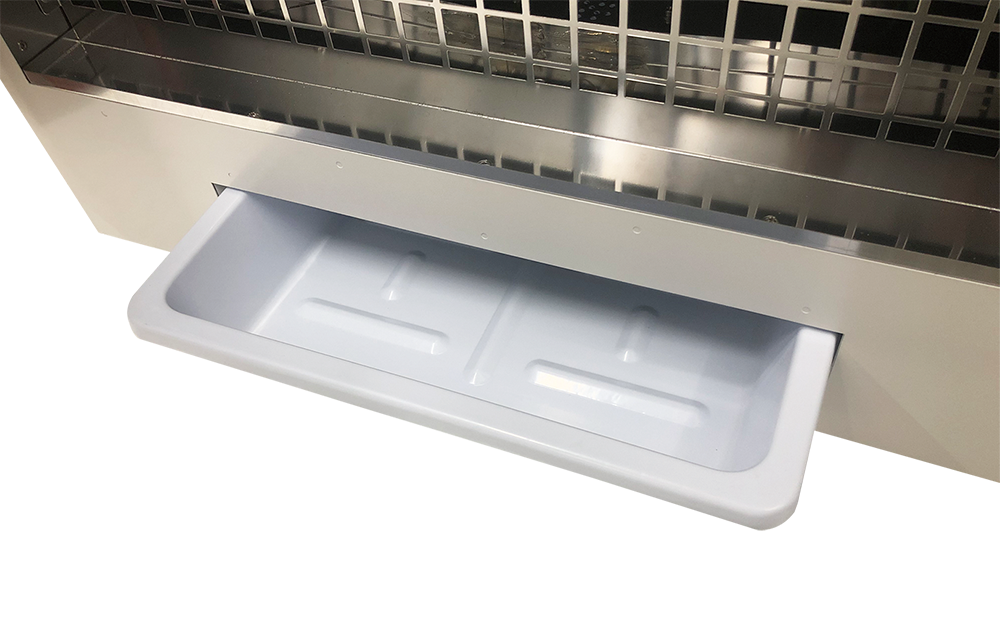

Water pan

1 pc

Internal dimensions（W×D×H mm）

620×620×1195mm

External dimensions（W×D×H mm）

674×711×1586mm

Remarks(dimensions)

460L

Power Source

AC115V/AC220V50/60Hz, Single phase

Weight

95kg

Catalog

Glassware drying oven

Optional Items

Seismic isolation rubber()

Stainless punching metal shelf(ODG10)

Adjuster fixing material(OA018)
