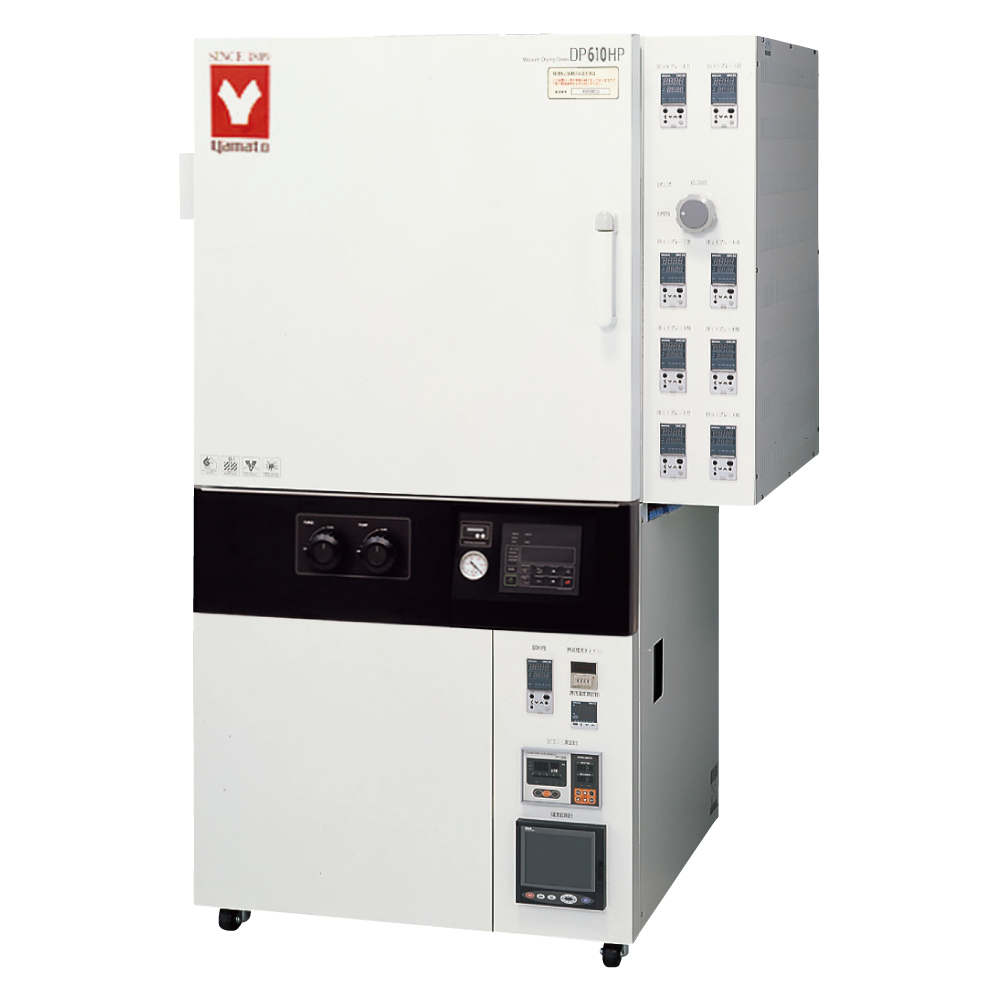

Vacuum Drying Oven, Shelf heater type

Vacuum Drying Oven, Shelf heater type(DP610HP)

Item Code：DP610HP

Model：DP610HP

Power Source：AC220 V/ AC380VThree phase 50/60Hz with step-down transformer

Origin：Japan

Product Summary

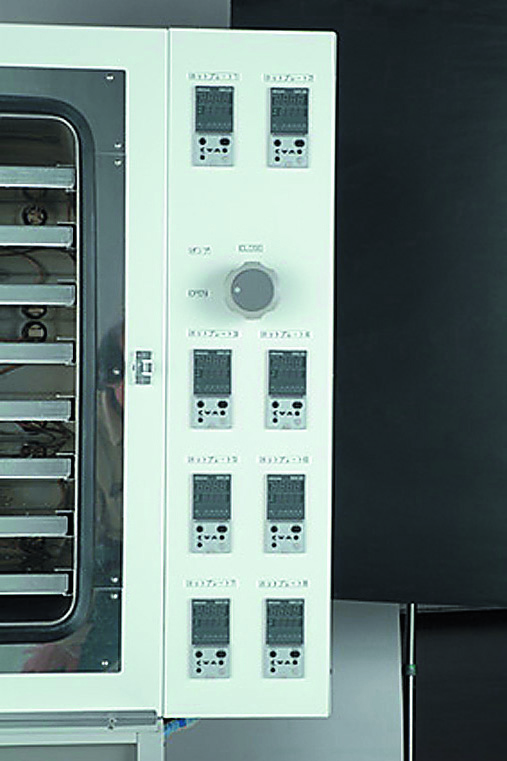

Temperature control is possible individually in 8 stages, uniform temperature processing even in vacuum

Features

Specifications

Item Code

DP610HP

Model

DP610HP

Method

Decompression chamber & shelf heating

Operating temperature range

40 to 200 degree

Operating pressure range

101 to 0.1kPa

Interial material

Stainless steel

External material

Chrome-free electric galvanized steel plate with baked-on coating

Door

Single swing door

Door packing

Viton packing

Heat insulating material

Rock wool

Heating method

Shelf heating + rediation heating

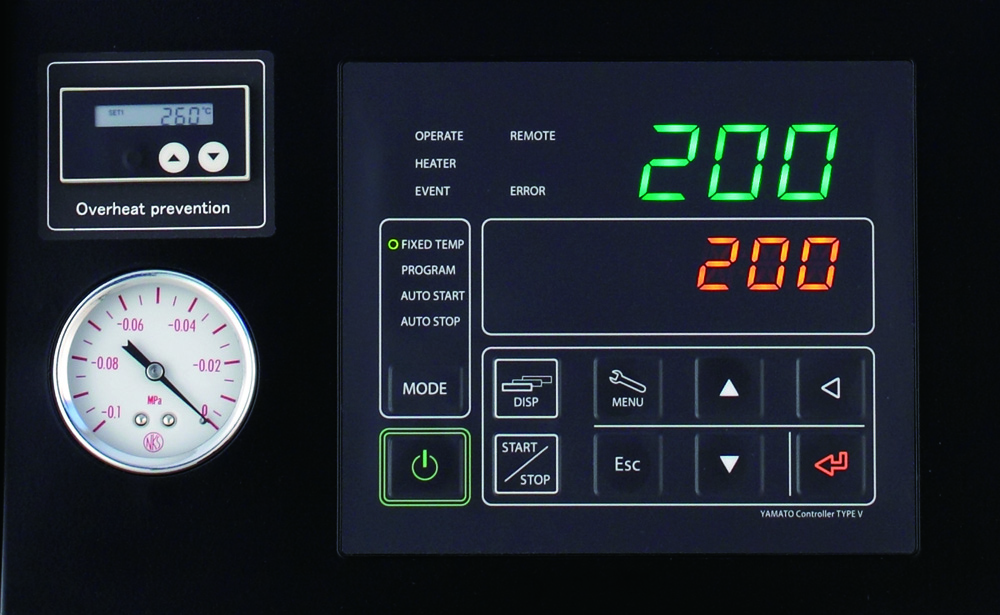

Operation function

Fixed temperature operation, auto-start operation, auto-stop operation, quick auto-stop operation, Program operation

Heater circuit control

Triac zero-cross (shelf indivisual) control

Additional functions

Temperature recorder, pirani vacuum gauge, signal tower, buzzer, timer for heat treatment

Safety contermeasures

Self diagnostin functions, key lock function, independent oberheating prevention, earth leakage breaker

Shelf

Pipe heater 0.9kW x 8, total 7.2kW

Shelf dimentions

590W x 550D x 25H mm

Internal dimensions（W×D×H mm）

600×600×600mm

External dimensions（W×D×H mm）

1020×820×1650mm

Remarks(dimensions)

216L

Power Source

AC220 V/ AC380VThree phase 50/60Hz with step-down transformer

Weight

400kg

Price

Catalog
