Circulation Type

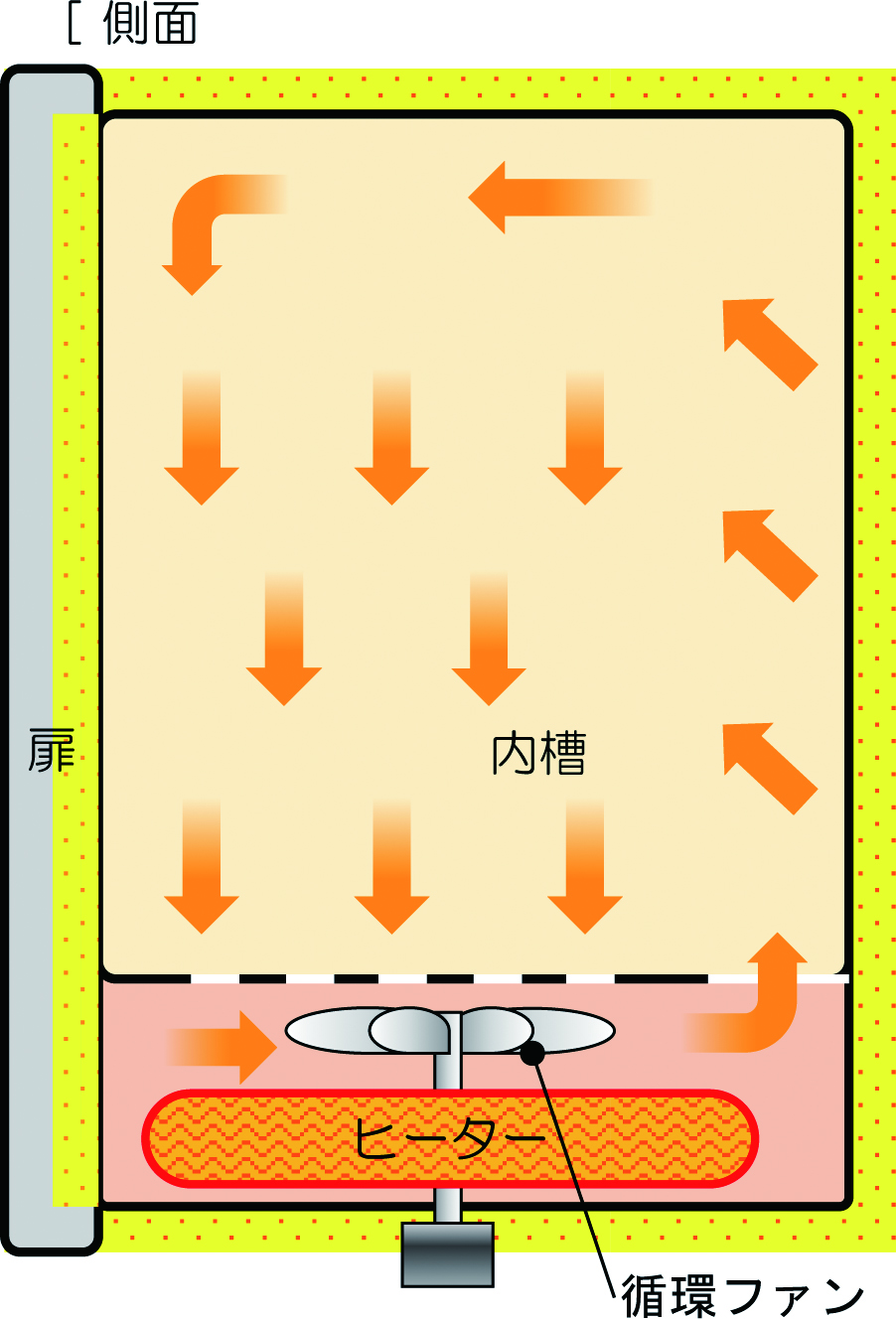

Forced Convection
Operating temperature range
Room temp.+10 deg.C to 210 deg.C
Temp. adjustment accuracy
±1.0 deg.C (at 210 deg.C)
Temp. distribution accuracy
±3.0 deg.C (at 210 deg.C)
Max. temp. reaching time
Approx. 60 min
Interior material
Stainless steel
Exterior material
Chrome-free electrogalvanized steel plate with baked-on coating
Heat insulating material
Rock Wool
Heater
Iron-chrome wire heater, 400W
Fan type
Axial flow fan, 130mm diameter steel plate fan
Exhaust port
Stainless steel, 30 mm I.D. × 1pc. (on the top)
Door
Chrome-free electrogalvanized steel plate with baked-on coating
Temp. controller
PID control by microprocessor
Temp display method
Digital display by LED
Operation function
Fixed temperature operation, auto-start or auto-stop by timer
Additional Function
Sheet key, (LED; Temperature, Timer Lamp; Heater, Abnormal Temperature) Main switch for Short circuit breaker, Calibration Off set function, Power failure return mode
Safety countermeasures
Independent overheat prevention, Automatic overheat prevention, Alarm for sensor input, Earth leakage breaker
Internal dimensions（W×D×H mm）
240×250×340mm
External dimensions（W×D×H mm）
320×340×685mm
Power Source
AC115V/AC220VSingle-phase with step down transformer
