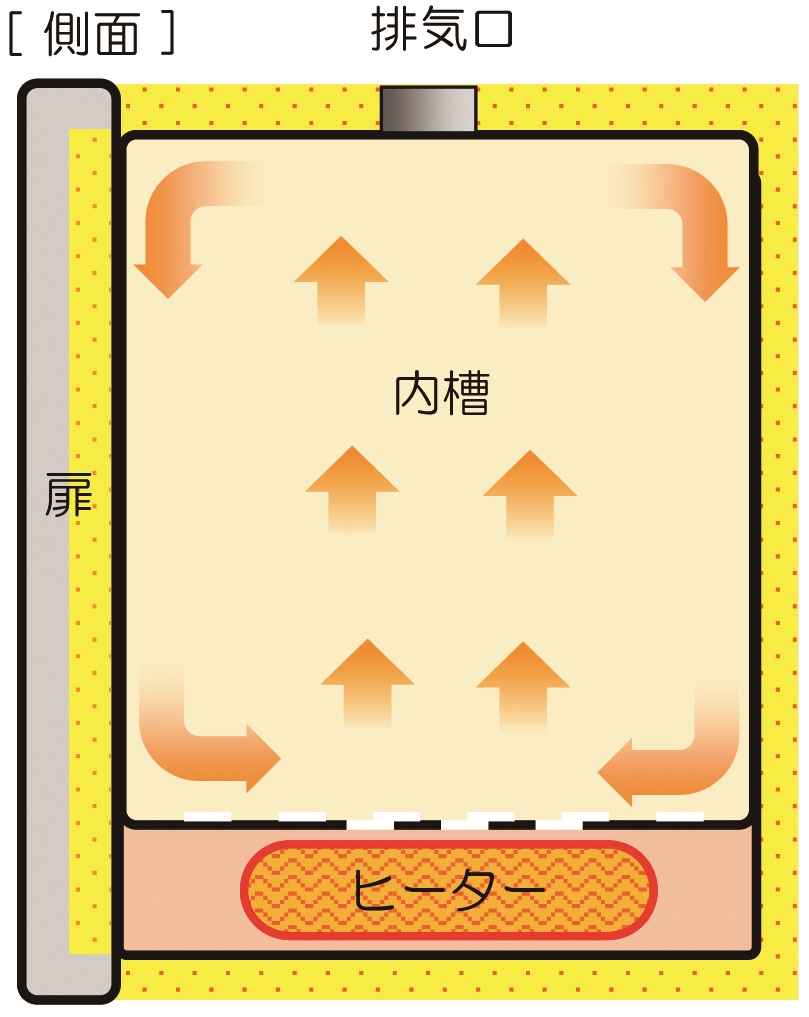

Circulation Type
Natural Convection
Operating temperature range
Room Temp. +10 deg.C to 210 deg.C
Temp. adjustment accuracy
±1 deg.C (at 210 deg.C)
Temp. fluctuation
6 deg.C (at 210 deg.C)
Temp. distribution accuracy
±10 deg.C (at 210 deg.C)
Temp. gradient
35 deg.C (at 210 deg.C)
Max. Temp. Reaching Time
Approx. 60 min
Interior Material
Stainless Steel
Exterior Material
Chrome-free electrogalvanized steel plate with melamine resin baking finish
Heat Insulating Material
Rock Wool
Heater
Iron & chromium wire heater 400W
Exhaust Port
Stainless steel, I.D. 30mm x 1 (Top Side)
Door
Chrome-free electrogalvanized steel plate with bakied-on coating
Temp. Control System
PID control by microprocessor
Temp. Display
Digital Display by LED
Timer
1 to 99hrs. 59min. and 100hrs. to 999hrs. 50min.
Operation Function
Fixed Temp. Operation (Quick auto stop, Automatic Start, Automatic Stop selection by timer setting)
Operation Panel
Sheet key, (LED; Temperature, Timer Lamp; Heater, Abnormal Temperature) Main switch for Short Circuit Breaker
Additional Function
Calibration Off set function, Power failure compensation function, Key lock
Internal dimensions（W×D×H mm）
240×250×340mm

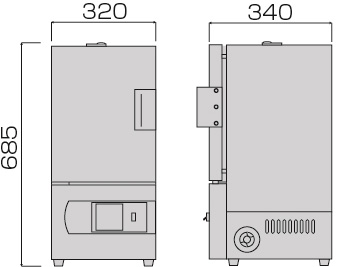

External dimensions（W×D×H mm）
320×340×685mm
Power Source
AC115V/AC220VSingle-phase with step down transformer
Safety Countermeasure
Independent overheat prevention by liquid pressure type, Automatic overheat prevention, Alarm for sensor Input, Earth leakage breaker
