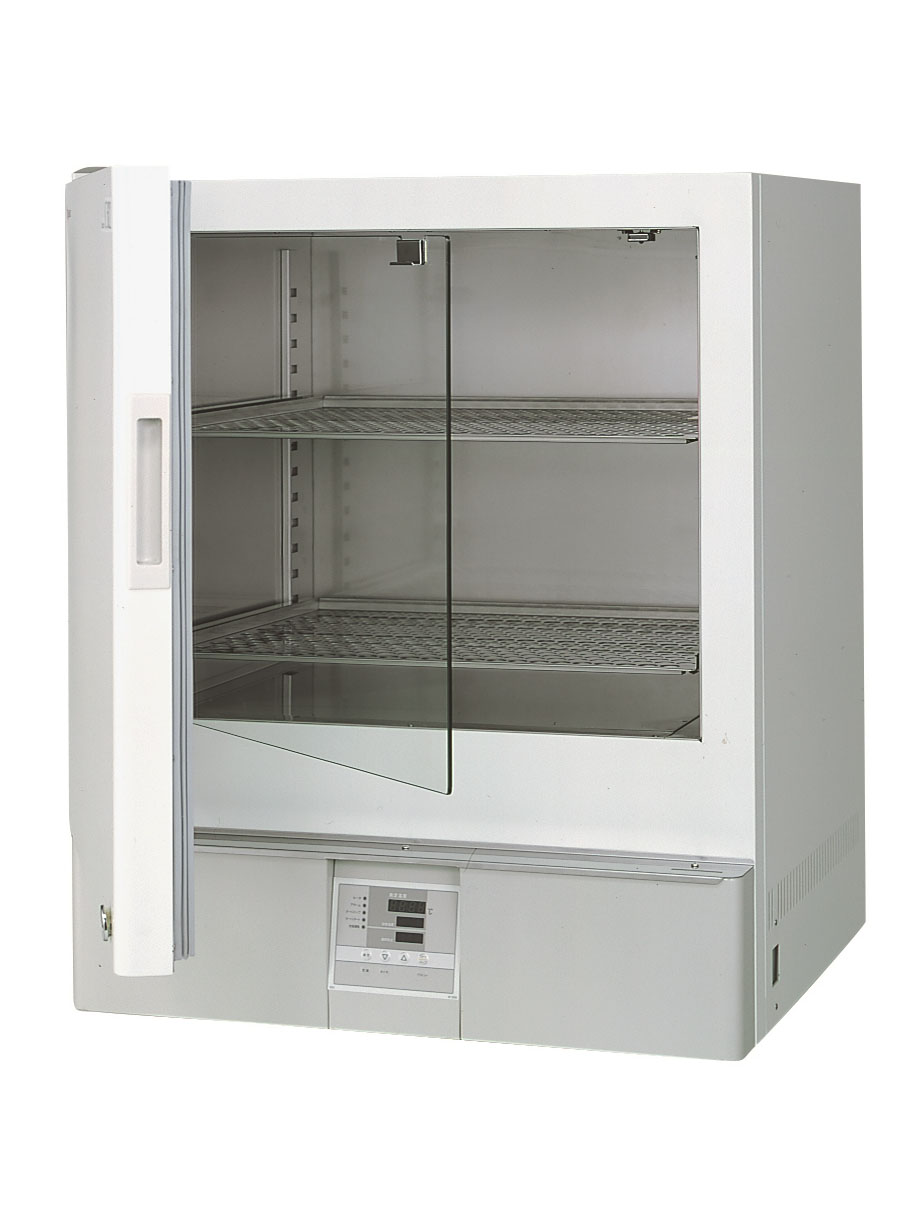

IncubatorEconomical Incubator (Natural Convection)

IncubatorEconomical Incubator (Natural Convection)(IC602)

Item Code：211196

Model：IC602

Power Source：AC220V2ASingle phase

Origin：Japan

Product Summary

Best-selling incubator for long years, various capacity

Features

Air Jacket enables the excellent temperature uniformity

Inner observation glass window can avoid rapid temperature changing inside the chamber even the external door is being opend

Equipped with Self Diagnostic Function, Key-lock Function and Short-circuit Breaker

Specifications

Item Code

211196

Model

IC602

Type

Air Jacket Type, Natural Convection

Temperature range

Room Temp. +5～80℃

Temp. Adjustment Accuracy

±0.5℃ at 37℃

Temp. Distribution Accuracy

±1.0℃ at 37℃

Interior

Stainless Steel

Exterior

Cold Rolled Steel Plate with Chemical-resistant Coating

Insulation Material

Glass wool

Heater

0.4 kW

Exhaust Port

30mm ID x 2 (on the top)

Temp. Control Method

PID control

Temp. Setting Method

Digital Setting by ▼▲ Key

Temp. Display

Measuring Temp.: Green 4 digit LED Digital Display / Setting Temp.: Red 4 digit Digital Display

Timer

1 to 99hrs 59min. and 100 to 999hrs50 min. (with Timer Wait Function)

Operating Function

Fixed Temp., Quick Auto-stop Operation, Auto-stop Operation, Auto-start Operation

Additional Function

Calibration offset, Key-lock Function, Blackout Recovery Function

Sensor

Temp. Control: Pt. Thermal Resistance Pt100Ω, K-Thermcouple: Overheat Preventor

Safety Device

Self Diagnostic Function（Automatic Overheat Prevention, Abnormal Temp. Sensor, Heater Disconnection, SSR Short Circuit, Overheat Preventor, Overcurrent ELB, Key-lock Function

Shelf Loading Capacity

Approx. 15kg/shelf

Shelf support step number/Pitch

Max. 13 steps / 30mm

Shelf/ Support

2 shelves/ 4 supports

Internal dimensions（W×D×H mm）

600×530×500mm

External dimensions（W×D×H mm）

710×656×870mm

Remarks(dimensions)

159L

Power Source

AC220V2ASingle phase

Weight

65kg

Catalog

Incubator, Natural convection

Optional Items

Stand(ON61)

Stainless punching metal shelf()

Stacking support(OD60)

Seismic isolation rubber()

Stainless steel wire shelf(OIL22)

Time-up output terminal(ODK14)

Temperature output terminal（4-20mA）(ODK12)

Cable port(ODK34)

Cable port(ODK32)
