Heating Block

Heating Block(HF200)

Item Code：213106

Model：HF200

Power Source：AC115V/AC220VSingle phase with step-down transformer

Origin：Japan

Product Summary

Quick heat up

Features

The more precise temp. adjustment accuracy (±0.2℃) with calibration off-set function.

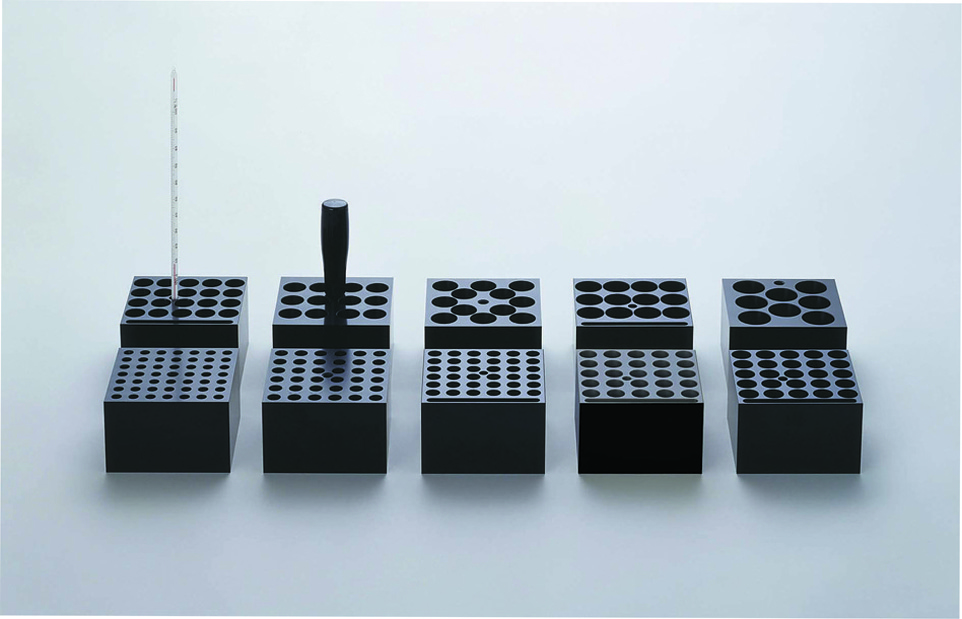

10 types aluminium block.

Specifications

Item Code

213106

Model

HF200

Operating temp. range

Room temp. +5 to 200℃

Temp. adjustment accuracy

±0.2℃ (at 200℃ , at using φ16.5 testing tube)

Time to reach to max. temp.

Approx. 35min. (Room temp. 23℃ )

Loadable block

Aluminium block 2pcs.

Temp. control

PID Control by digital controller

Temp. sensor

Pt Sensor, Pt100Ω

Temp. setting/display

Digital setting, Min. indication unit 0.1℃

Function

Fixed. temp. operation, quick automatic stop timer operation, automatic stop timer operation, automatic start timer operation

Heater

Mica heater 600W

Safety countermeasures

Over current / electric leakage breaker, Automatic overheat prevention (Main relay shut down at setting temp. +12deg.C, Manual recovery), Independent overheat preventor (Manual recovery type bimetal, Reaction temp. Approx. 230deg.C)

Other function

Key lock function, Calibration Off -Set function, Breakout protection function

Accessory

Handle for aluminium block loading /Unloading

Internal dimensions（W×D×H mm）

222×112×70mm

External dimensions（W×D×H mm）

340×310×139mm

Power Source

AC115V/AC220VSingle phase with step-down transformer

Weight

6.5kg

Catalog

Heating Block

Optional Items

Aluminum block(OBH80)

Aluminum block(OBH82)

Aluminum block(OBH84)

Aluminum block(OBH86)

Aluminum block(OBH88)

Aluminum block(OBH90)

Aluminum block(OBH92)

Aluminum block(OBH94)

Aluminum block(OBH96)

Aluminum block(OBH98)
