Natural Convection Oven

Natural Convection Oven(DX302)

Item Code：212039

Model：DX302

Power Source：AC220V5ASingle-phase

Origin：Japan

Product Summary

Highly practical standard ovens with maximum temperature up to 300°C

Features

Economical and cost saving

Easy to use and maintain

Excellent temperature accuracy

Digital PID controller for easy constant operation with options of Fixed setting

Quick Auto Stop, Auto Start / Stop operation

Increased safety and Self-diagnostic function

Calibration off-set function

Temp sensor error, Temp input circuit error, Auto overheat prevention, Measured temp error, Circuit breaker with over current protection

Specifications

Item Code

212039

Model

DX302

Method

Natural gravity convection

Operating temperature range

Room temp.＋5～300℃

Temp. adjustment accuracy

±1℃（at 300℃）

Temp. distribution accuracy

±10℃（at 300℃）

Max. temp. reaching time

Approx. 45 min

Interior material

Stainless steel

Exterior material

Electro-galvanized steel sheet with melamine resin baking finish

Heat insulating material

Glass wool

Heater

Iron-chrome wire heater, 0.9 kW

Exhaust port

Rotary dampers with a 20% opening rate at closing

Temp. controller

PID control by microprocessor

Temp. setting method

Digital setting by UP/DOWN key

Temp. display method

Measurement temp. : Digital display by green LED Setting temp. : Digital display by red LED

Timer

1 min. to 99 hrs. 59 min. and 100 hrs. to 999 hrs. 50 min.

Operation function

Fixed temperature operation, Quick auto stop, Auto stop, Auto start

Additional function

Calibration off-set, Power failure compensation function, Key lock function

Heater circuit control

SSR control

Sensor

K-thermocouple

Safety device

Self diagnosis functions(Temp. sensor abnormal, Abnormal memory, Input temp. abnormal, Measured temp. abnormal, Automatic overheat prevention), Key lock function,

Safety device

Hydraulic independent overheat prevention device, Electric leakage breaker with over current protection.

Shelf plate with standard load

15kg/piece

Shelf support step number/pitch

6 steps / 35mm

Accessories

Stainless steel punching metal Shelf plate 2pcs. Shelf bracket 4pcs.

Internal dimensions（W×D×H mm）

300×310×300mm

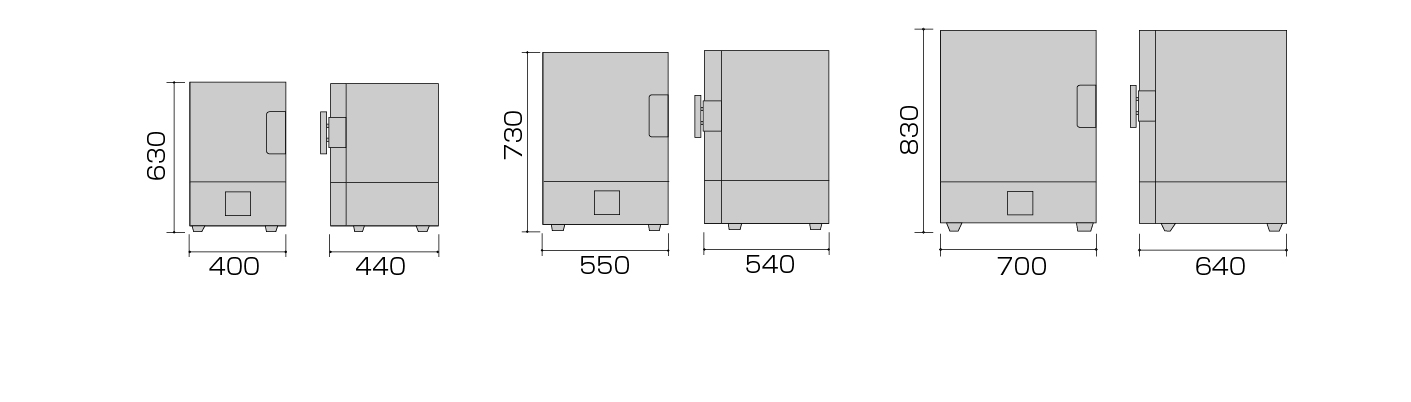

External dimensions（W×D×H mm）

400×440×630mm

Remarks(dimensions)

28L

Power Source

AC220V5ASingle-phase

Weight

23kg

Catalog

Natural Convection Oven (300oC)

Optional Items

Seismic isolation rubber()

Stainless punching metal shelf(O212068)

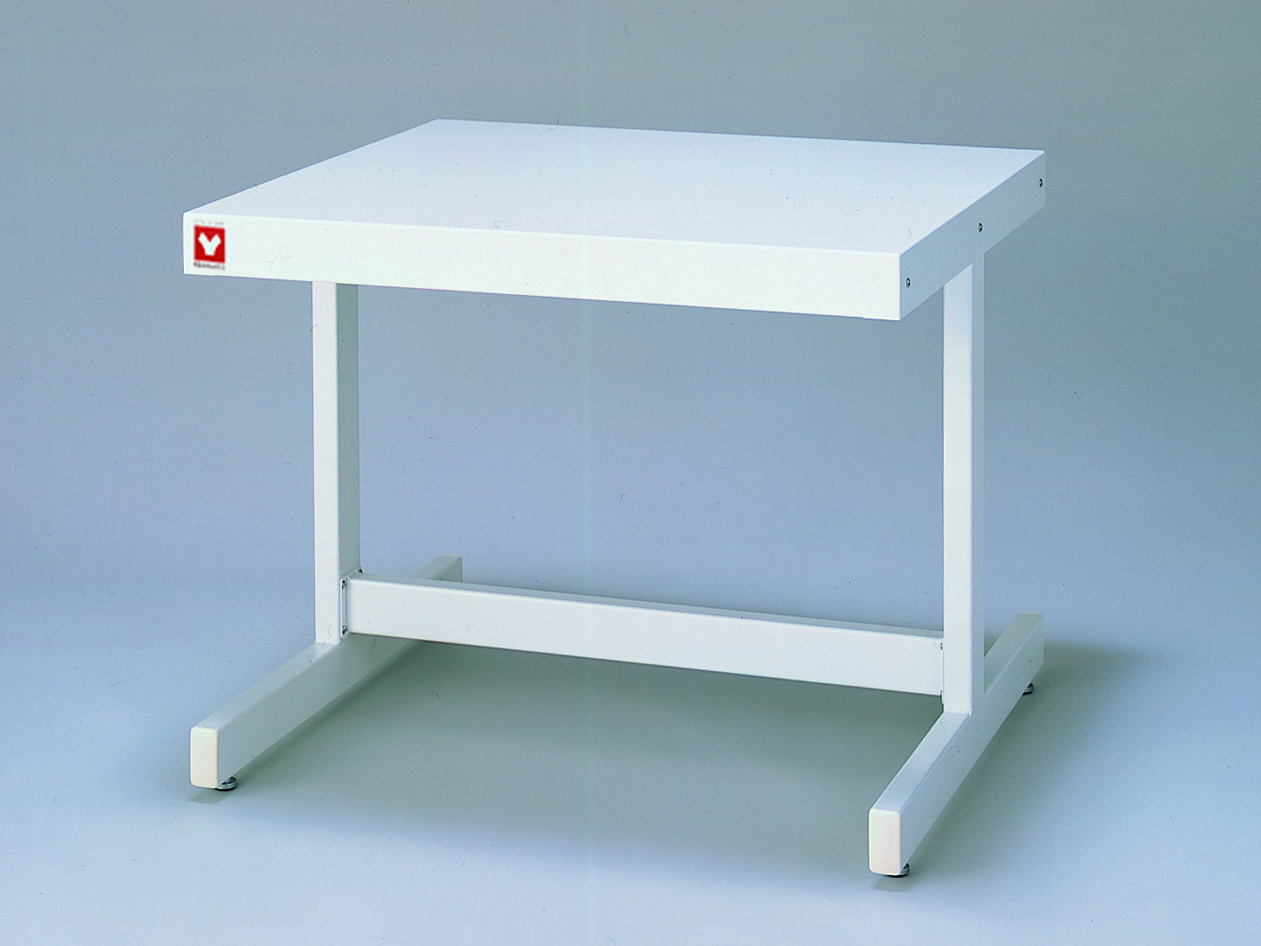

Stand(ONS30)

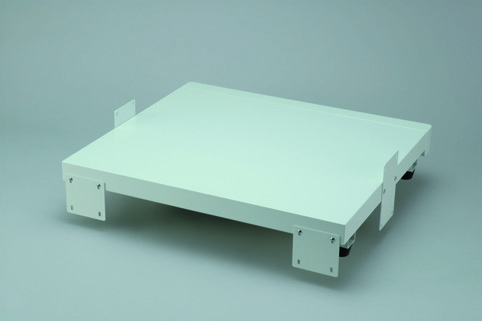

Stacking support(ODK80)

Cable port (25mm Dia.)()

Cable port (50mm Dia.)()
