Circulation method
Natural convection by air jacket
Temp. control accuracy
±0.2℃ (when refrigerator is in the continuous operation) ±0.3℃ (when refrigerator is in the cycle operation)
Temp. distribution accuracy
±1.0℃ (at 37℃ refrigerator is in the continuous operation)
Interior Material
Stainless steel SUS304
Inner door
5mm thick reinforced glass
Refrigerator / Refrigetrant
Inverter type / HFC-R410A
Defrosting mechanism
Hot gas bypass system Manual ON/OFF, Cycle operation
Temp. controller
PID control by micro processor
Temp. setting method
Digital setting with key
Temp display method
Digital display green LED
Operation function
Fixed temperature operation, Auto-start/Auto-stop operation, Program operation:You can make patterns within the program memory capacity, 99 step (Repeat, Ramp operation, Quick auto-stop)
Temp. sensor
Pt100Ω(temperature controller)+K-thermocouple (EV control), K-thermocouple (overheat preventive device)
Safe Device
Self diagnosis functions (Automatic overheat prevention, Temperature sensor trouble, heater disconnection, Min relay malfunction, Refrigerator trouble, Communication trouble, Timer trouble, Triac short circuit), Circuit breaker, Alarm buzzer
Internal dimensions(W×D×H mm)
600×530×1000mm
External dimensions(W×D×H mm)
785×650×1765mm
Power Source
AC115V/220VSingle-phase with step down transformer
Standard accessories

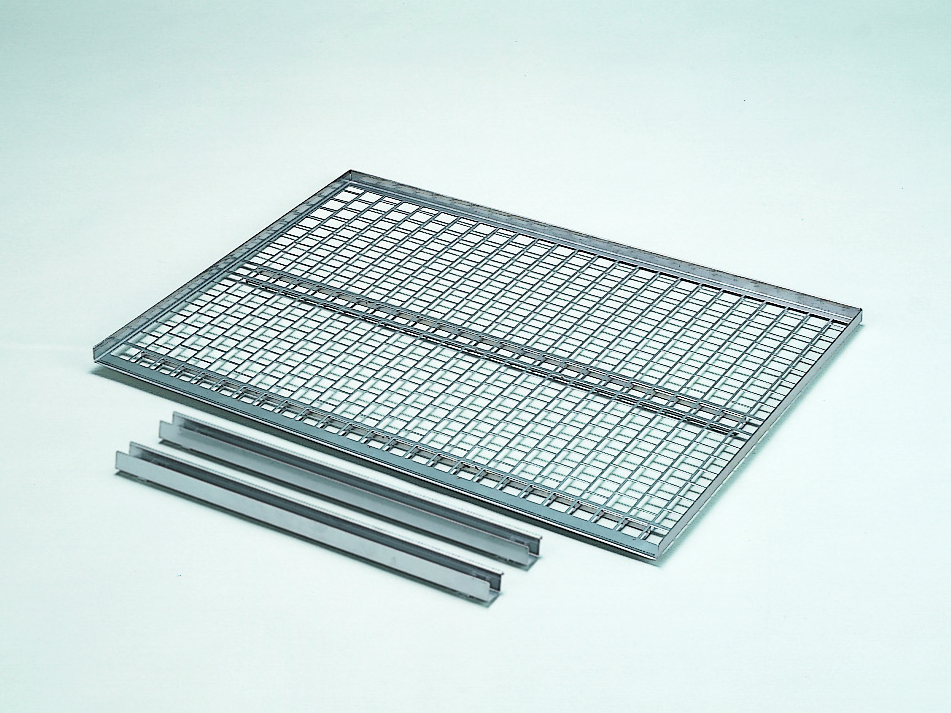

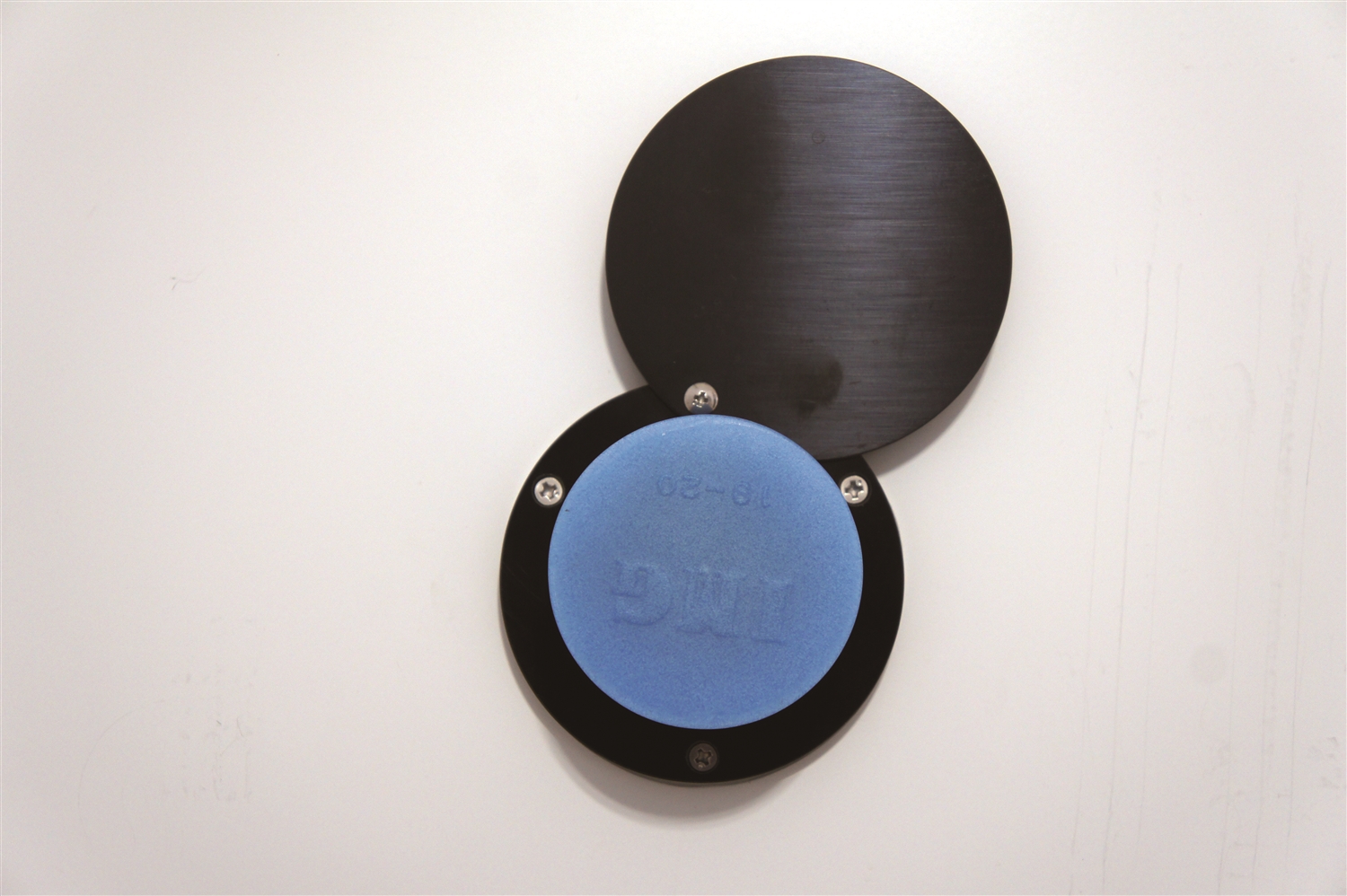

Stainless punching metal shelf 5pcs, Shelf brackets 10pcs, Key 2 pcs, Silicone sponge stopper 1 pc
