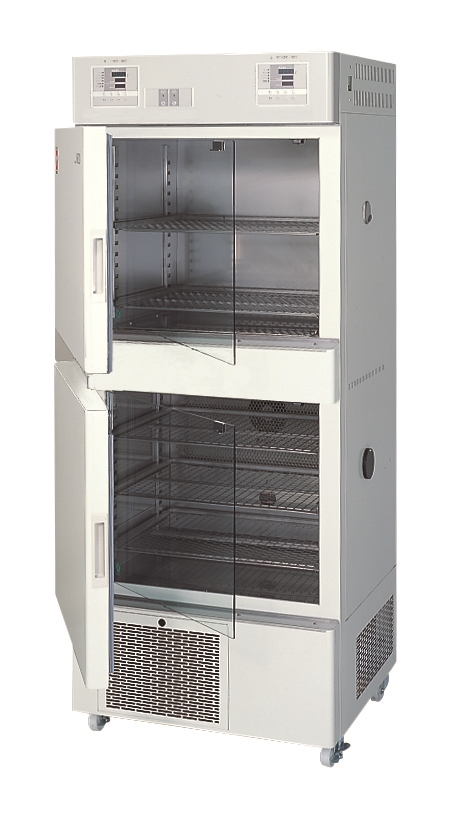

Double Chamber Incubator (Natural Convection & Low Temp.)

Double Chamber Incubator (Natural Convection & Low Temp.)(INC820)

Item Code：211210

Model：INC820

Power Source：AC220V7ASingle-phase with step-down transformer

Origin：Japan

Product Summary

High-temp. and Low-temp. incubations can be carried out in each chamber individually in 1 unit

Features

The lower chamber is equipped with cycle/manual defrost function.

Equipped with self-diagnostic function, key-lock, ELB for overcurrent, overheat protector

Each chamber is equipped with door lock key (2pcs. each)

Specifications

Item Code

211210

Model

INC820

System (Upper Chamber)

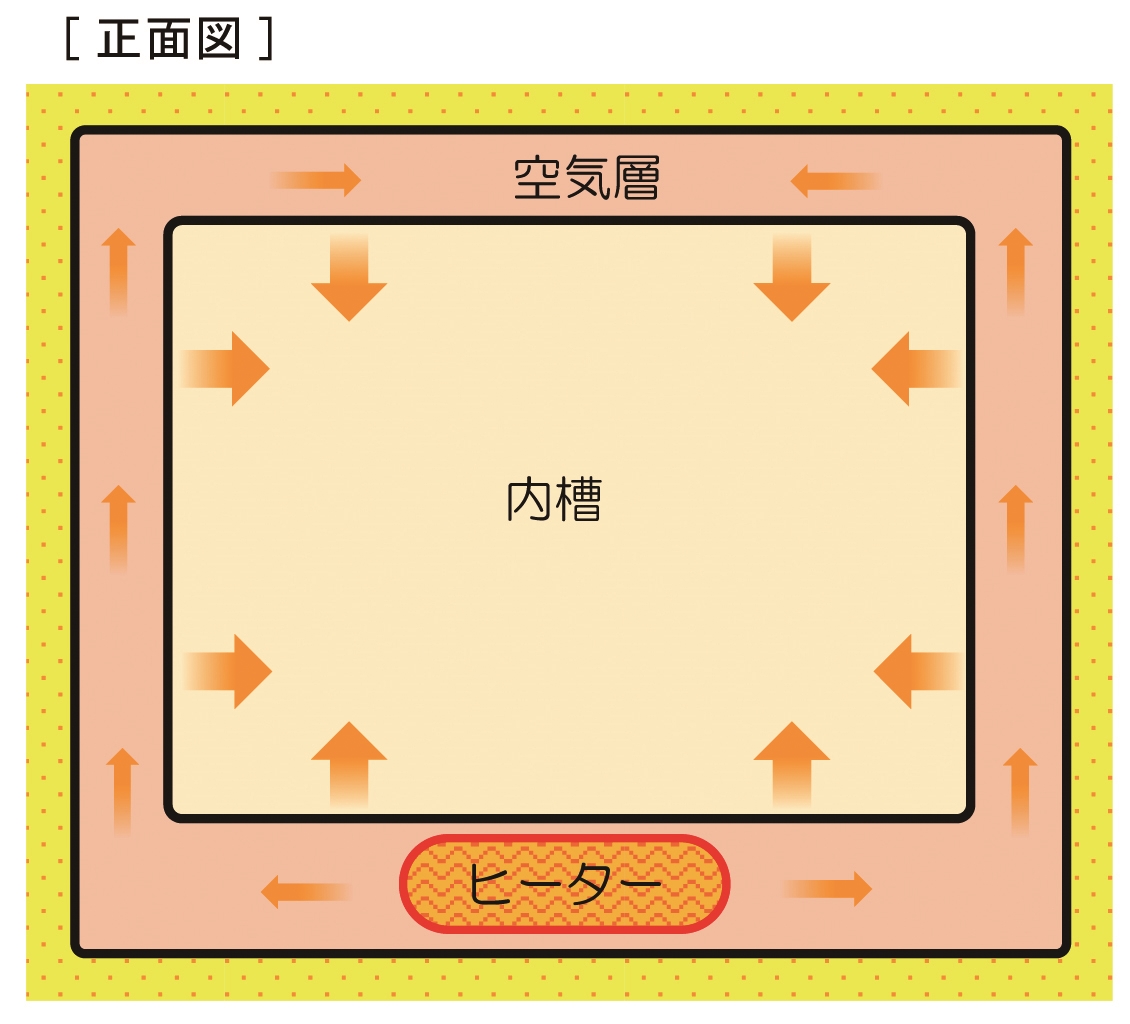

Natural convection, Air jacket

Temperature range

Upper Chamber Room temp.＋5℃～80℃,Lower Chamber) +4℃～50℃

Temp. Adjustment Accuracy (Upper Chamber)

±0.5℃（at 37℃）

Temp. Distribution Accuracy (Upper Chamber)

±1.0℃（at 37℃）

Interior

Stainless Steel

Cable Port (Upper Chamber)

30mm ID (Right side from the front)

Exhaust Port (Upper Chamber)

30mm（with Damper）, 2 ports on the top

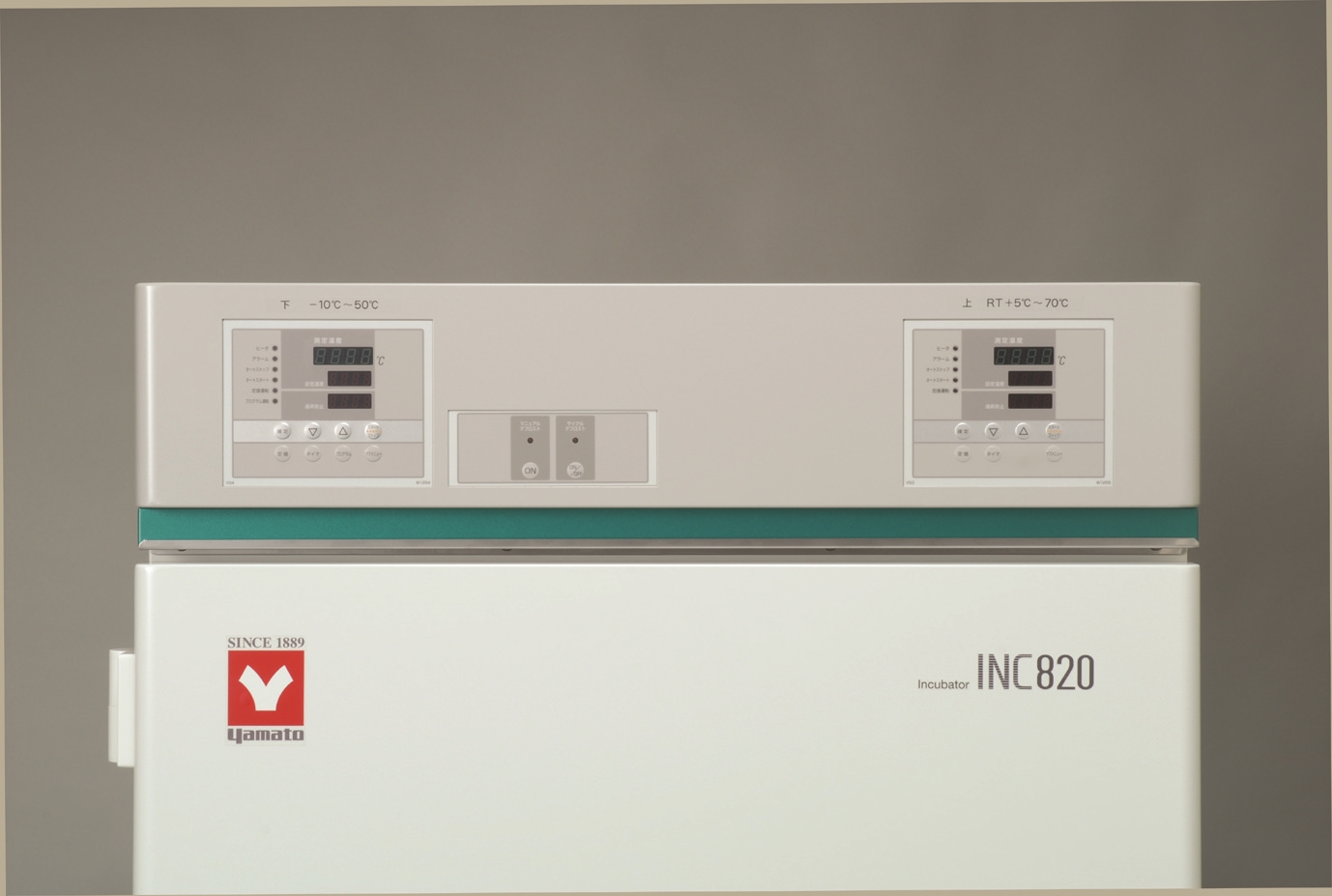

Controller (Upper Chamber)

VS3 Type, Fixed operation temperature controller

Operation Function (Upper Chamber)

Fixed temp., Quick auto stop, Auto stop, Auto start operation

Internal Dimensions (Upper Chamber)

600×530×500mm

Internal Capacity (Upper Chamber)

150L

Shelf Step/ Pitch (Upper Chamber)

13 steps / 30mm

Standard Shelf / Support (Upper Chamber)

2 shelves/4 suppots

System (Lower Chmber)

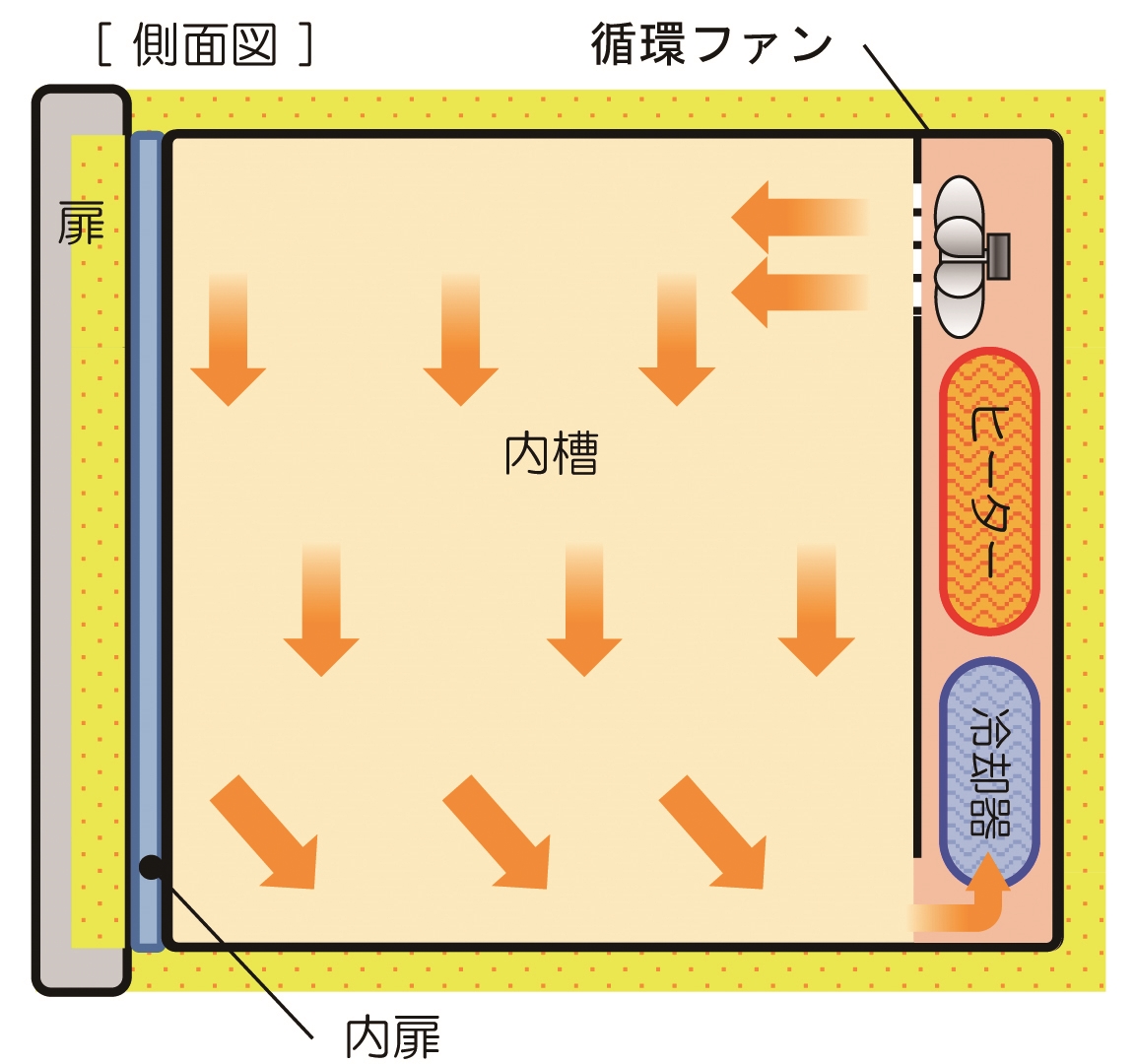

Forced convection

Temp. Adjustment Accuracy (Lower Chamber)

±0.3℃（at continuous refrigeration）

Temp. Distribution Accuracy (Lower Chamber)

±1.0℃（at continuous refrigeration）

Interior

Stainless Steel

Refrigerator (Lower Chamber)

Air cooling, 250W

Refrigerant (Lower Chamber)

R404A

Defrost Operation (Lower Chamber)

Manual / Cycle

Cable Port (Lower Chamber)

50mm ID (Right side from the front)

Controller (Lower Chamber)

VS4 Type Program operation temp. controller

Operation Function (Lower Chamber)

Program operation(30 steps ×1、15 steps×2、10 steps×3), Fixed temp. operation, Quick auto stop, Auto stop, Auto start

Safety Device (Lower Chamber)

Self-diagnostic functions(Temp. sensor error, Heater disconnection, SSR short-circuit, Main relay error, Automatic overheat prevention), Key-lock, Over current ELB, Overheat preventive device

Interior (Lower Chamber)

600×477×500mm

Internal Capacity

143L

Shelf support step number/pitch

13 steps / 30mm

Shelf / Support

3 shelves／6 pcs.

Sensor

Pt100Ω

Shelf Loading Capacity

Approx. 15kg/ shelf

Door Key

2 pcs. / each chamber

External dimensions（W×D×H mm）

710×656×1792mm

Remarks(dimensions)

150L (Upper chamber ) + 143L (Lower chamber)

Power Source

AC220V7ASingle-phase with step-down transformer

Weight

160kg

Catalog

Double Chamber Incubator

Optional Items

Stainless punching metal shelf()

Stainless steel punching metal shelf (1 shelf with 2 supports）(IN81800)

Drain water tray(OIL26)

Stainless wire shelf (Loading up to 20 kg/shelf)()

Stainless steel wire shelf(OIL22)

External communication adapter(281126)

External communication function (RS485)(ODK19)

Temperature output terminal（4-20mA）(ODK12)
