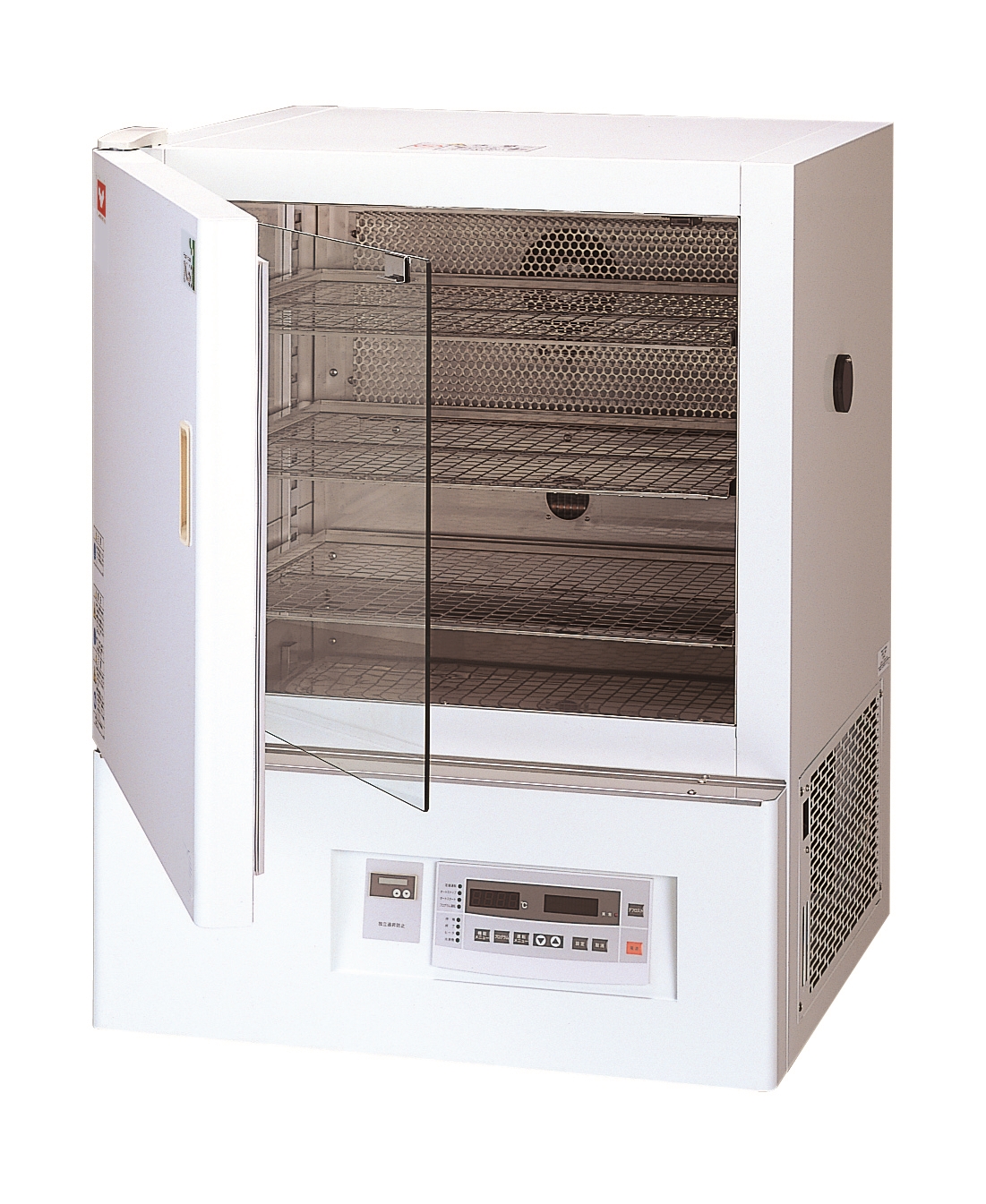

Low Temperature Incubator (Programmable)

Low Temperature Incubator (Programmable)(IN604)

Item Code：211289

Model：IN604

Power Source：AC115V/220VSingle phase

Origin：Japan

Product Summary

Best selling incubator for low temperature tests and environmental tests

Features

Available for wide variety of applications from various constant temperature tests to environmental tests

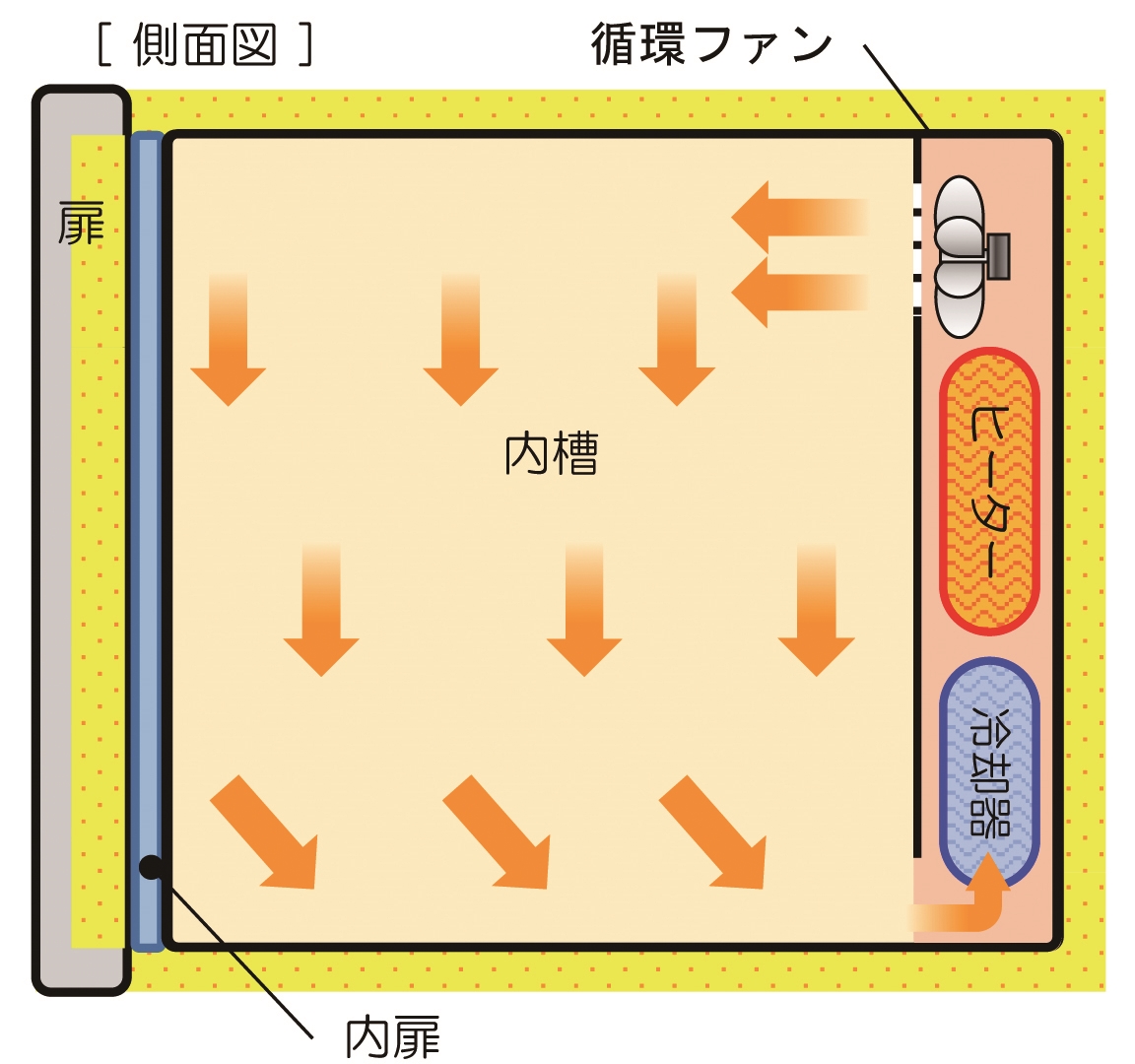

Forced circulation with a fan enables high accuracy temperature control and even temperature distribution

The glass inner door keeps temperature changes during observation samples minimum

Specifications

Item Code

211289

Model

IN604

System

Forced air convection

Temperature range

-10～50℃

Temperature Adjustment Accuracy

±0.3℃（when refrigerator is in continuous operation), ±1.0℃（when refrigerator is in cycle operation）

Temperature Distribution Accuracy

±1.0℃（at 37℃ refrigerator is in continuous operation）

Max. Temperature Reaching Time

20～50℃　approx. 20min.

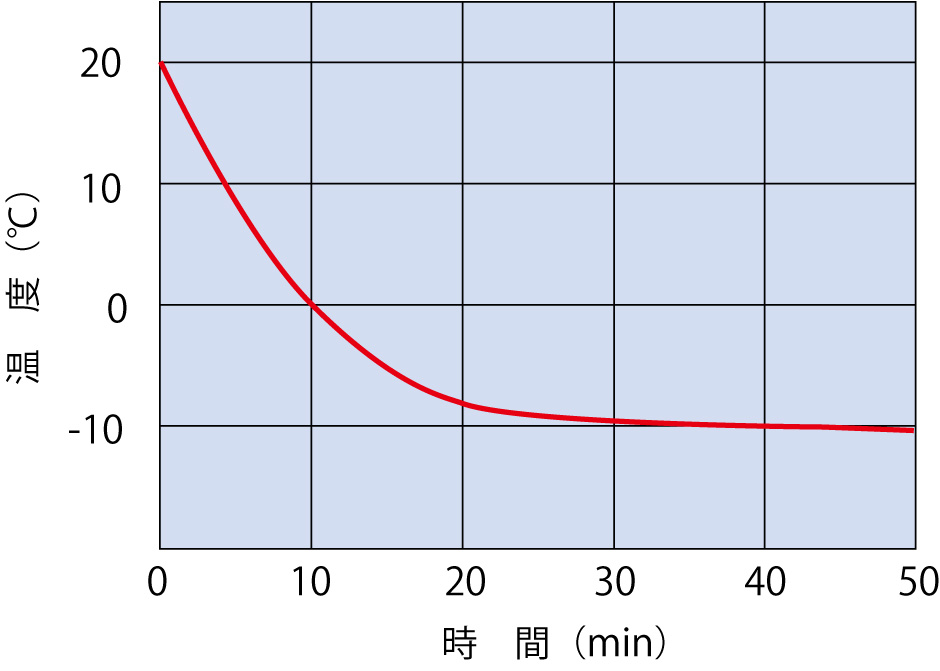

Lowest Temperature Reaching Time

20～-10℃　approx. 45min.

Interior

Stainless Steel

Exterior

Chrome-free electronic galvanized plated steel plate chemical-proof baking finish

Heat Insulation Material

Stylene foam (non-freon)

Refrigerator Medium

R134a

Defrosting Mechanism

Manual ON / Auto OFF, Timer operation, Cycle operation

Blower

Axial flow fan

Heater

Iron-chrome wire heater 550W

Sensor

Double sensor:Pt. resistance temperature detector, Pt100Ω(Temperature controller), K-thermocouple(Overheat prevention device)

Cable Port

32mm ID （Right side from the front)

Temperature Control

PID control

Temperature Setting

Digital setting with▲▼ key

Temperature Display

Measured temperature: 4-digit orange LED digital display+ VFD fluorescent display

Timer/Timer Resolution

0～999 hrs. 59min. / 1min.

Operation Function

Fixed operation, Program operation, Auto stop, Auto start

Additional Function

Timer function（accumulated time to 49,999 hrs.）, Calibration off-set function, Clock display

Safety Device

Self-diagnostic functions(Temperature sensor error, Heater disconnection, SSR short-circuit, Main relay error, Automatic overheat prevention), Key-lock, Over current ELB, Overheat preventive device

Shelf Loading Capacity

15kg/shelf

Shelf support step number

13 steps

Shelf support pitch

30mm

Shelf / Support

Stainless steel punching metal, 3 shelves / 6 supports

Room Light / Service Outlet

Program Mode

Up to 32 steps, Repeat, Gradient operation

Door Key

Internal dimensions（W×D×H mm）

600×477×500mm

External dimensions（W×D×H mm）

710×645×913mm

Remarks(dimensions)

143L

Power Source

AC115V/220VSingle phase

Weight

89kg

Catalog

Low temperature incubator

Optional Items

Stand(ON61)

Stacking support(OD60)

Stainless steel punching metal shelf (1 shelf with 2 supports）(IN81800)

External communication function (RS422A)(for IN series)

External communication adapter (RS232C)(OIN70)

Temperature output terminal(for IN series)

External alarm terminal(for IN series)

Time-up output terminal(for IN series)

Drain water tray(OIL26)

Stainless wire shelf (Loading up to 20 kg/shelf)()
