Incubator (Natural Convection, Air Jacket)

Incubator (Natural Convection, Air Jacket)(IS801)

Item Code：212553

Model：IS801

Power Source：AC115V/220VSingle phase

Origin：Japan

Product Summary

Incubators of natural convection by air-jacket, equipped with various functions

Features

Air Jacket and Natural Convection, Fix temperature opration, Quick auto stop, Auto stop, Auto start operation are available

3 patterns, 30 steps programming are available

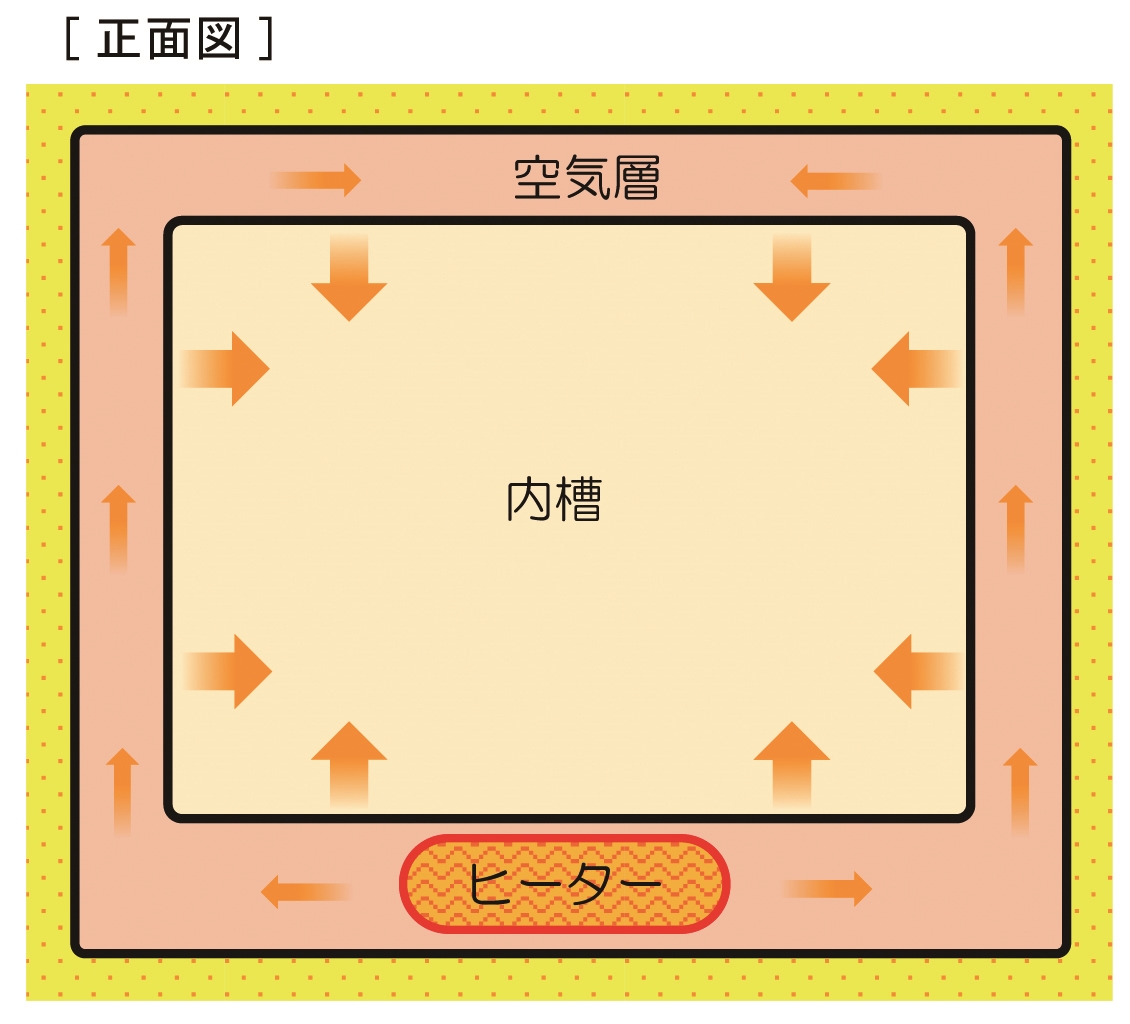

The air-jacket method makes it possible to obtain uniform temperature distribution

Sample can be observed through the inner door

Equipped with self-diagnosis function, a key-lock function and an over-current breaker

Various expanded function due to external communication function, temperature output terminal

The operation before power failure can be resumed

Specifications

Item Code

212553

Model

IS801

Type

Air Jacket Type, Natural Convection

Temperature range

Room Temp. +5～80℃

Temp. Adjustment Accuracy

±0.2℃ at 37℃

Temp. Distribution Accuracy

±1.0℃ at 37℃

Time required to reach 60℃

Approx. 90 min.

Interior

Stainless Steel

Exterior

Cold Rolled Steel Plate with Chemical-resistant Coating

Insulation Material

Glass Wool

Heater

Iron-chrome Wire Heater

Exhaust Port

30mm ID x 2 (side)

Inner Glass Window

Reinforced Glass 5mm t

Temp. Controller

PID control by microprocessor

Temp. Setting Method

Digital Setting by ▼▲ Key

Temp. Display

Digital Display by LED

Timer

1 to 99hrs 59min. and 100 to 999.5 hrs

Min. Timer Division

1min. or 10min.

Operation Function

Fixed Temp., Program Operation, Quick Auto-stop Operation, Auto-stop Operation, Auto-start Operation

Program Mode

Program Operation 3 patterns, 30 steps, Pattern Repeat Function

Additional Function

Calibration Offset Function, Key-lock Function, Blackout Recovery Function

Temp. Sensor

Pt. Thermal Resistance Pt100Ω（Temp. Adjuster）, K-Thermcouple（Overheat Preventor）

Safety Device

Self Diagnostic Function（Automatic Overheat Prevention, Abnormal Temp. Sensor, Heater Disconnection, SSR Short Circuit, Main Relay Error）, Overheat Preventor, Overcurrent ELB, Key-lock Function, Door Key, Adjuster（812/912）

Shelf Loading Capacity

Approx. 15kg/shelf

Shelf support step number/Pitch

Max. 29 steps / 30mm

Shelf/ Support

5 shelves/ 10 supports

Internal dimensions（W×D×H mm）

600×530×1000mm

External dimensions（W×D×H mm）

710×655×1611mm

Remarks(dimensions)

318L

Power Source

AC115V/220VSingle phase

Weight

105kg

Catalog

Incubator

Optional Items

Stainless punching metal shelf()

External alarm terminal for IS800 series(OIS24)

Time-up output terminal for IS800 series(OIS26)

Temperature output terminal for IS800 series(OIS28)

External communication adapter (RC232C)(ODK18)

External communication terminal (RS485)(OIS10)

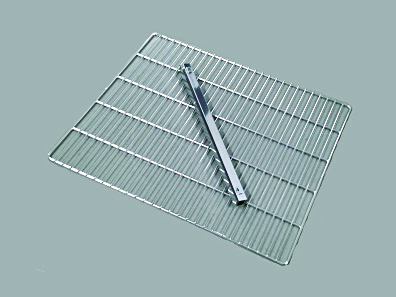

Stainless steel wire shelf(OIL22)

Cable port(ODK34)

Cable port(ODK32)
