Steam Sterilizer (Laboratory Use)

Steam Sterilizer (Laboratory Use)(ST511)

Item Code：241108

Model：ST511

Power Source：AC220V9.6ASingle phase

Origin：Japan

Product Summary

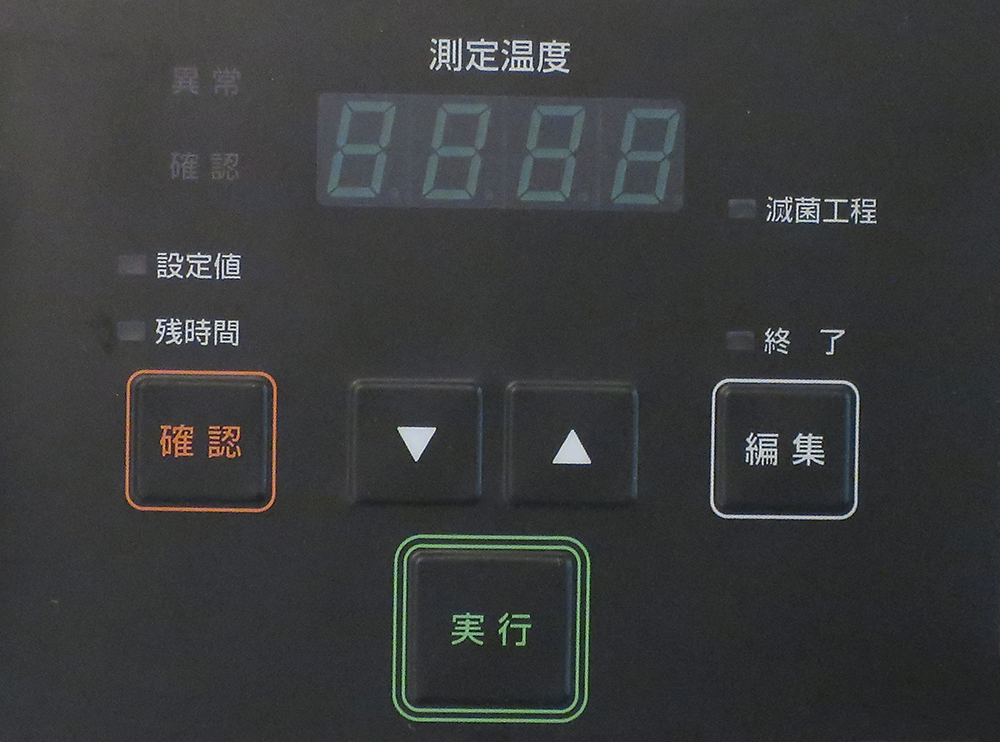

Automatic operations carried out with an interactive key input system.

Features

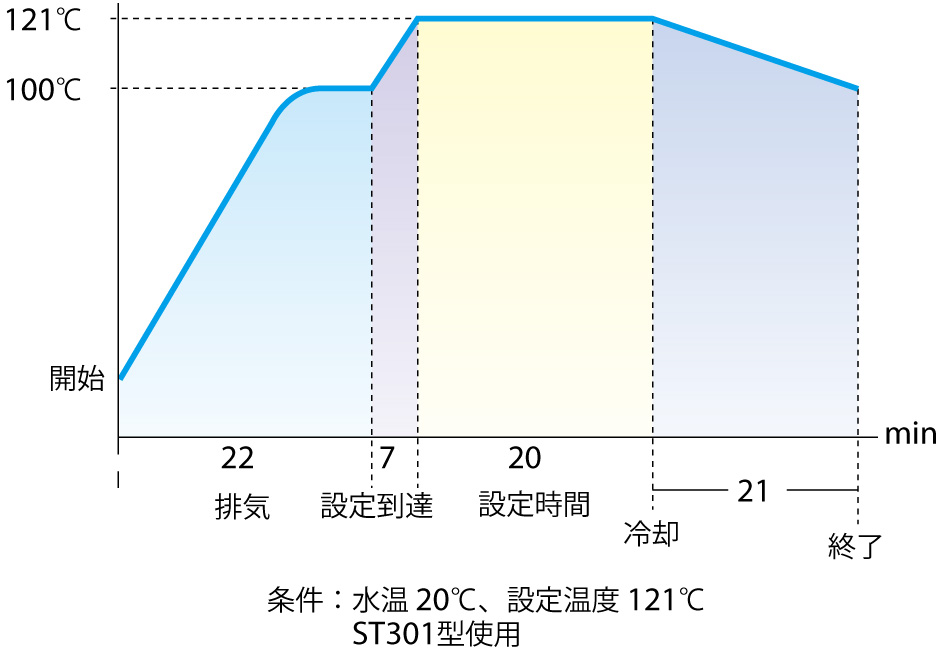

With an interactive key input system, the conditions are memorized. With a single key press, everything is done automatically from air exhausting to sterilization and dry. Safety measures are enriched, including self-diagnosis function.

Specifications

Item Code

241108

Model

ST511

System

Automatic high pressure steam sterilizer

Temp. setting range: Sterilization

105 to 128deg.C

Maximum operational pressure

0.2MPa

Interior Material

Stainless steel

Heater

2.0kW

Temp. controller

PlD control by micro processor

Temp. setting method

Digital setting by UP/DOWN key

Temp display method

Digital display by green LED

Timer

1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs.

Min. division

1 min. or 1 Hrs.

Safety countermeasures

Self diagnosis functions (Sensor, Heater, SSR, Main relay, Low water), Over pressure safety valve, Electric leakage breaker

Internal dimensions（φ×H mm）

φ350×665mm

External dimensions（W×D×H mm）

440×530×1088mm

Remarks(dimensions)

47 (51) liters

Power Source

AC220V9.6ASingle phase

Weight

80kg

Accessories

2 Racks (mesh pitch 8.5 mm), 1 Drain board, 1 Steam saucer and 1 Drain bottle.

Catalog

Steam Sterilizer (Laboratory Use)

Optional Items

Mesh basket(OSM80)

Mesh basket with stacking support(OSQ50)

Mesh basket with a adjustable stainless steel perforated plate(OSQ80)

Stainless solid basket(OSR20)

Mesh basket(OSQ20)

Temperature sensor inside chamber(OSM50)
