Forced Convection Oven (Energy Saving)

Forced Convection Oven (Energy Saving) (DNE611)

Item Code：212825

Model：DNE611

Power Source：AC220V7ASingle-phase

Origin：Japan

Product Summary

High-performance, energy-saving, programmble constant temperature, forced convection ovens.

Features

Due to high precision control system, high performance temperature control is realized, and the CO2 discharge, power discharge also displayed at the monitor.

The DNE series represents forced convection constant temperature oven. They achieve an energy-saving rate of 30 to 40% compared to previous models.

Incorporates with maximum 99 steps, 99 patterns program controller with repeat function.

Loaded with total operation hours timer.

Data acquisition from internal test device is easy because of cable holes.

Specifications

Item Code

212825

Model

DNE611

Operating temperature range

Room temp. +20 to 210°C

Temp. adjustment accuracy

±0.5°C (at 210°C)

Temp. distribution accuracy

±2.0°C (at 210°C)

Max. temp. reaching time

Approx. 70 min.

Interior/Exterior material

Stainless steel /Electro-galvanized steel sheet with epoxy and melamine resin baking finish

Operation function

Fixed temperature operation, Program operation, Auto start, Auto-stop, Quick automatic stop

Program mode

Program operation; Maximum 32 steps, Repeat function

Additional functions

Timer Function (Actual Timer within 24hrs.), Total operation hours timer (to 65535hrs.), Calendar time ( 24 hours),

Shelf plate with standard load

Approx. 15kg/piece

Heat insulating material

Glass wool

Heater

Stainless pipe heater

Heater

1.2kW

Fan Type

Scirocco fan

Motor

Condenser type

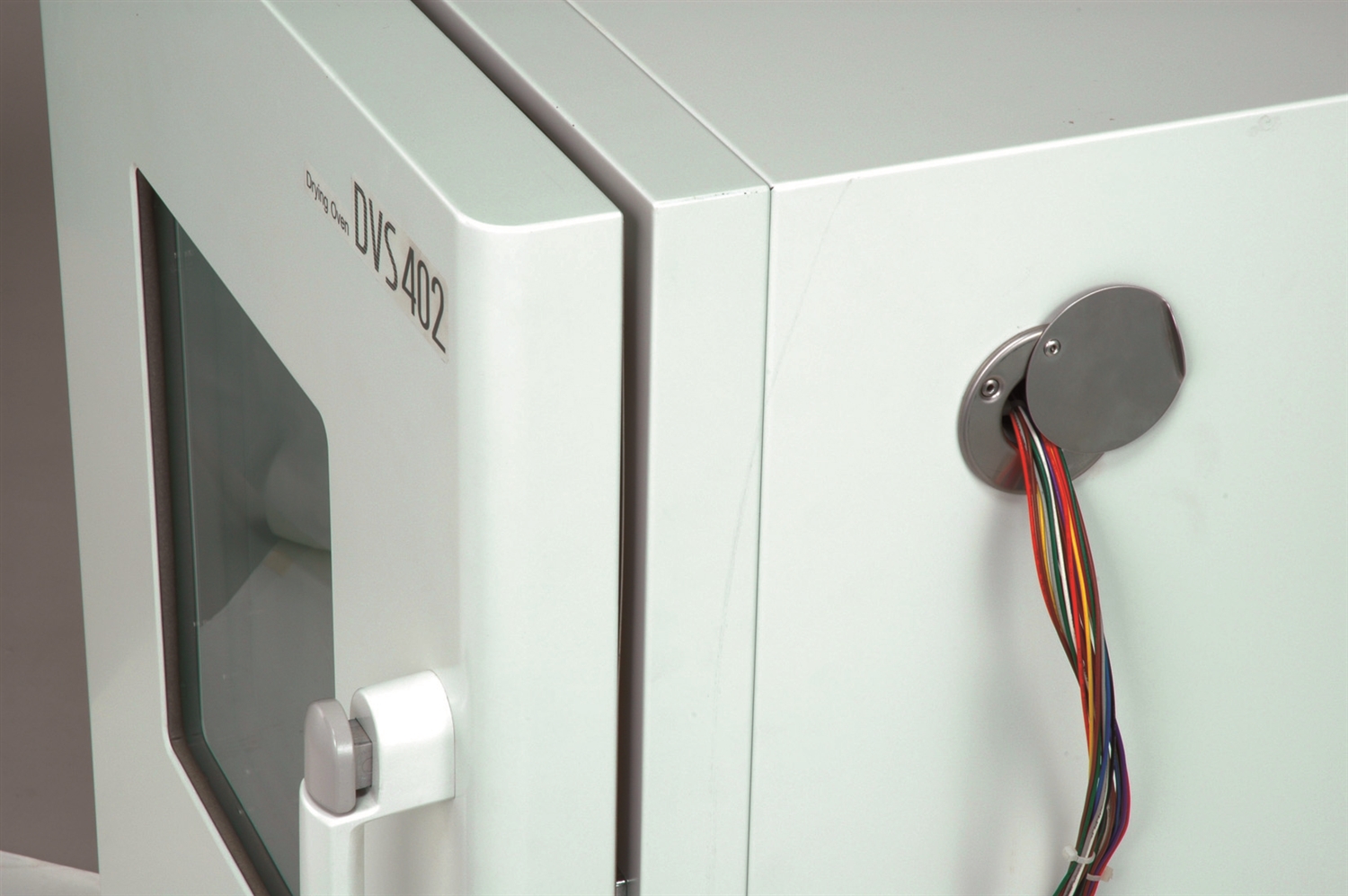

Cable hole/Air in-take hole

33mm I.D. (the right side) 1pc. each

Temp. controller

PlD control by microprocessor

Temp. setting method

Digital setting by UP/DOWN key

Temp display method

Digital Display by Green LED

Timer/Min.division

1 min. to 99 Hrs. 59 min. /1 min.

Additional functions

Calibration offset, Power discharge, CO2 discharge, Power failure return mode, User configuration information

Heater circuit control

Triac zero-cross control

Safety countermeasures

Self diagnosis functions (Temp. sensor abnormal, Heater disconnection, SSR- short, Main relay abnormal, Automatic overheating prevention),

Safety countermeasures

Key lock function, Independent overheat prevention, Electric leakage breaker with over current protection

Shelf support step number

13 steps

Shelf support pitch

30 mm

Accessories Shelf plate

Stainless steel, 2 pcs.

Accessories Shelf support

4 pcs. (1 pair - 2 pcs. is fixed)

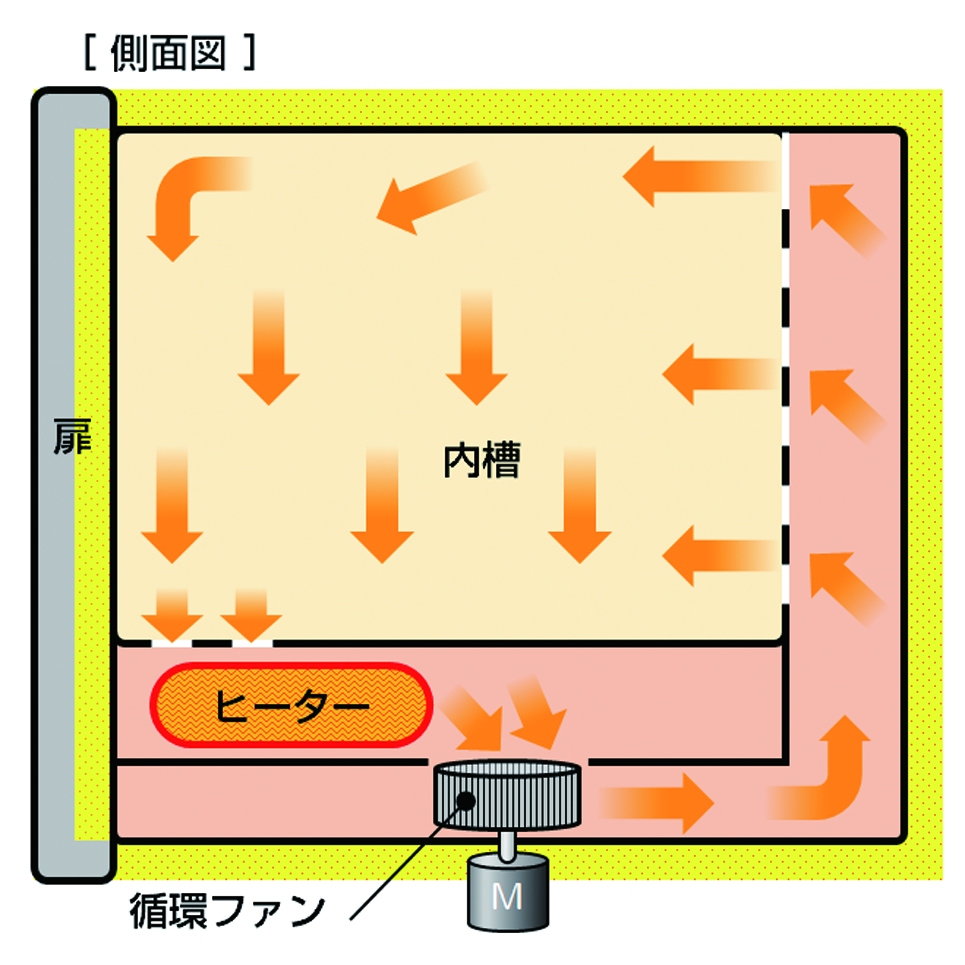

Method

Forced air circulation

Internal dimensions（W×D×H mm）

600×500×500mm

External dimensions（W×D×H mm）

730×695×910mm

Remarks(dimensions)

150L

Power Source

AC220V7ASingle-phase

Weight

77kg

Catalog

Oven, Energy Saving

Optional Items

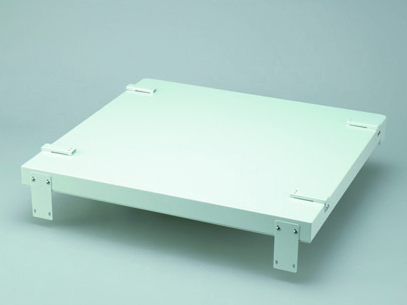

Stacking support(ODN28)

External communication function (RS485)(ODM12)

Temperature output terminal (4-20mA)(ODM16)

Time-up output terminal(ODM24)

Working signal output terminal(ODM28)

Event alarm output terminal (ODM32)

External alarm terminal(ODM20)

Observation window(ODM42)

Stand(ON61)

Additional sensor (sheath sensor)(ODT48)

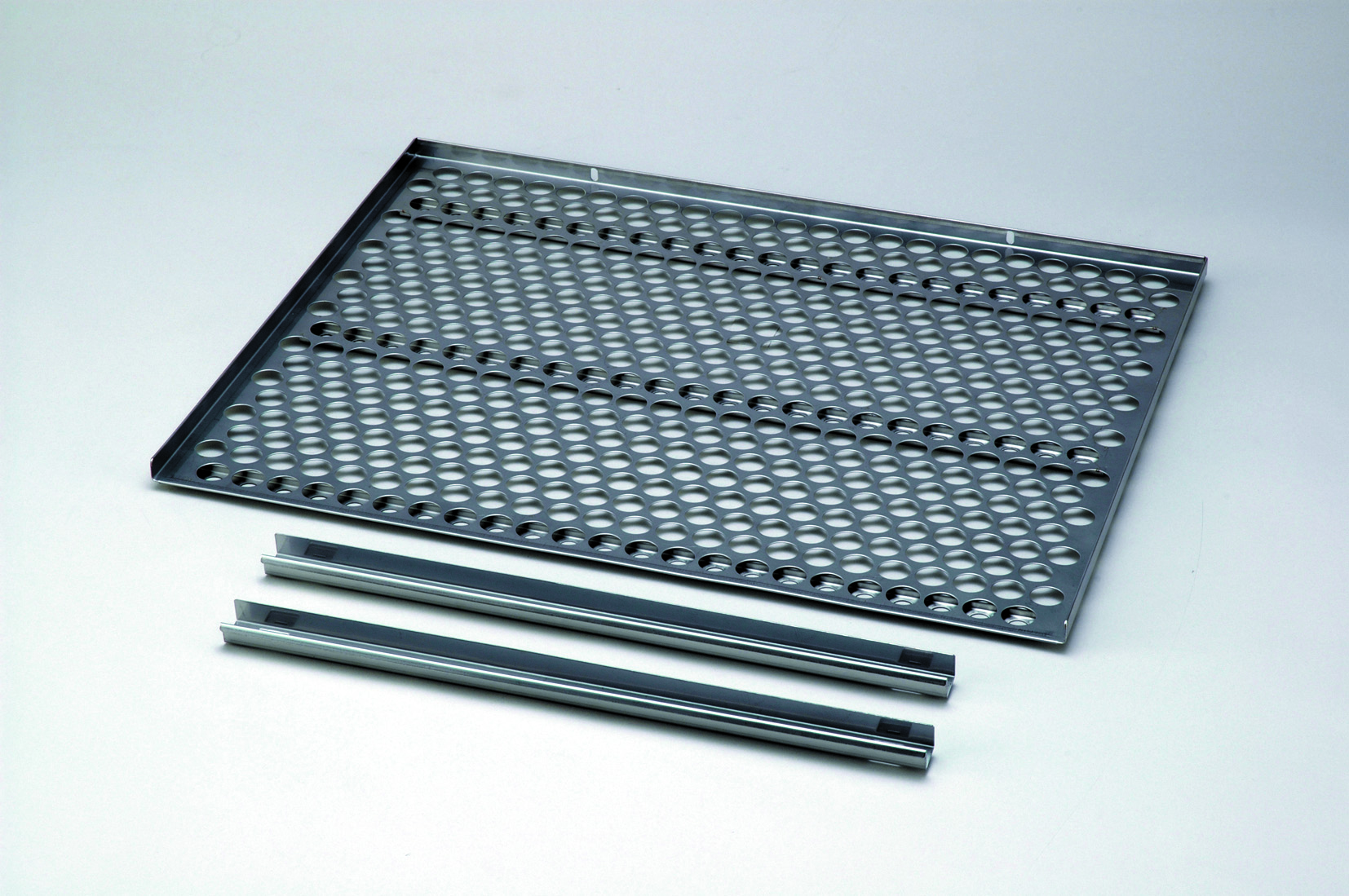

Stainless punching metal shelf()

Silicon plug (with one hole)(ODT52)

Seismic isolation rubber()

External communication adapter set(OIN90)

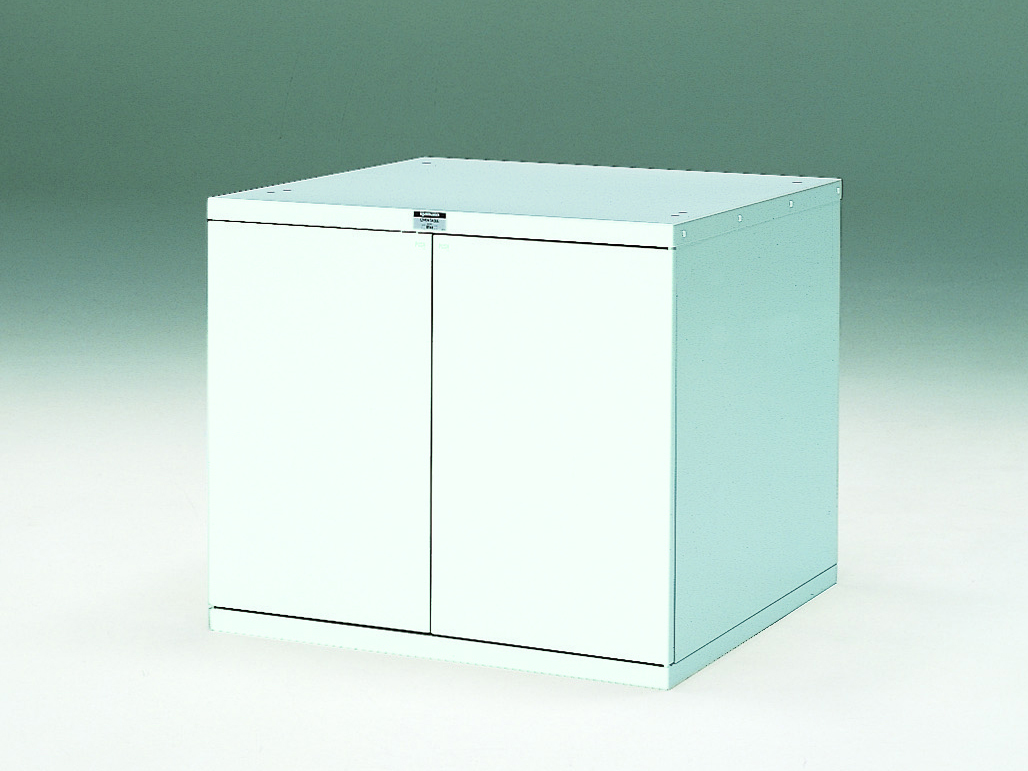

Stand(OT62)

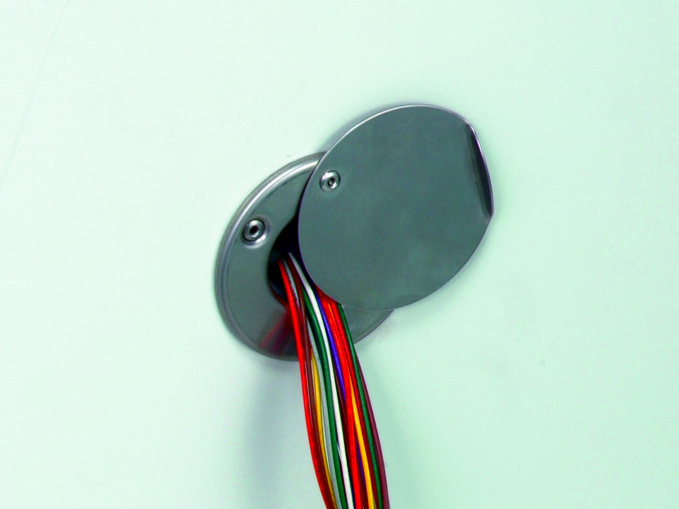

Cable port(ODM36)

Cable port(ODM38)

Same Series Product

Forced Convection Oven (Energy Saving) (DNE650)

Forced Convection Oven (Energy Saving) (DNE650V)

Forced Convection Oven (Energy Saving) (DNE670)

Forced Convection Oven (Energy Saving) (DNE670V)

Forced Convection Oven (Energy Saving) (DNE850)

Forced Convection Oven (Energy Saving) (DNE850V)

Forced Convection Oven (Energy Saving) (DNE401)

Forced Convection Oven (Energy Saving) (DNE411)

Forced Convection Oven (Energy Saving) (DNE601)

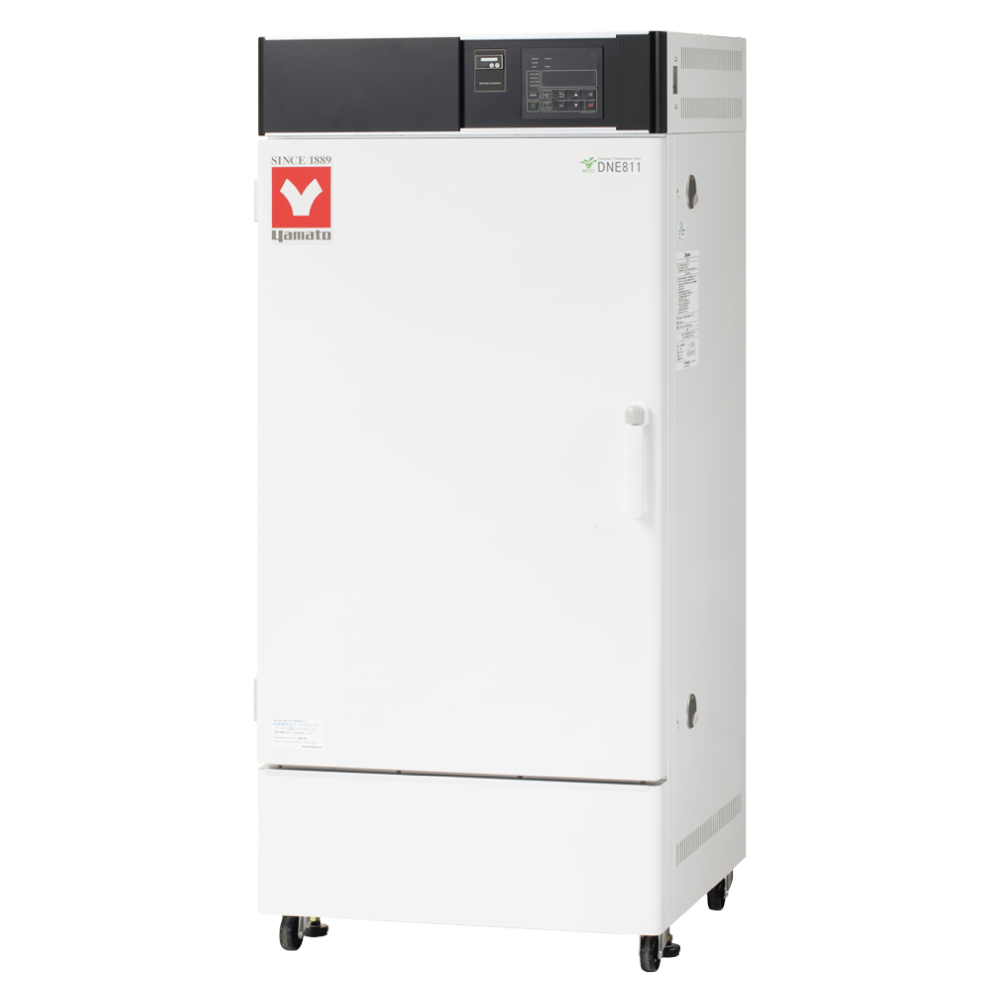

Forced Convection Oven (Energy Saving) (DNE811)
