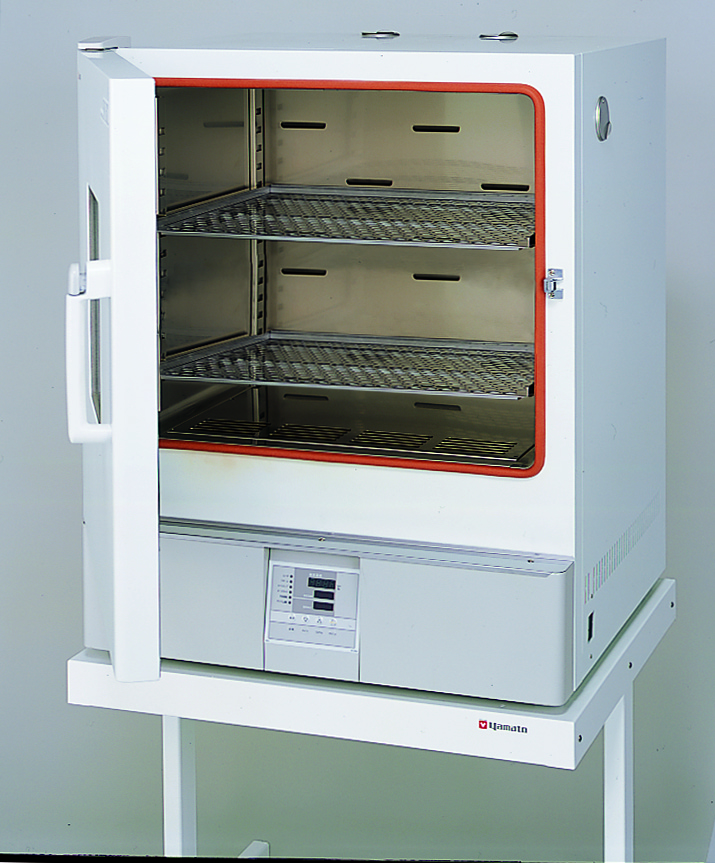

Forced Convection Oven

Forced Convection Oven(DKN812)

Item Code：212874

Model：DKN812

Power Source：AC220V12ASingle-phase

Origin：Japan

Product Summary

Standard "Best Seller" ovens - Fully programmable

Features

Standard forced air convection ovens are programmable and come with extended functions and safety features.

Best seller based on excellent performance & affordability

Superior temperature accuracy

DKN302/402/602/612 come with observation windows

Programmable PID controller for easy program settings 30-step, 3-pattern program controller with repeat functions

Fixed setting, programmed, Quick Auto stop, Auto stop, and Auto start operating modes with easy control capabilities

Increased safety and Self-diagnostic function

Over-heating prevention and calibration off-set are possible with auxiliary functions

Easy to use and maintain

Built in exhaust ports

Self diagnosis functions (Temperature sensor abnormal, Heater disconnection, SSR-short) Automatic overheating prevention, Electric leakage breaker with over current protection, Key lock function

Specifications

Item Code

212874

Model

DKN812

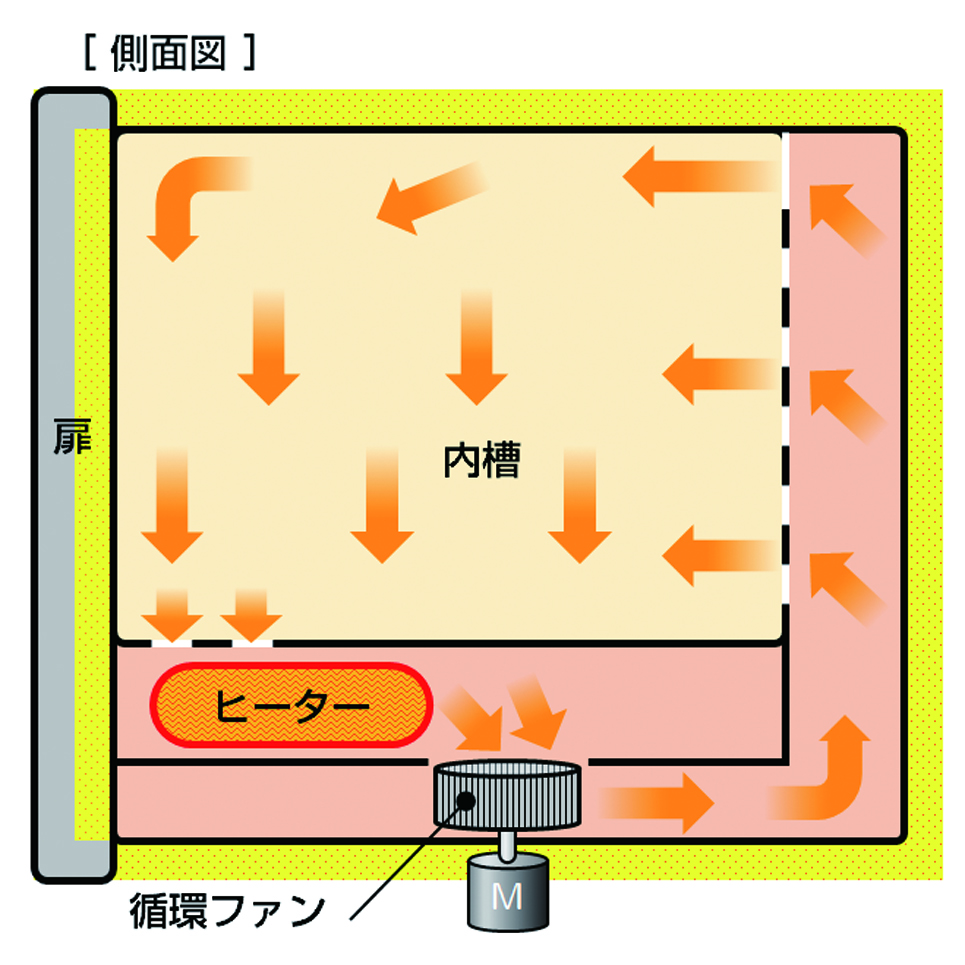

Circulation method

Forced air circulation

Operating temperature range

Room temp. +10°C to 210°C

Temp. adjustment accuracy

±1℃（at 210℃）

Temp. distribution accuracy

±2.5℃（at 210℃）

Max. temp. reaching time

Approx. 60min.

Interior/Exterior material

Stainless steel / Cold rolled steel plate with melamine resin baking finish

Heat insulating material

Glass wool

Heater

Stainless pipe heater

Heater

1.2kW x 2

Fan Type / Fan Motor

Scirocco fan / condenser type motor x 1pc

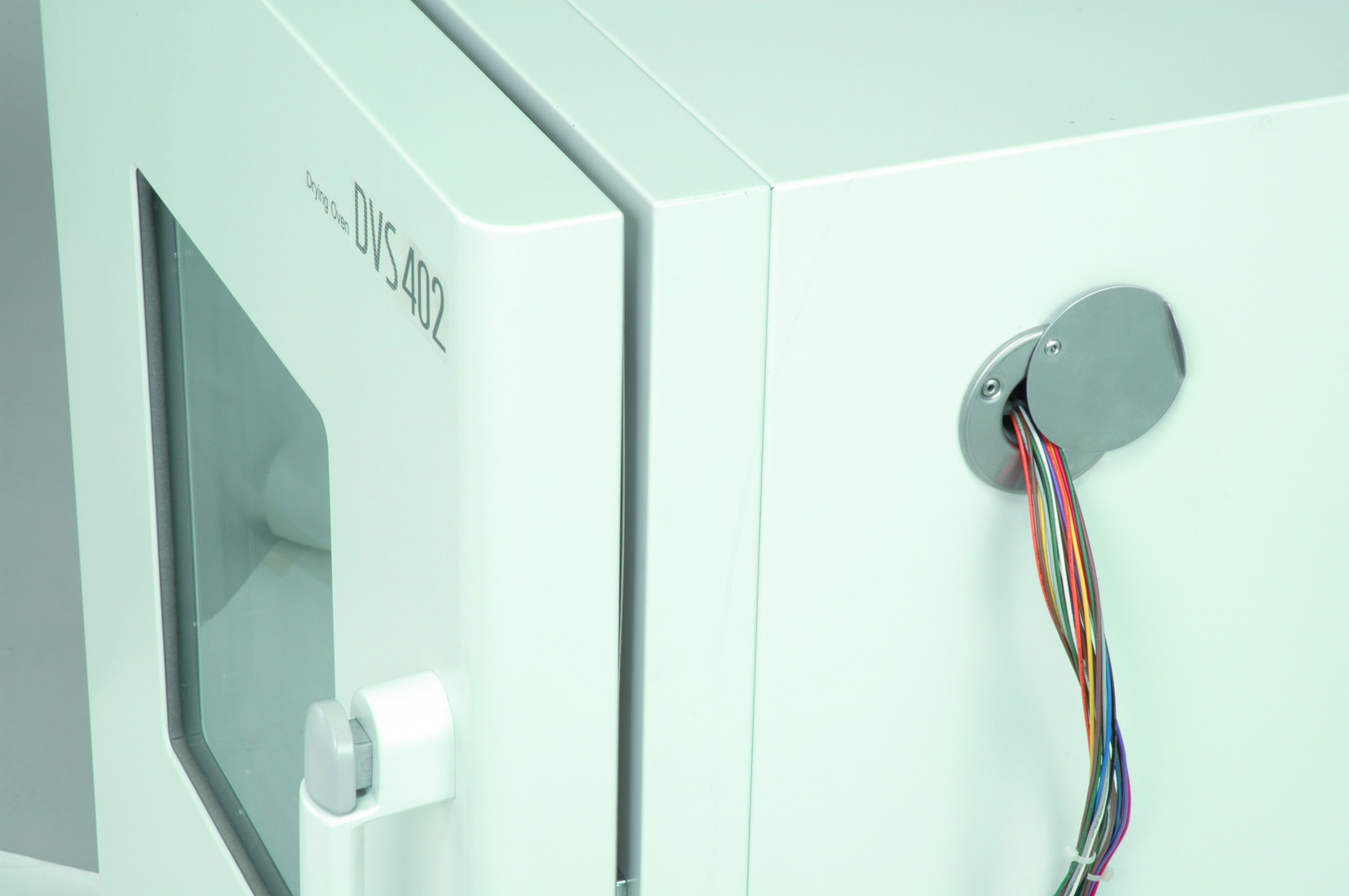

Cable hole

30mm I.D. (on the right side) 1pc.

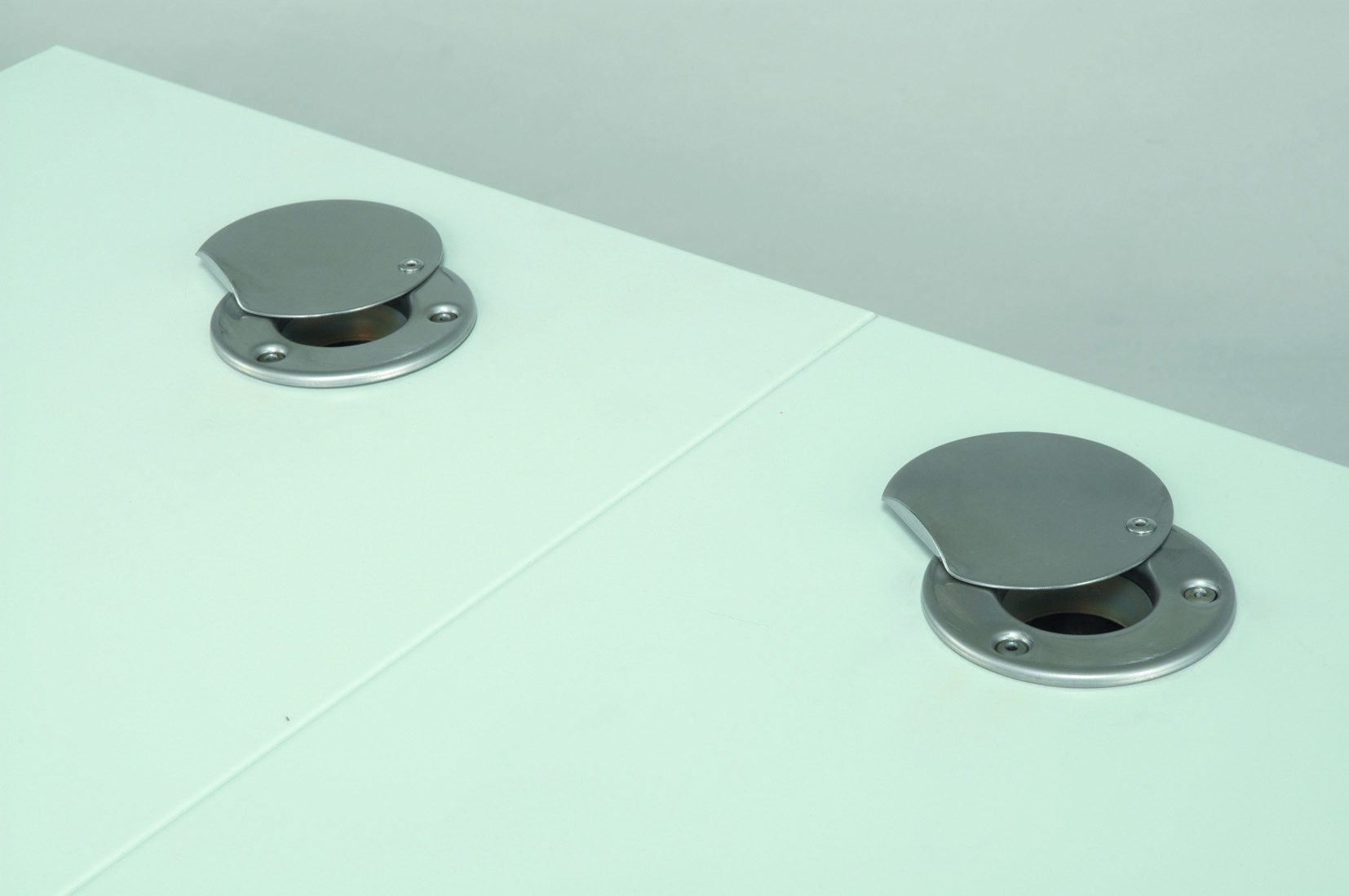

Exhaust port

30mm I.D. x 2 (the back)

Observation window

None

Temp. controller

PID control by microprocessor

Temp. setting method

Digital setting by UP/DOWN key

Temp. display

Measurement temp. : Digital display by green LED Setting temp. : Digital display by red LED

Timer

1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min. with timer wait function

Operation function

Fixed temperature operation, Program operation, Auto start, Quick Auto-stop

Program mode

Program operation : 30 steps (30 steps×1, 15 steps×2, 10 steps×3) Pattern repeat function

Additional functions

Calibration off-set function, Key lock, Uninterruptible power for memory

Heater circuit control

SSR control

Sensor

K-thermocouple

Safety device

Self diagnosis functions (temp. sensor abnormal, Heater disconnection, SSR- short, Automatic overheating prevention), Key lock function, Overheat prevention, Electric leakage breaker with over current protection

Shelf plate with standard load

~15kg/piece

Shelf support step number/pitch

29 steps / 30mm

Shelf plate

Stainless steel, 1pc on the bottom screwed

Shelf plate / support

4 pcs. / 8 pcs.

Internal dimensions（W×D×H mm）

600×500×1000mm

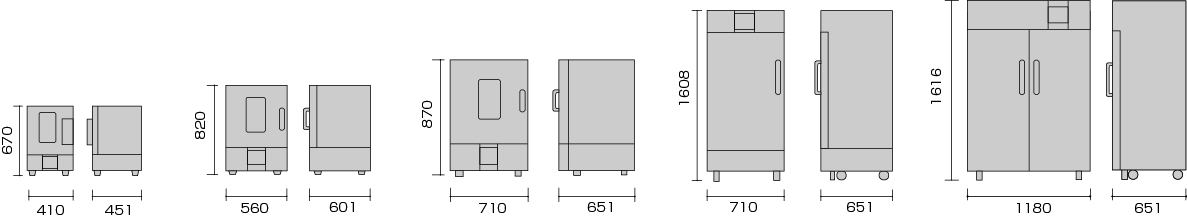

External dimensions（W×D×H mm）

710×651×1608mm
