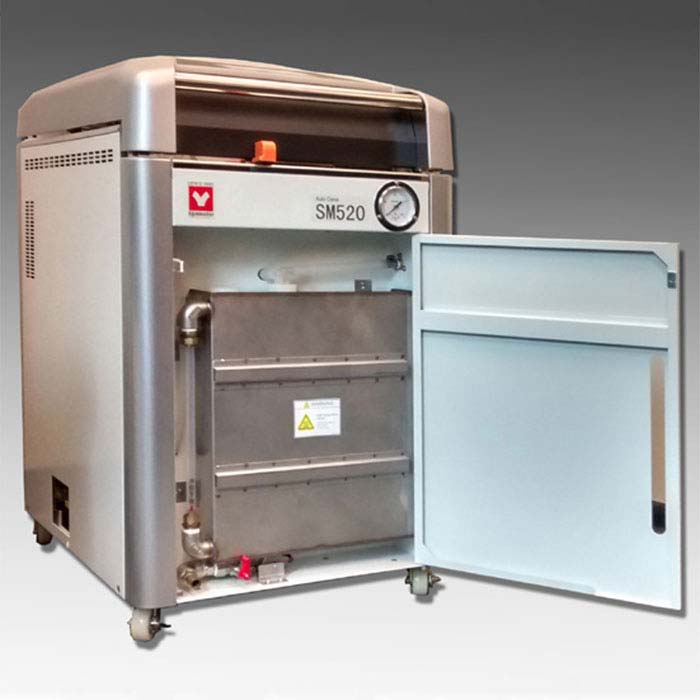

Steam Sterilizer (Laboratory Use, with Drying Process)

Steam Sterilizer (Laboratory Use, with Drying Process)(SM520 *Limited product for overseas)

Item Code：00

Model：SM520 *Limited product for overseas

Power Source：AC100～120V13.5A ～25A

Origin：Japan

Contact Us Printing

Product Summary

Fully automatic, Easy setting by interactive touch panel, Drying function

Features

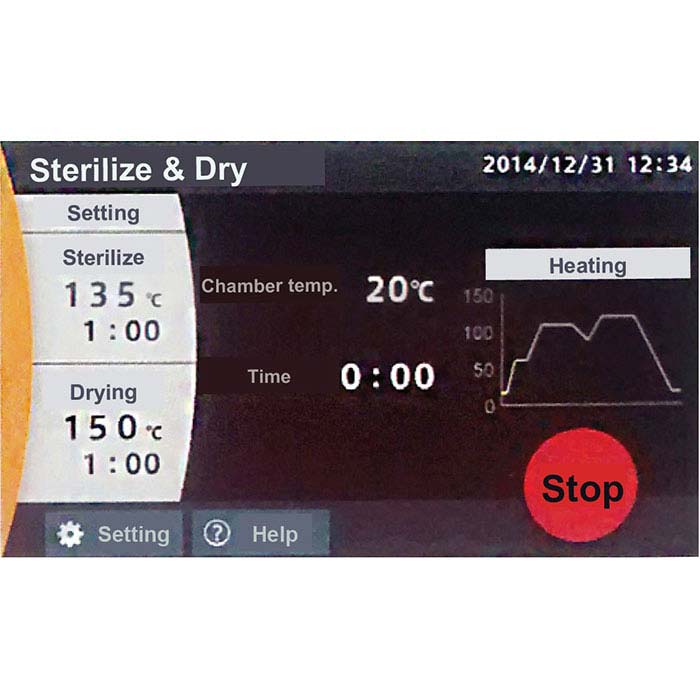

7" Interactive touch panel enables the easy sterilization setting

Suitable for protein modification at the max. temperature 135℃

Variety of safety functions

Fully automatic operation from steam sterilization to drying process

Specifications

Item Code

00

Model

SM520 *Limited product for overseas

System

Automatic high-pressure steam sterilization

Operating temp. range (Sterilization)

105～135℃

Operating temp. range (Drying)

135～150℃

Max. pressure capacity

0.255MPa

Operable ambient temp.

5～35℃

Lid

Manual upward opening with an interlock for safety

Temp. controller

PID control by microprocessor

Temp. display / setting

Touch panel type

Timer / Timer resolution

0 or 1 min. to 99 hrs 59 min. / 1 minute

Safety device

Sensor error, SSR short circuit, Heater disconnection, Water level, Overheat, Lid unlock, Over-pressure, Setting, Memory, Safety valve

Accessories

2 pcs. stainless steel mesh basket (332dia. x 195.5D), Drain board, Drain bottle, Chemical indicator, Filter, Drain tray, each 1 pc.)

Internal dimensions（φ×H mm）

φ370×470mm

External dimensions（W×D×H mm）

520×660×881mm

Remarks(dimensions)

50L

Power Source

AC100～120V13.5A ～25A

Weight

113kg

Catalog

Optional Items

Stainless solid basket(OSR-60)

Chamber temperature sensor(OSR70)

Sample temperature sensor(OSN16)

Pressure gauge(OSN18)

External alarm output terminal(OSN20)

Temperature output terminal(OSN22)

Time-up output terminal(OSN24)

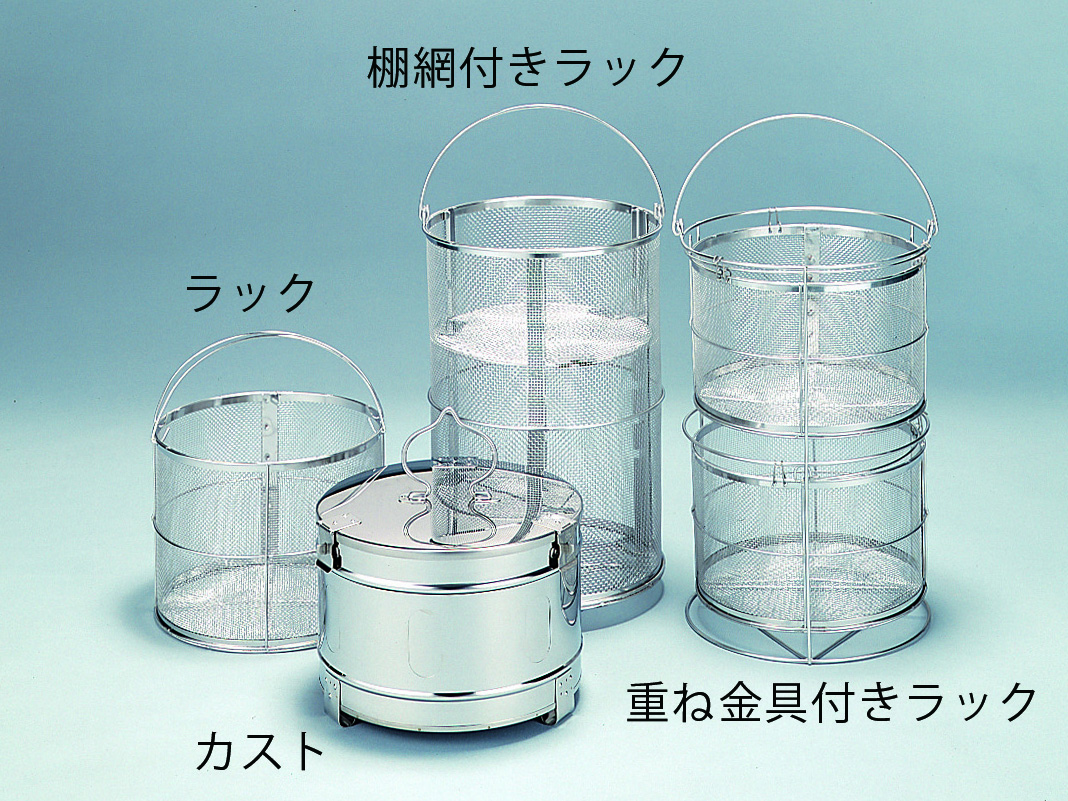

Mesh basket(OSQ-90)

Mesh basket with stacking support(OSR-40)

Mesh basket with a adjustable stainless steel perforated plate(OSR-50)

Stainless bucket(OSN14)

Same Series Product

Steam Sterilizer (Laboratory Use, with Drying Process)(SM201 *Limited product for overseas)

Steam Sterilizer (Laboratory Use, with Drying Process)(SM210 *Limited product for overseas)

Steam Sterilizer (Laboratory Use, with Drying Process)(SM301 *Limited product for overseas)

Steam Sterilizer (Laboratory Use, with Drying Process)(SM311 *Limited product for overseas)

Steam Sterilizer (Laboratory Use, with Drying Process)(SM501 *Limited product for overseas)

Steam Sterilizer (Laboratory Use, with Drying Process)(SM511 *Limited product for overseas)

Steam Sterilizer (Laboratory Use, with Drying Process)(SM820 *Limited product for overseas)

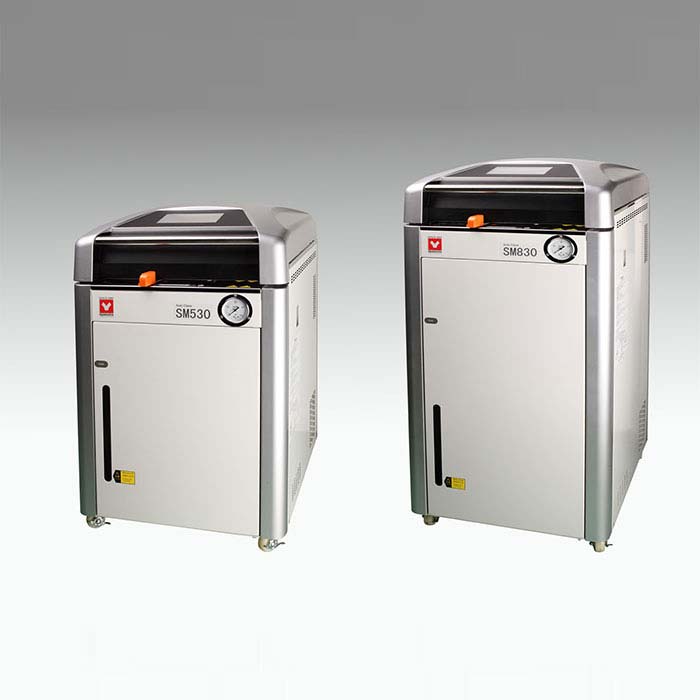

High pressure steam sterilizer(SM830)
