Model selection Table to Constant temperature bath

Origin	Power Source	Remarks(dimensions)	Operating temperature range

Product name	Model	Origin	Power Source	Remarks(dimensions)	Operating temperature range

Overheating Prevention Device	TS310	Japan	AC115V/AC220VSingle-phase with step down transformer
Overheating Prevention Device	TS101	Japan	AC115V/AC220VSingle-phase with step down transformer
Testing Bath	BZ300	Japan		Capacity　27L
Testing Bath	BZ200	Japan		Capacity　20L

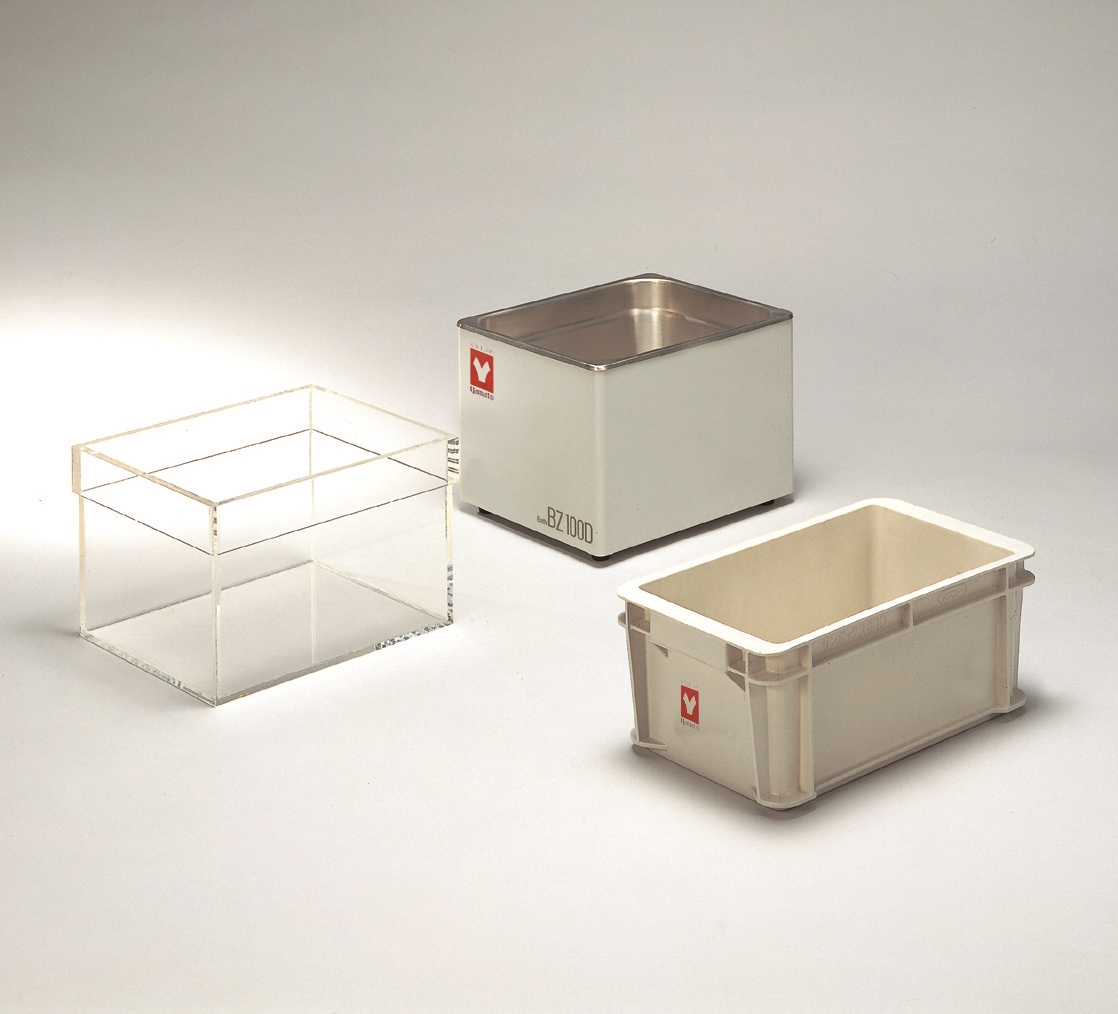

Testing Bath	BZ100D	Japan		Capacity　13L
Testing Bath	BZ100	Japan		Capacity　12L
Testing Bath	BY200	Japan		Capacity　18L
Testing Bath	BY100	Japan		Capacity　8L
Testing Bath	BX200	Japan		Capacity　20L
Testing Bath	BX100D	Japan		Capacity　13L
Testing Bath	BX100	Japan		Capacity　12L
Shaking Water Baths	BW400	Japan	AC220V6ASingle phase with step-down transformer, with BF series	Tank capacity approx.30L	Room temperature + 5 to 80 ° C (with Immersion Type Constant Temperature Devices BF)

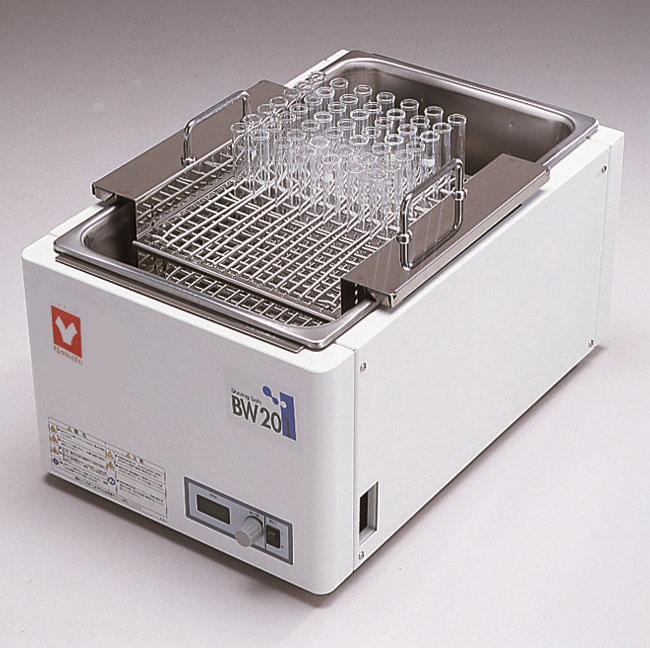

Shaking Water Baths	BW201	Japan	AC220V6ASingle phase with step-down transformer, with BF series	Tank capacity approx.20L	Room temperature + 5 to 80 ° C (with Immersion Type Constant Temperature Devices BF)
Shaking Water Baths	BW101	Japan	AC220V6ASingle phase with step-down transformer, with BF series	Tank capacity approx.12L	Room temperature + 5 to 80 ° C (with Immersion Type Constant Temperature Devices BF)

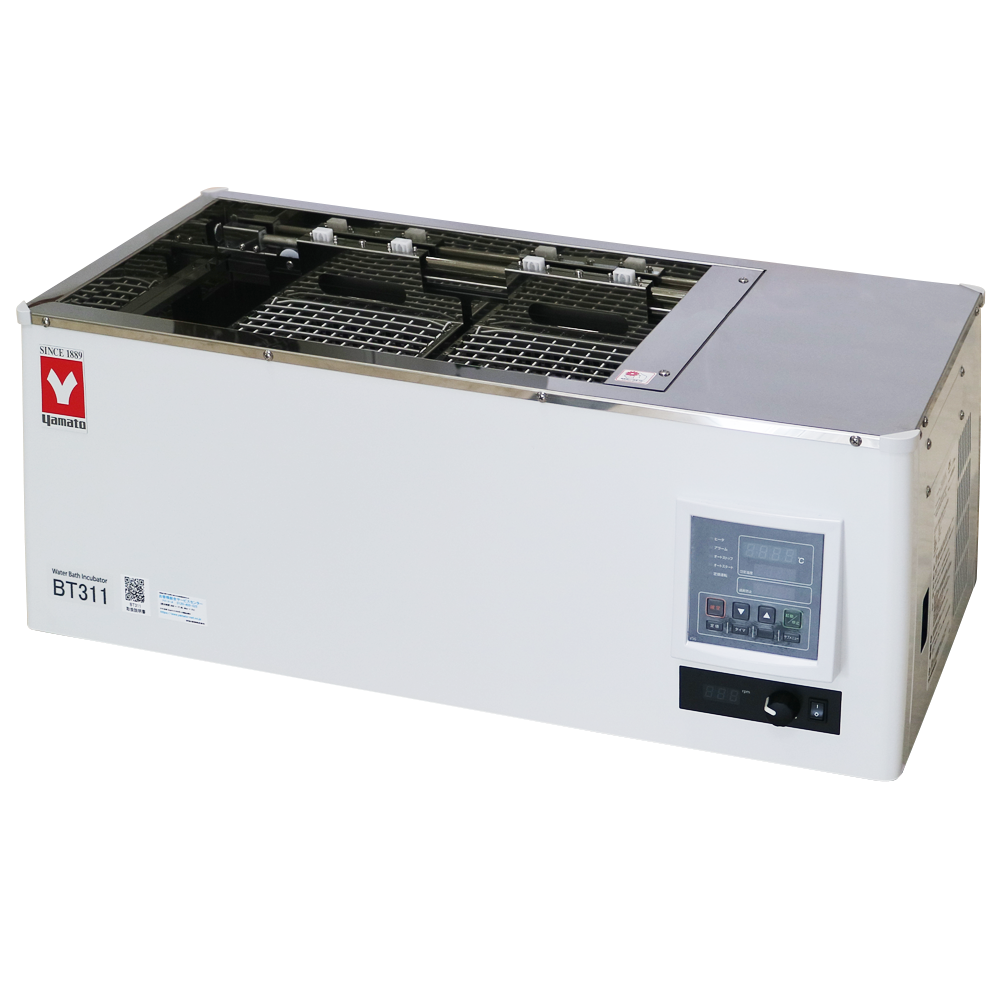

Shaking Water Bath Incubator	BT311	Japan	AC200V14.5A	Internal capacity 34L (When the water is full)	Room temp. +5°C to 80°C（when top cover is installed）
Shaking Incubator	BT220	Japan	AC115V/AC220VSingle-phase with step down transformer	14.7L	Room temp.+5 to 80 deg.C
Shaking Water Bath Incubator	BT101	Japan	Single phase AC100V14A	Internal capacity 19L（When the water is full）	Room temp. +5°C to 80°C（when top cover is installed）
Water Bath (Constant Temp.)	BS660	Japan	AC115V/220VSingle phase	Internal Capacity Approx.14L	Room Temp. +5°C to Boiling Temp. (Water)
Water Bath (Constant Temp.)	BS601	Japan	AC115V/220VSingle phase	Internal Capacity Approx.12L	Room Temp. +5°C to Boiling Temp. (Water)
Water Bath (Constant Temp.)	BS401	Japan	AC115V/220VSingle phase	Effective Inner Dimension L298×W260×D64mm　・Internal Capacity Approx. 9L	Room Temp. +5°C to Boiling Temp. (Water)
Water Bath (Constant Temp.)	BS200	Japan	AC115/220VSingle phase	Internal capacity 4.7L	Room Temp. +5°C to Boiling Temp. (Water)
Oil Bath (Large Capacity)	BOA311	Japan	AC220V21ASingle-phase with step down transformer	External size oil tank height 397mm・Capacity 37L	RT+10~270°C

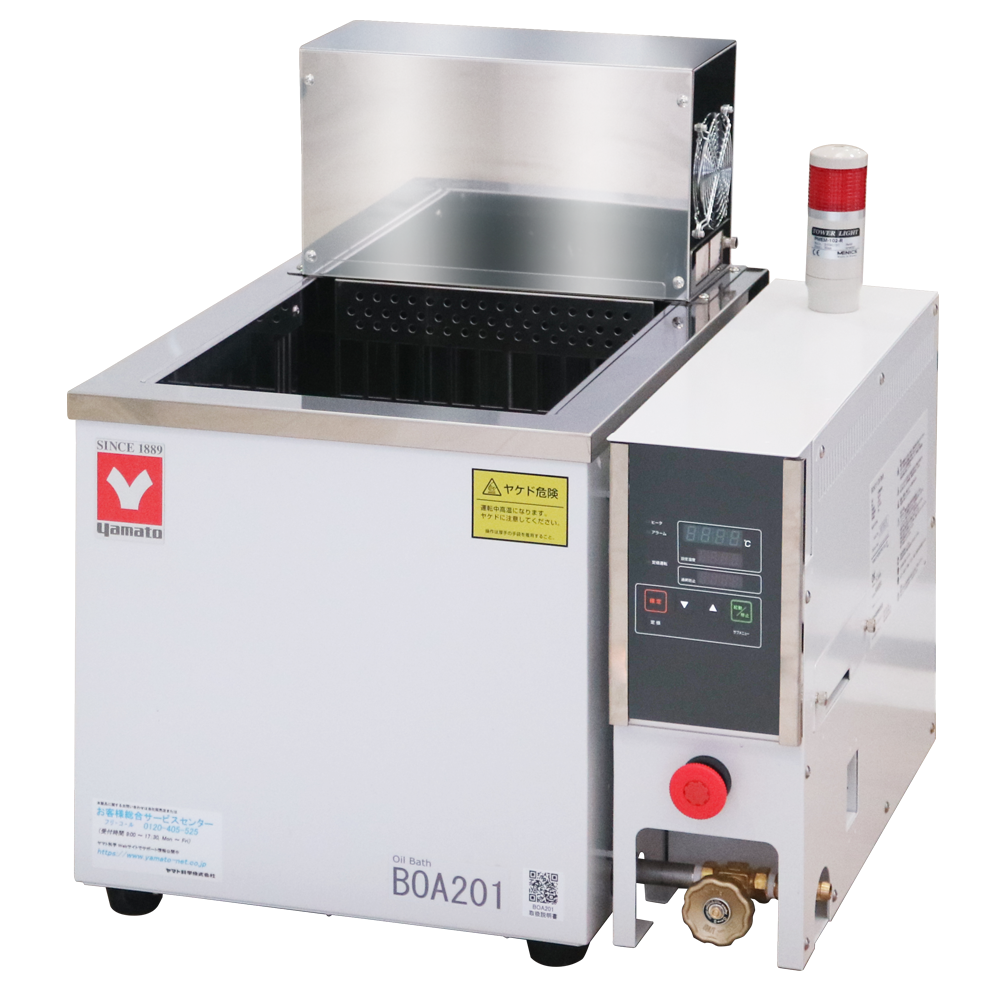

Oil Bath (Large Capacity)	BOA201	Japan	AC220V10ASingle phase with step-down transformer	External size oil tank height 397mm・Capacity 37L	RT+10~200°C

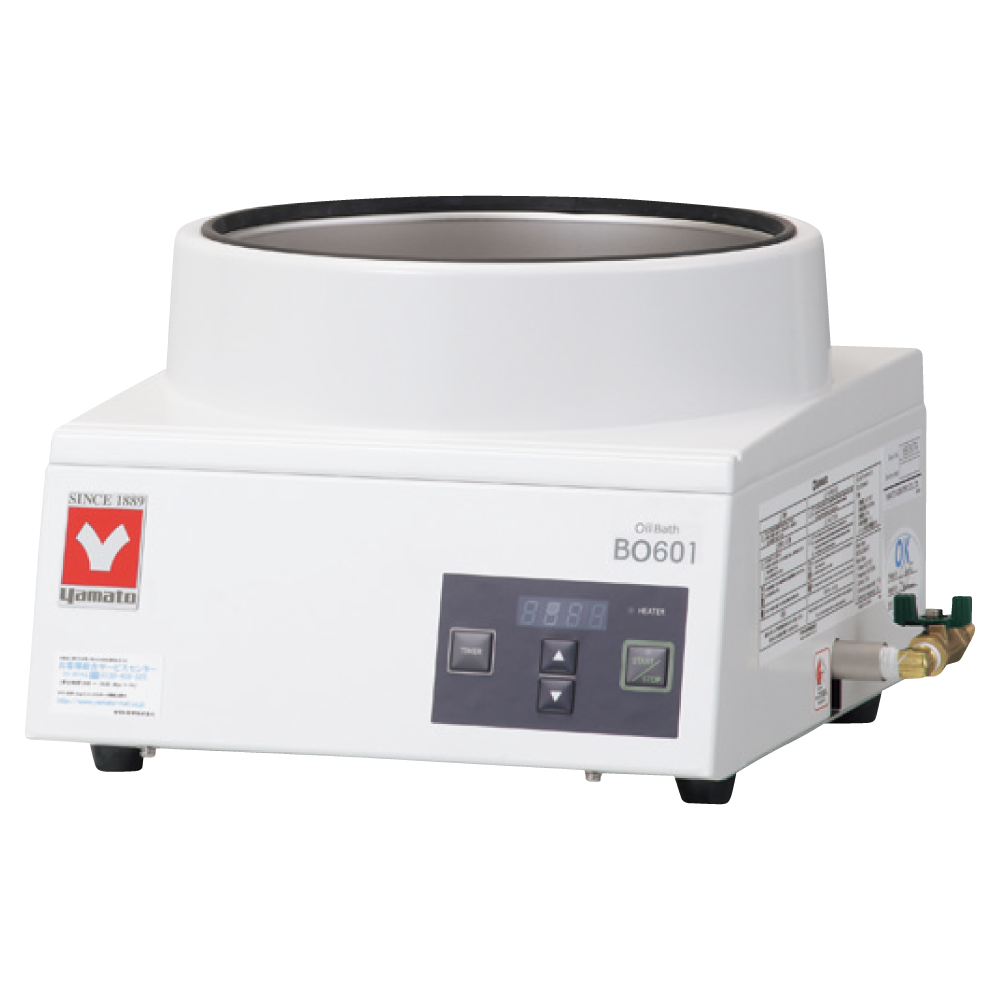

Economical Oil Bath	BO601	Japan	AC220V7ASingle phase	Tank maximum inner diameter 250×D150mm　approx. 7L	Room temp. +5 to 180°C
Economical Oil Bath	BO510C	China	AC200～240V 5.5～6.5A	Approx. 4L	Room temperature +5℃~180℃
Economical Oil Bath	BO500	Japan	AC220VSingle phase with step-down transformer	Tank internal volume approx. 5.2L	Room temp. +5 to 199°C
Economical Oil Bath	BO410	Japan	AC200 to 240V5.5 to 6.5ASingle phase	Tank maximum inner diameter 240× bottom diameter φ165×D122mm　approx.4L	Room temp. +10 to 180°C
Economical Oil Bath	BO400	Japan	AC100 to 120V10.5 to 12.5ASingle phase	approx.4L	Room temp. +10 to 180°C
Oil Bath	BO312-D	Japan	AC200 to 230V5 to 6A(50/60Hz) Service outlet for RE212 : None	Bath internal capacity : Approx.5L	Room temp. +10 to 180°C
Oil Bath	BO302-E	Japan	AC100 to 115V10 to 12A(50/60Hz) Service outlet 2A excluded	Bath internal capacity : Approx.5L	Room temp. +10 to 180°C
Oil Bath	BO302	Japan	AC100 to 115V10A	Bath internal capacity : Approx.5L	Room temp. +10 to 180°C
Shaking Unit	BN300	Japan	AC115V/AC220VSingle-phase with step down transformer
Economical Water Bath (Constant Temp.)	BM510	Japan	AC200 to 240V5.5 to 6.5ASingle phase	Approx. 4L	Room temp. +5~90°C
Economical Water Bath (Constant Temp.)	BM510C	China		Approx. 4L	RT+5℃~90℃

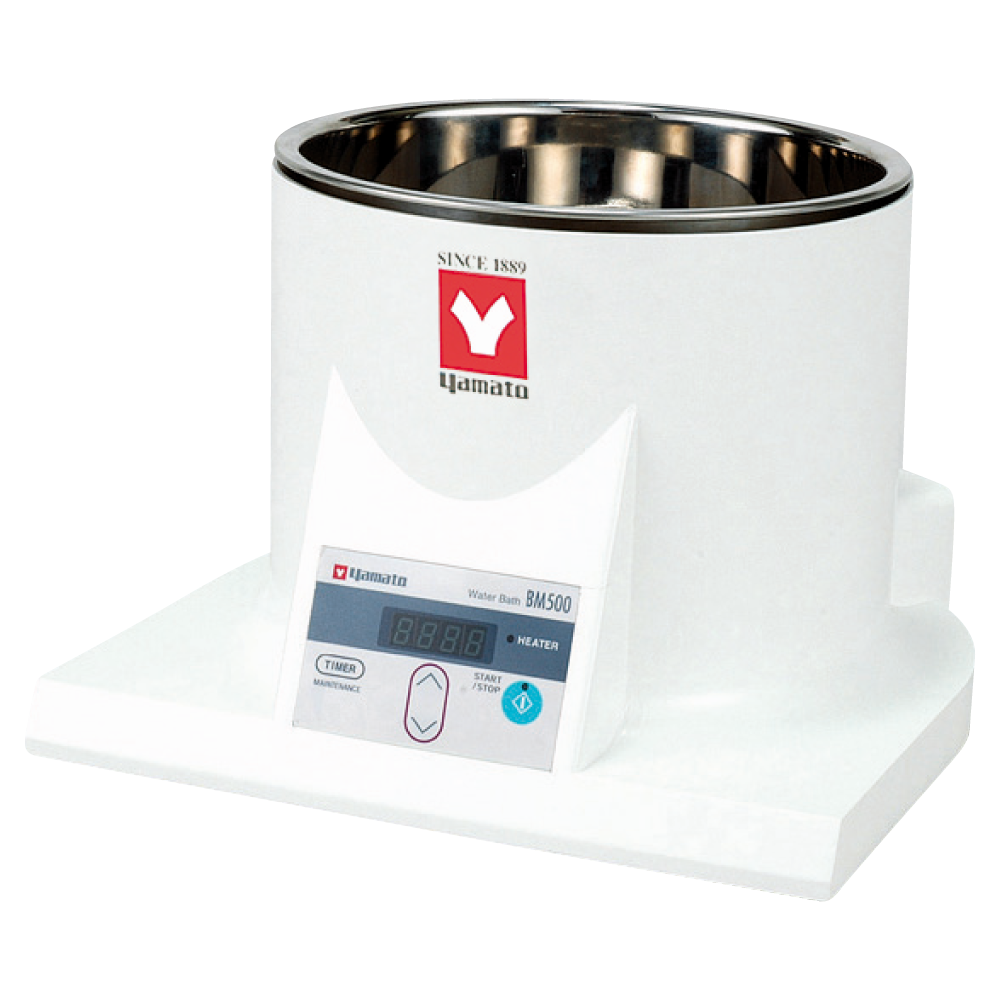

Economical Water Bath (Constant Temp.)	BM500	Japan	AC100 to 120V10.5 to 12.5ASingle phase	Approx. 4L	Room temp. +5~90°C
Economical Water Bath (Constant Temp.)	BM401	Japan	AC115V/220VSingle phase with step-down transformer	Water bath　Approx. 7L	Room temp. +5~95°C
Water Bath (Constant Temp.)	BM312-D	Japan	AC200 to 230V5 to 6A(50/60Hz) Service outlet for RE212 : None	Bath internal capacity : Approx. 5L	Room temp. +10~90°C
Water Bath (Constant Temp.)	BM302-E	Japan	AC100 to 115V10 to 12A(50/60Hz) Service outlet 2A excluded	Bath internal capacity : Approx. 5L	Room temp. +10~90°C
Water Bath (Constant Temp.)	BM302	Japan	AC100 to 115V10 A	Bath internal capacity : Approx. 5L	Room temp. +10~90°C
Economical Water Bath (Constant Temp.)	BM200	Japan	AC115V/220VSingle phase with step-down transformer	Water bath Approx. 7L	Room temp. +5~95°C
Economical Water Bath (Constant Temp.)	BM100	Japan	AC115V/220VPaddle switch	Water bath Approx. 4L	Room temp. +5~95°C

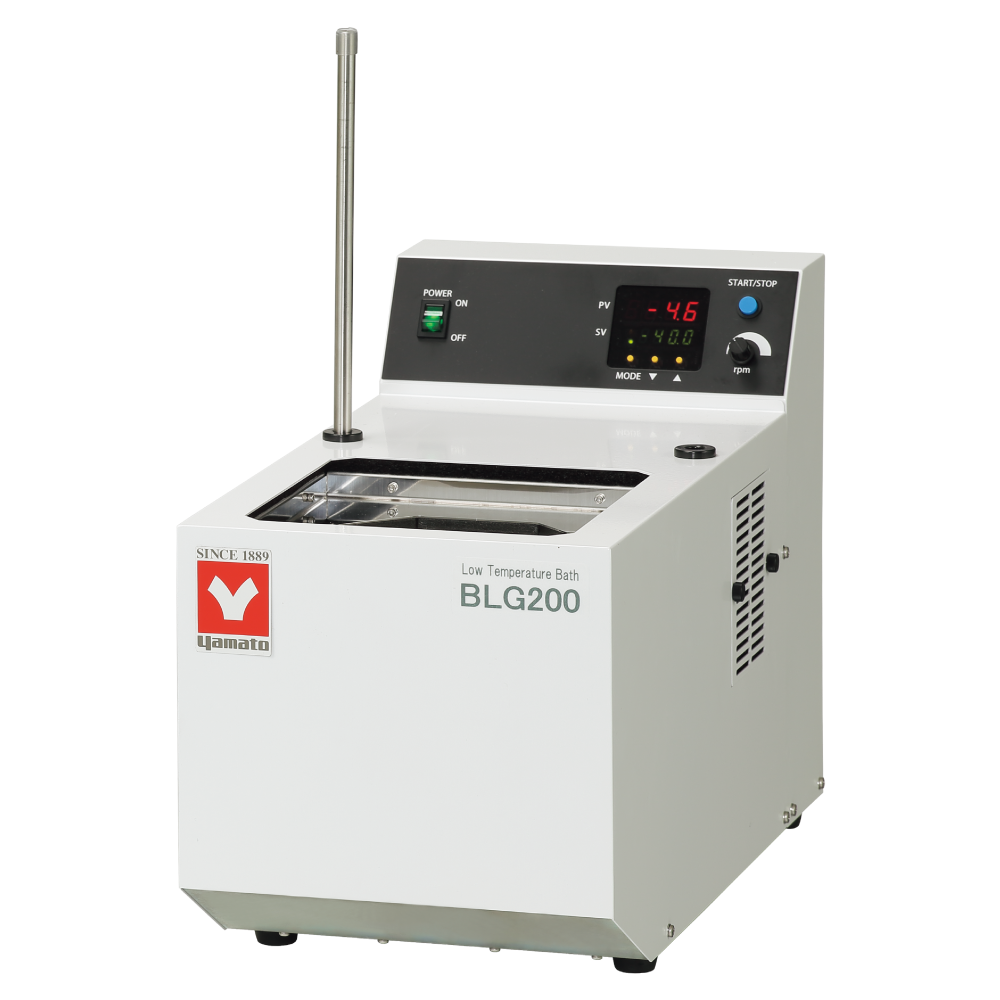

Low Temperature Baths	BLG200	Japan	AC115V / AC220VSingle phase with step-down transformer	Aluminum made/ approx. 1000ml	-40°C to 0°C (at ambient temp. of 23°C ± 5°C)
Low Temperature Baths	BLG100	Japan	AC115V / AC220VSingle phase with step-down transformer	Aluminum made/ approx. 300ml	-80°C to 0°C (at ambient temp. of 23°C ± 5°C)

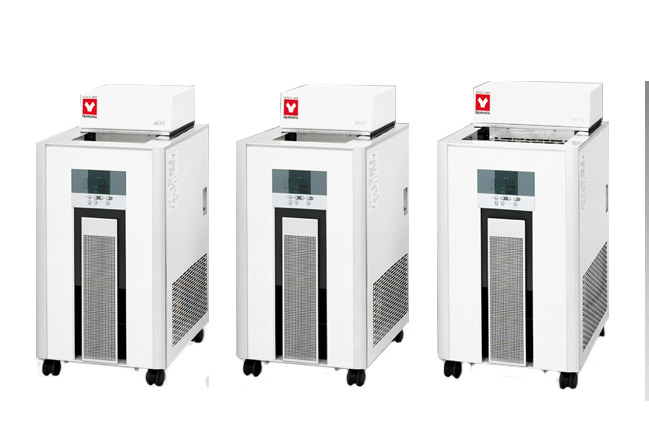

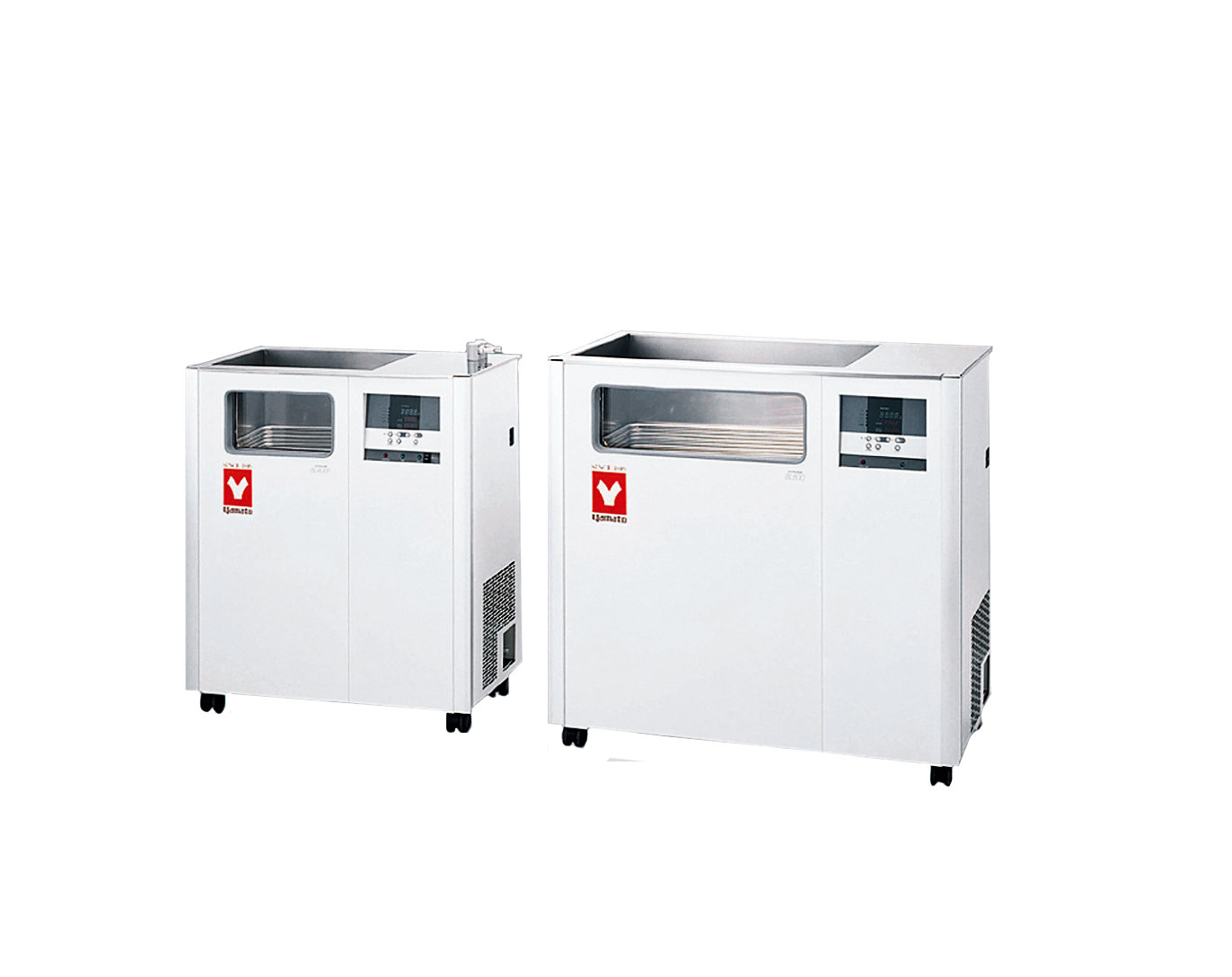

Water Bath (Low Constant Temp., Large Capacity)	BL810	Japan	AC220V15ASingle-phase with step down transformer	80L (Approx. 72 L of liquid)	-15~+70°C
Water Bath (Low Constant Temp., Large Capacity)	BL810C	China	AC220V 14A	80L	-15~70℃
Water Bath (Low Constant Temp., Large Capacity)	BL410C	China	AC220V 8.5A	36L	-15~70℃
Water Bath (Low Constant Temp., Large Capacity)	BL401	Japan	AC220V9ASingle-phase with step down transformer	36L (Approx. 31 L of liquid)	-15~+70°C

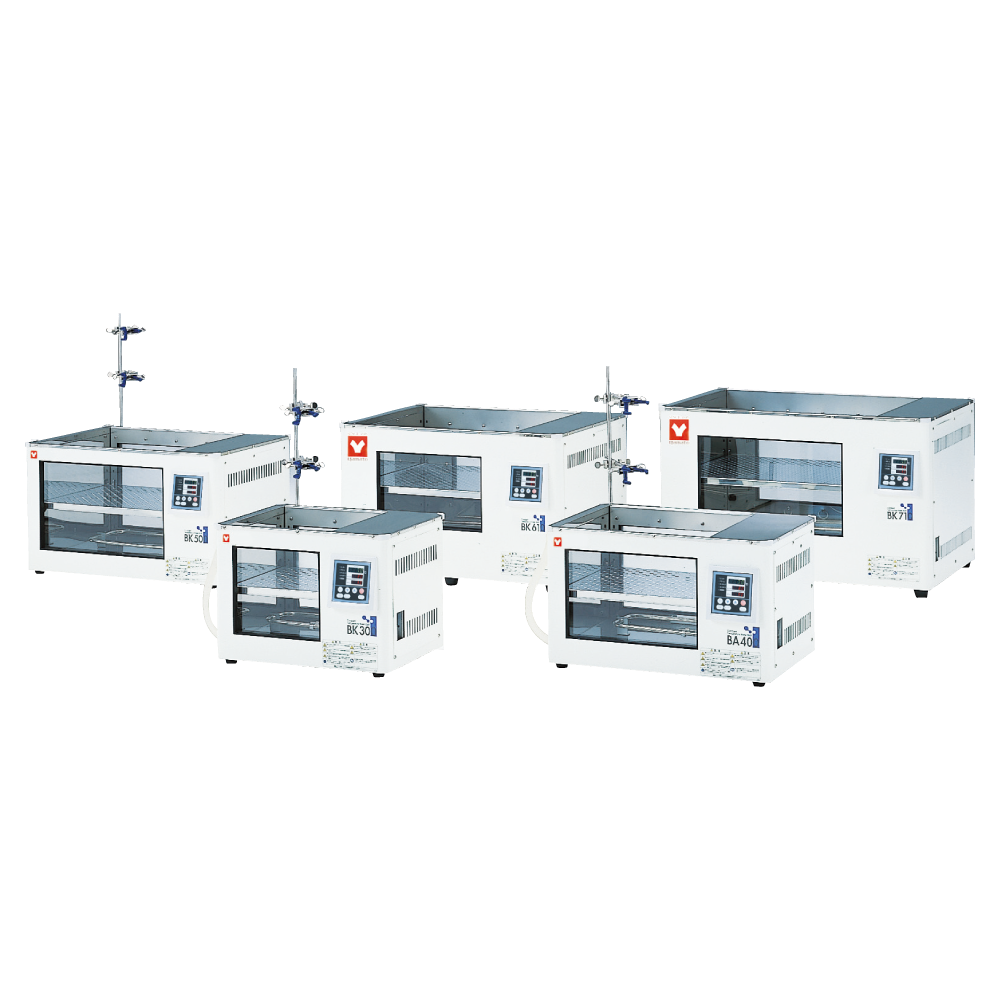

Water Bath (Precision Constant Temp.)	BK710	Japan	AC220V23ASingle phase	Bath Capacity Appox.144L	RT+5~80°C
Water Bath (Precision Constant Temp.)	BK710C	China	AC220V 7A	Approx. 144L	Room temp. +5 ~ 80℃
Water Bath (Precision Constant Temp.)	BK610	Japan	AC220V18ASingle phase	Bath Capacity Appox.109L	RT+5~80°C
Water Bath (Precision Constant Temp.)	BK610C	China	AC220V 17A	Approx. 109L	Room temp. +5 ~ 80℃
Water Bath (Precision Constant Temp.)	BK510C	China	AC220V 12A	Approx. 70L	Room temp. +5 ~ 80℃
Water Bath (Precision Constant Temp.)	BK500	Japan	AC220V12ASingle phase	Bath Capacity Appox. 70L	RT+5~80°C
Water Bath (Precision Constant Temp.)	BK410C	China	AC220V 11A	Approx. 42L	Room temp. +5 ~ 80℃
Water Bath (Precision Constant Temp.)	BK400	Japan	AC220V11ASingle-phase	Bath Capacity Appox. 42L	RT+5~80°C
Water Bath (Precision Constant Temp.)	BK310C	China	AC220V 7A	Approx. 27L	Room temp. +5 ~ 80℃
Water Bath (Precision Constant Temp.)	BK300	Japan	AC220V7ASingle phase	Bath Capacity Appox. 27L	RT+5~80°C

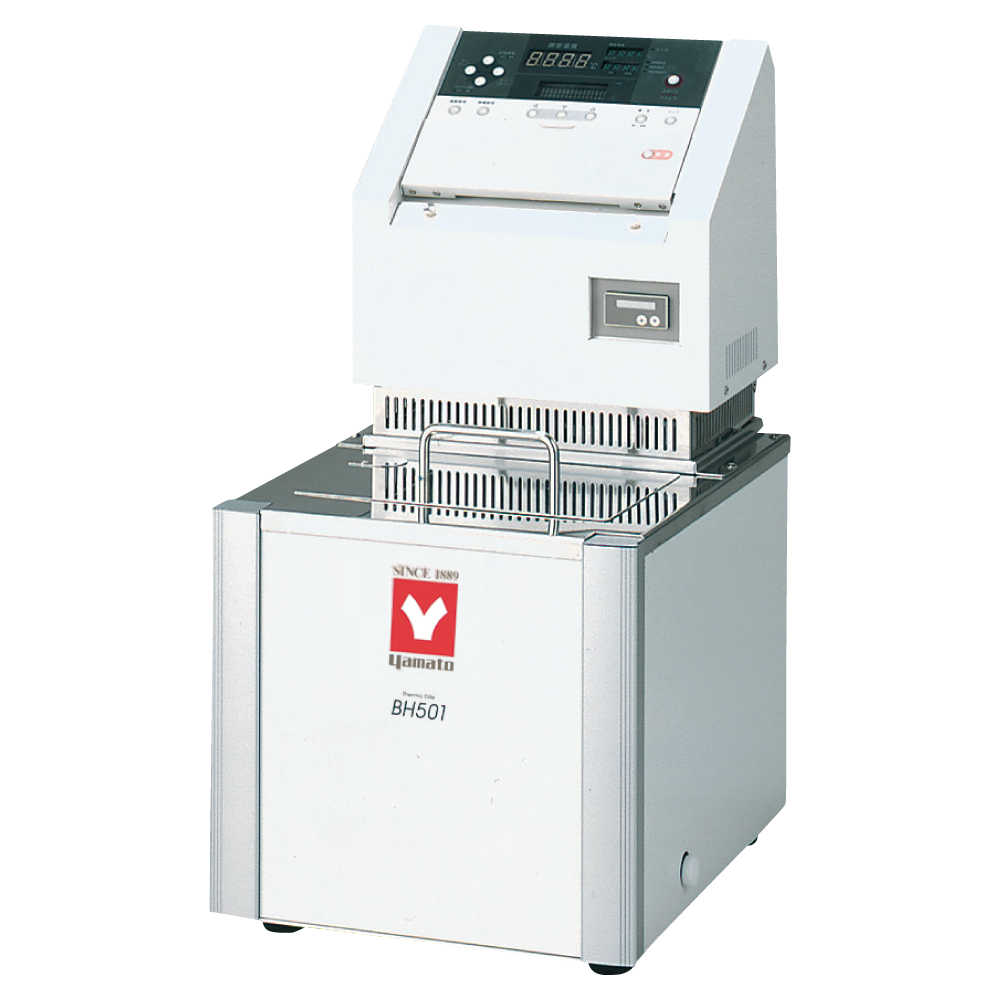

Water Bath (High Precision Constant Temp., Programmable)	BH501	China	AC220V6ASingle-phase with step down transformer	Internal capacity 13L（Liquid volume approx. 10L）	RT+15~200°C
Water Bath (High Precision Constant Temp., Programmable)	BH401	Japan	AC220V5ASingle-phase with step down transformer	Internal capacity13L（Liquid volume approx.10L）	RT+15~100°C
Water Bath (High Precision Constant Temp., Programmable)	BH302	Japan	AC115V/AC220VSingle-phase with step down transformer	30L (liquid volume approx. 20L)	-20deg.C to 80deg.C
Immersion Constant Temperature Devices	BF601	Japan	AC220V6ASingle-phase with step down transformer		Room Temp. +5 to 180deg.C
Immersion Constant Temperature Device	BF501	Japan	AC220V5ASingle-phase with step down transformer		Room Temp. +5 to 80deg.C

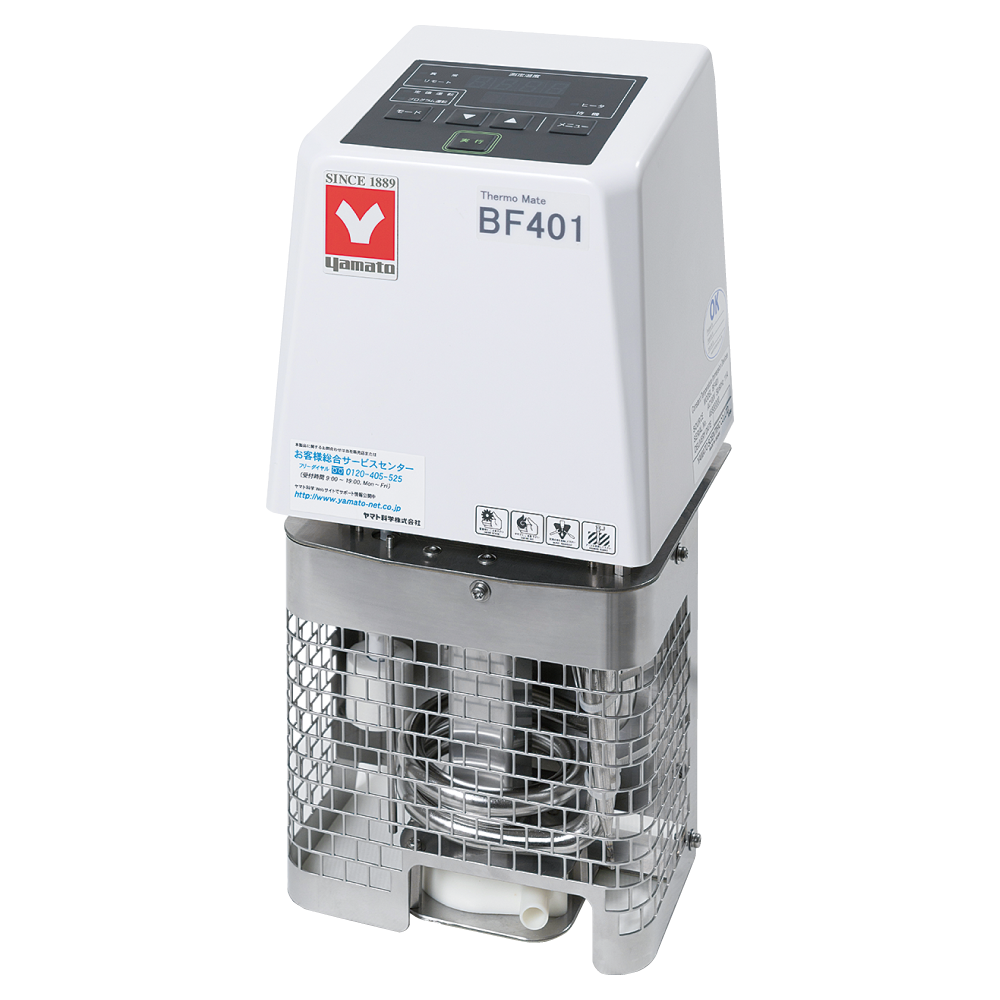

Immersion Constant Temperature Device	BF401	Japan	AC220V5ASingle-phase with step down transformer		Room Temp. +5 to 80deg.C
Immersion Constant Temperature Device	BF201	Japan	AC220V5ASingle-phase with step down transformer		Room Temp. +5 to 80deg.C
Immersion Cooler	BE301	Japan	AC115V/AC220VSingle phase with step-down transformer		-20 to +35°C
Immersion Cooler	BE201F	Japan	AC115V/AC220VSingle phase with step-down transformer		-20 to +35°C
Immersion Cooler	BE201	Japan	AC115V/AC220VSingle phase with step-down transformer		-20 to +35°C

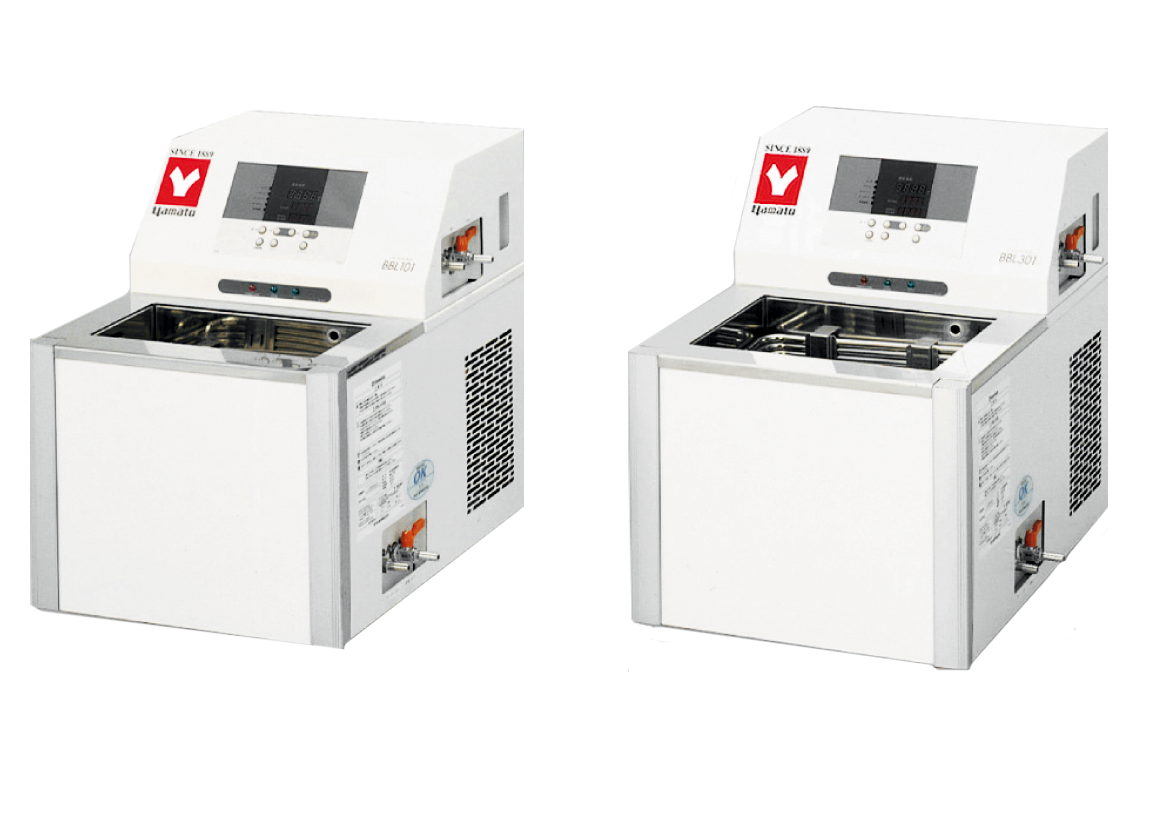

Water Bath (Low Constant Temp.)	BBL311C	China	AC220V 6A	Bath capacity (effective) 13L（11.5L）	-10～80℃
Water Bath (Low Constant Temp.)	BBL301	Japan	AC220V6ASingle-phase with step down transformer	Bath capacity (effective)　13(11.5)L	-10~+80°C (at room temperature 20°C)
Water Bath (Low Constant Temp.)	BBL111C	China	AC220V 5A	Bath capacity (effective)8L（6.75L）	-10～80℃
Water Bath (Low Constant Temp.)	BBL101	Japan	AC220V5ASingle-phase with step down transformer	Bath capacity (effective)　8(6.75)L	-10~+80°C (at room temperature 20°C)
Water Bath (Low Constant Temp.)	BB611C	China	AC220V 10A	26L	-30～80℃
Water Bath (Low Constant Temp.)	BB601	Japan	AC220V10ASingle-phase with step down transformer	Bath capacity 26L	-30 to +80°C
Water Bath (Low Constant Temp.)	BB411C	China	AC220V 7A	13L	-30～80℃
Water Bath (Low Constant Temp.)	BB401	Japan	AC220V6ASingle-phase with step down transformer	Bath capacity 13L	-30 to +80°C
Water Bath (Low Constant Temp.)	BB311C	China	AC220V 7A	6L	-30～80℃
Water Bath (Low Constant Temp.)	BB301	Japan	AC220V6ASingle-phase with step down transformer	Bath capacity 6L	-30 to +80°C
Water Bath (Precision Constant Temp., Programmable)	BA710	Japan	AC220V23ASingle phase	Bath Capacity Appox.144L	RT+5~80°C
Water Bath (Precision Constant Temp., Programmable)	BA710C	China	AC220V	Approx. 144L	Room temp. +5 ~ 80℃
Water Bath (Precision Constant Temp., Programmable)	BA610	Japan	AC220V18ASingle phase	Bath Capacity Appox. 109L	RT+5~80°C
Water Bath (Precision Constant Temp., Programmable)	BA610C	China	AC220V 17A	Approx. 109L	Room temp. +5 ~ 80℃
Water Bath (Precision Constant Temp., Programmable)	BA510C	China	AC220V 12A	Approx. 70L	Room temp. +5 ~ 80℃
Water Bath (Precision Constant Temp., Programmable)	BA500	Japan	AC220V12ASingle phase	Bath Capacity Appox. 70L	RT+5~80°C
Water Bath (Precision Constant Temp., Programmable)	BA410C	China	AC220V 11A	Approx. 42L	Room temp. +5 ~ 80℃
Water Bath (Precision Constant Temp., Programmable)	BA400	Japan	AC220V11ASingle phase	Bath Capacity Appox. 42L	RT+5~80°C
Water Bath (Precision Constant Temp., Programmable)	BA310C	China	AC220V 7A	Approx. 27L	Room temp. +5 ~ 80℃
Water Bath (Precision Constant Temp., Programmable)	BA300	Japan	AC220V7ASingle phase	Bath Capacity Appox. 27L	RT+5~80°C
