Method
Reciprocating shaking system, Stirring by pump
Operating temperature range

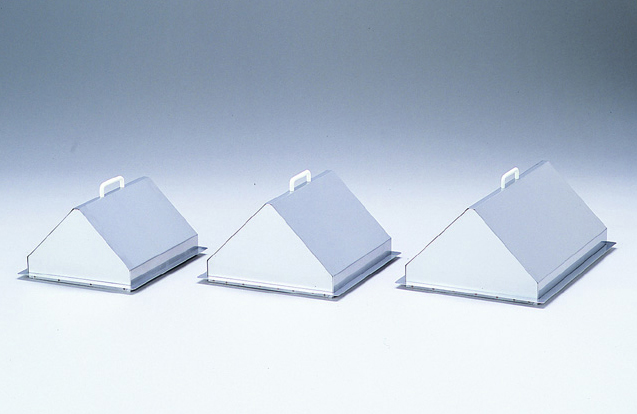

Room temp. +5°C to 80°C(when top cover is installed)
Temperature control accuracy
±0.02°C to 0.08°C
Temperature distribution accuracy
±0.1°C
Temperature rising time
Approx. 95 min.
Shaking frequency
20 to 160 times/min
Shaking width
10 to 40mm (adjustable)
Material (Interior)
Stainless steel
Temp. Controller
PID control by microprocessor
Temp. Sensor
Platinum resistance temperature detector Pt100Ω (for temperature control) / K thermocouple (for overheating inhibitor)
Temp setting/display method
Digital setting
Overheat protector
ON/OFF control by microprocessor
Overheat protect setting method
Digital setting
Heater
Copper pipe heater (nickel plated) 1.2kW
Stirring System
Magnet pump 6W
Shaking speed setting system
Analog setting
Shaking speed display system
Digital display
Timer
1 min. to 99 hr. 59 min. Digital display, Quick automatic start/stop
Safety countermeasures
Self-diagnosis function(Heater defective, Sensor defective, SSR short circuit and Overheat protector)
Safety countermeasures
over current, short circuit breaker, Heater no-load operation prevention device and overheat protector.
Container flame number, Test tube
Dia : 16.5mm, Length : 150 to 200mm(JIS) 130 pcs.
Flask
Round, Erlenmeyer flask 100/300/500ml, 12/5/3pcs.
Shaking Rack (Dimensions W×D×Hmm)
1 pc. 290×220×170 (268×200×150)
Spring Pitch
20mm (both length and width)
Internal dimensions(W×D×H mm)
302×350×250mm
External dimensions(W×D×H mm)
579×414×325mm
Remarks(dimensions)
Internal capacity 19L(When the water is full)
Power Source
Single phase AC100V14A
