Water Bath (Constant Temp.)

Water Bath (Constant Temp.)(BS401)

Item Code：222065

Model：BS401

Power Source：AC115V/220VSingle phase

Origin：Japan

Product Summary

Standard equipped with Overheat Prevention Device, Electric Leakage Breaker

Features

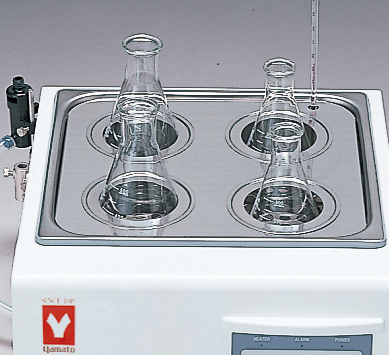

Can use 4pcs. of Condensers simultaneously. test

Specifications

Item Code

222065

Model

BS401

Operating temperature range

Room Temp. +5°C to Boiling Temp. (Water)

Temp. Adjustment Accuracy

±3°C (at 70°C )

Temp. Distribution Accuracy

±5°C (at 70°C )

Time to Reach to Constant Max. Temp

Approx. 40min

Inner Bath

Stainless Steel

Heater

Copper Pipe Heater (Nickel Plated) 1.3kW

Safety Countermeasure

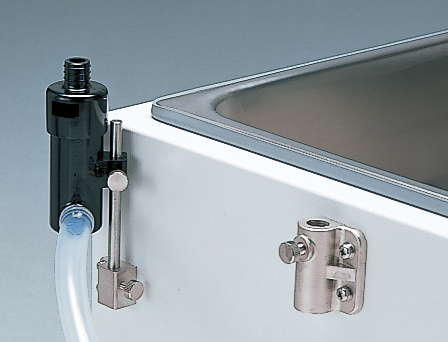

Overheat Prevention System (Liquid Expansion Type, Self Sustaining Relay, Alarm Lamp On) Electric Leakage Breaker with Over Current Protection (Power Lamp On at the time System On)

Opening Size, Q’ty

φ115mm, 4pcs

Accessory

Ring (Not including BS200), Lid, Container Fixing Clamp, Stand, Bar for Clamp Fixing (Not including BS200), Connector for Stand, Thermometer (-10 °Cto +110°C Alcohol Type), Bottom Plate, Basket (Only for BS200)

Internal dimensions（W×D×H mm）

328×302×99mm

External dimensions（W×D×H mm）

390×438×214mm

Remarks(dimensions)

Effective Inner Dimension L298×W260×D64mm　・Internal Capacity Approx. 9L

Power Source

AC115V/220VSingle phase

Weight

9.5kg
