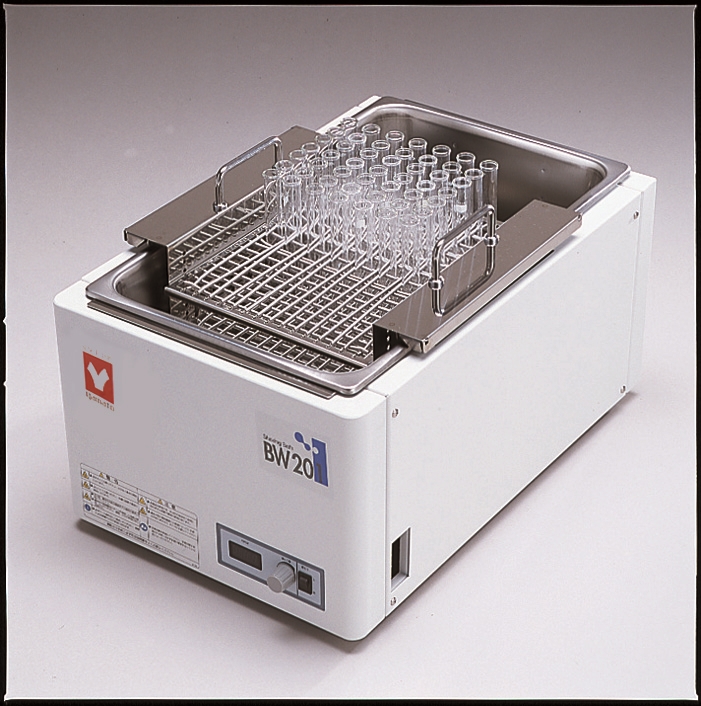

Shaking Water Baths

Shaking Water Baths (BW101)

Item Code：221503

Model：BW101

Power Source：AC220V6ASingle phase with step-down transformer, with BF series

Origin：Japan

Product Summary

Shaking width is adjustable between 10 to 40mm.

Features

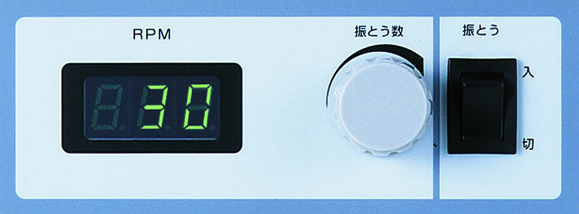

Shaking frequency can be digital-displayed for all models.

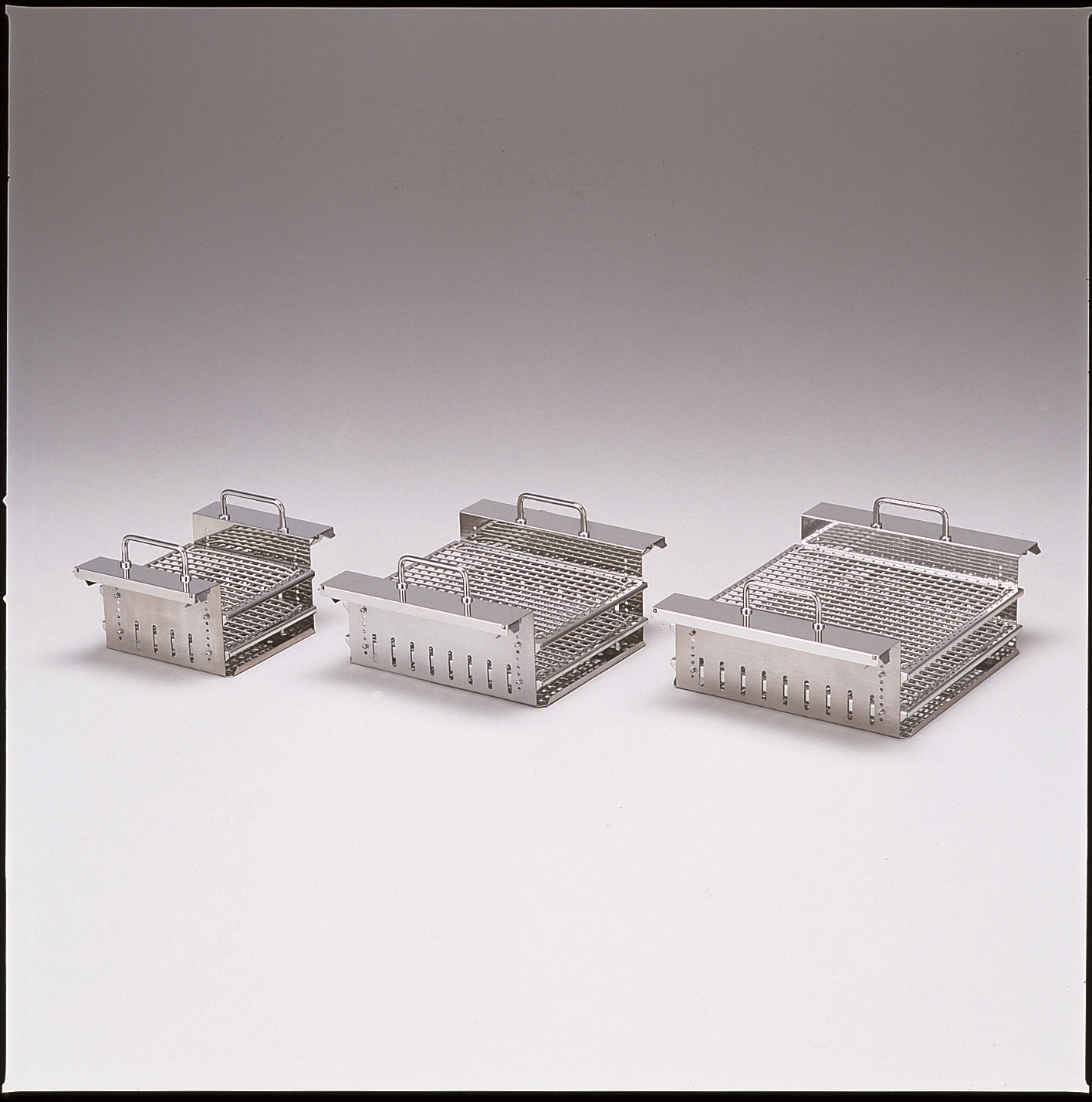

Shaking rack is double spring type to hold test tubes or flasks well.

Drain pump is attached for BW201, BW400.

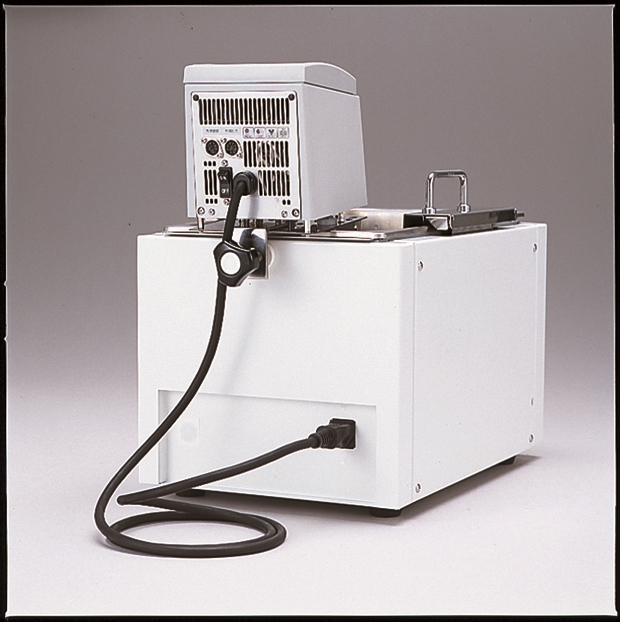

Fitted with service receptacle for “Thermomate”.

Specifications

Item Code

221503

Model

BW101

Shaking type

Reciprocate shaking

Shaking width

10 to 40 mm adjustable

Shaking speed

20 to 160 time / min. (No step speed change)

Operating temperature range

Room temperature + 5 to 80 ° C (with Immersion Type Constant Temperature Devices BF)

Material

Water bath：Stainless steel

Shaking speed control system

Feed back phase control

Shaking speed display system

Digital

Additional function

Service receptacle AC100V, 12A for BF201/401/501

Usable fluid

Water only

Drain type

Natural drain

Safety countermeasure

Electric leakage breaker, Motor overheat prevention (Automatic recovery type thermal protector)

Accessory

Shaking Rack

Number of containers stored

Shaking Rack　Test tube（Φ15）　60pcs.　Erlenmeyer flask（50ml）　10pcs

Internal dimensions（W×D×H mm）

230×390×150mm

External dimensions（W×D×H mm）

295×445×285mm

Remarks(dimensions)

Tank capacity approx.12L

Power Source

AC220V6ASingle phase with step-down transformer, with BF series

Weight

28kg

Catalog

Shaking Water Bath
