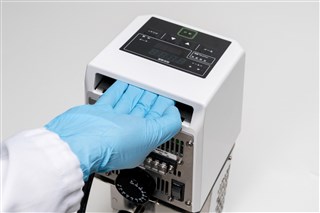

Immersion Constant Temperature Device

Immersion Constant Temperature Device(BF201)

Item Code：221808

Model：BF201

Power Source：AC220V5ASingle-phase with step down transformer

Origin：Japan

Product Summary

Multifucntional Constant Temperature Device

Features

Immersion Type Water Bath’s Temp. Controller.

Various Functions from "Fixed Temp. Operation" to "Programmable Operation".

Data Output, External Communication, etc. are available as Option.

Testing Bath BY100 (Polypropylene, for water) is included as standard.

Specifications

Item Code

221808

Model

BF201

Temp. Setting Range

-20.0 to 90deg.C

Operating temperature range

Room Temp. +5 to 80deg.C

Temp. Control Accuracy

±0.05/0.1deg.C(at37/80deg.C)

Stirrer

Propeller Stirring

Heater

Stainless Pipe Heater　1.0KW

Temp. Control System

PID Control by Micro Computer

Temp. Setting

Digital Setting by Key

Temp. Display

Digital Display by Green LED　Min. Digit Indication: 0.1deg.C　Setting Temp./ Measured Temp. Changeable

Operating Function

Fixed Operation

Additional Function

Temp. Pre-setting(Memory/Recall 10 Temp.)

Heater Circuit Control

Triac Zero-cross Type

Sensor

Platinum resistance temperature detector (Pt100Ω)

Safety Countermeasure

Shelf Diagnosis Function (Automatic Overheat Prevention, Abnormal Temp. Sensor, Heater, Triac, Relay), Circuit Protector, Float Type Empty Boiling Preventor, Independent Overheat Prevention Device

Clamp Available Thickness

Max. 35mm

Accessories

Testing Bath Model BY100 (Polypropylene)

External dimensions（W×D×H mm）

140×138×312mm

Power Source

AC220V5ASingle-phase with step down transformer

Weight

4kg

Catalog

Immersion Constant Temperature Device

Optional Items

Level Controller（(Automatic Water Supplier）(OBF10)

Cooling Pipe(OBJ10)

Bath Cover(OBI11)

External Circulation Nozzle(OBG10)

External Communication Adapter Set(OBF12)
