Immersion Constant Temperature Devices

Immersion Constant Temperature Devices(BF601)

Item Code：221811

Model：BF601

Power Source：AC220V6ASingle-phase with step down transformer

Origin：Japan

Product Summary

Multifunctional Constant Temperature Device

Features

Immersion Type Water Bath’s Temp. Controller.

Various Functions from "Fixed Temp. Operation" to "Programmable Operation".

Data Output, External Communication, etc. are available as Option.

Testing Bath BY100 (Polypropylene, for water) is included as standard.

Specifications

Item Code

221811

Model

BF601

Operating temperature range

Room Temp. +5 to 180deg.C

Temp. Setting Range

0 to 200deg.C

Temp. Control Accuracy

±0.05 / 0.2deg.C (at40/180deg.C)

Stirrer

Propeller Stirring

Heater

Stainless Pipe Heater　1.2kW

Temp. Control System

PID Control by Micro Computer

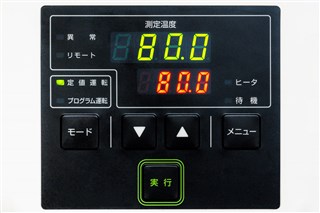

Temp. Setting

Digital Setting by Key, Digital Display by Green LED

Temp. Display

Min. Digit Indication:1deg.C

Timer

1min. to 99h.59min. or 100h. to 999h.

Timer Resolution

1min. or 1h

Operating Function

Fixed Operation: Setting Temp., Quick Auto Stop Program Operation: 1 to 3 Pattern, (Max. 10 Segment Pattern) Repeat Operation: Auto Start

Additional Function

Temp. Pre-setting (Memory/Recall 10 Temp.), Timer (to 49,999h.), Key Lock, Calibration offset, Power failure recovery mode

Heater Circuit Control

Triac Zero-cross Type

Sensor

Platinum resistance temperature detector (Pt100Ω)

Safety Countermeasure

Shelf Diagnosis Function (Automatic Overheat Prevention, Abnormal Temp. Sensor, Heater, Triac, Relay), Circuit Protector, Float Type Empty Boiling Preventor, Independent Overheat Prevention Device

Clamp Available Thickness

Max. 35mm

Accessories

Testing Bath Model BY100 (Polypropylene)

External Output Terminal

‐

External dimensions（W×D×H mm）

140×138×312mm

Power Source

AC220V6ASingle-phase with step down transformer

Weight

4kg

Catalog

Immersion Constant Temperature Device

Optional Items

Level Controller（(Automatic Water Supplier）(OBF10)

Cooling Pipe(OBJ10)

Bath Cover(OBI11)

External Circulation Nozzle(OBG10)

External Communication Adapter Set(OBF12)
