Water Bath (Constant Temp.)

Water Bath (Constant Temp.)(BS601)

Item Code：222066

Model：BS601

Power Source：AC115V/220VSingle phase

Origin：Japan

Product Summary

Standard equipped with Overheat Prevention Device, Electric Leakage Breaker

Features

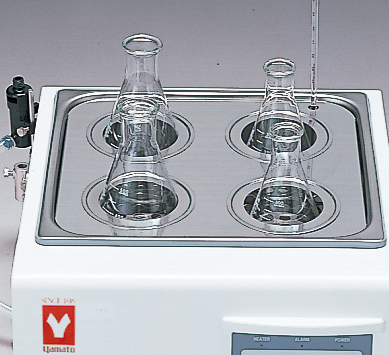

Can use 6pcs. of Condensers simultaneously.

Specifications

Item Code

222066

Model

BS601

Operating temperature range

Room Temp. +5°C to Boiling Temp. (Water)

Temp. Adjustment Accuracy

±3°C (at 70°C )

Temp. Distribution Accuracy

±5°C (at 70°C )

Time to Reach to Constant Max. Temp

Approx. 55min.

Inner Bath

Stainless Steel

Heater

Copper Pipe Heater (Nickel Plated) 1.3kW

Safety Countermeasure

Overheat Prevention System (Liquid Expansion Type, Self Sustaining Relay, Alarm Lamp On) Electric Leakage Breaker with Over CurrentProtection (Power Lamp On at the time System On)

Opening Size, Q’ty

φ115mm・6pcs

Accessory

Ring (Not including BS200), Lid, Container Fixing Clamp, Stand, Bar for Clamp Fixing (Not including BS200), Connector for Stand, Thermometer (-10°C to +110°C Alcohol Type), Bottom Plate, Basket(Only for BS200)

Internal dimensions（W×D×H mm）

790×150×102mm

External dimensions（W×D×H mm）

864×288×215mm

Remarks(dimensions)

Internal Capacity Approx.12L

Power Source

AC115V/220VSingle phase

Weight

16kg
