Water Bath (Precision Constant Temp.)

Water Bath (Precision Constant Temp.)(BK710)

Item Code：221148

Model：BK710

Power Source：AC220V23ASingle phase

Origin：Japan

Product Summary

Constant temperature water tank with glass window. Can handle 27 ~ 144 L

Features

Fixed Temperature Operation.

In addition to BK Series function, BA Seroes adopted controller with program operation function (1 pattern 30 steps or 2 patterns 15 steps).

Tank Capacity : 27L, 42L, 70L, 109L, 144L.

Extremely high degree of temperature adjustment precision achieved by adopting high-precision thermostat and circulation pump.

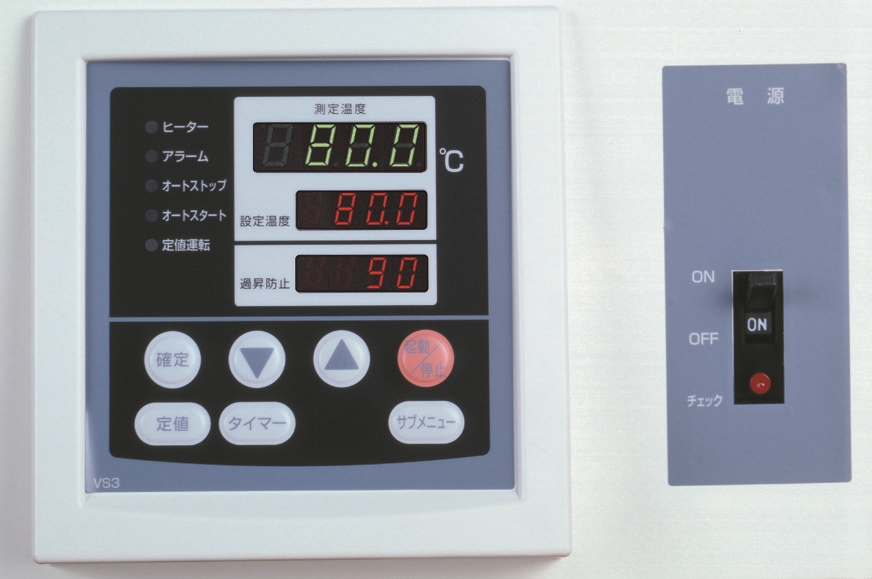

Digital display setting and indicated value of temperature and time.

Equipped with observation window.

Optional items include cooling coil, top cover, mounting rack, and viscosity meter support.

Specifications

Item Code

221148

Model

BK710

Operating temperature range

RT+5~80°C

Interior Material

Stainless steel and glass

Temp. Controller

PID control by microprocessor (BK: Fixed temperature operation)

Sensor

W sensor: Pt resistance thermometer, Pt 100Ω(temp. controller) + K thermocouple (overheat protector)

Temp. Setting / Display Method

Digital setting / display

Overheat Protector

ON / OFF by microprocessor

Heater (SUS316)

4.5kW

Timer

1min.~99hrs. 59min. to 999hrs. 50mins, digital setting, Auto start, auto stop, quick auto stop

Safety Device

Self-diagnotic functions (Heater disconnection, SSR short circuit, Abnormal sensor, over current),Electric leakage breaker, over heat protector

Window Dimensions (W×H mm)

440×265

Shelf Pitch

30mm

Number of Plates

Drain Hose

φ15×20mm

Included Accessories

Shelf plate 1pc., clamp 2pcs., stand 1pc., clamp holder 2pcs., tube connector 1pc., drainage cap 1pc.

Optional

Vessel installing holder, viscometer holder, external circulating pump, cooling coil, top cover of water bath

Temp. Control Accuracy

±0.02~±0.07°C

Temp. Distribution Accuracy

±0.3°C

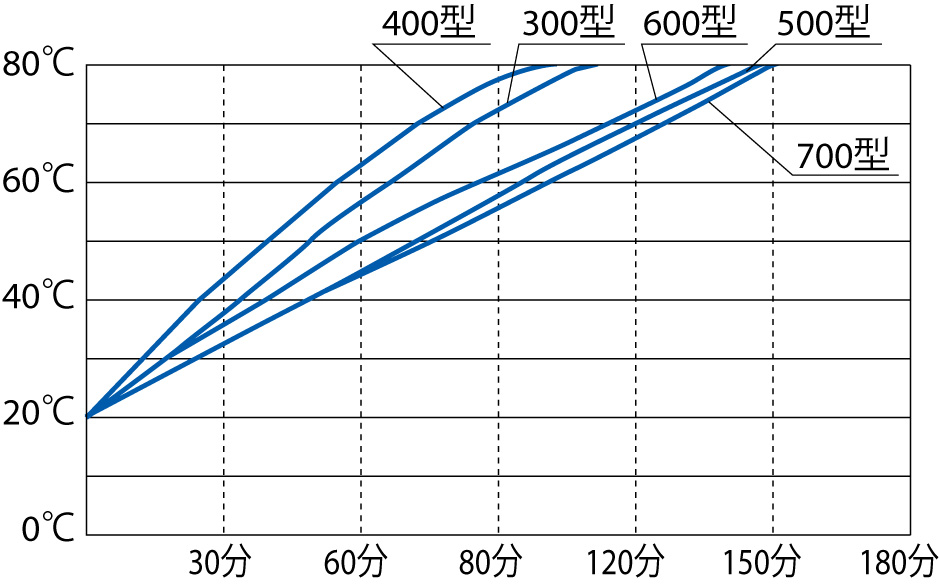

Max. Temp. Reaching Time

Approx.200min.

Stirring System (Magnet Pump)

60W

Stirring Method

Stir by pump

Internal dimensions（W×D×H mm）

640×500×450mm

External dimensions（W×D×H mm）

830×560×517mm

Remarks(dimensions)

Bath Capacity Appox.144L

Power Source

AC220V23ASingle phase

Weight

46kg

Catalog

Water bath

Optional Items

External circulating pump(PT-16)

Top cover()

Trolley with caster()
